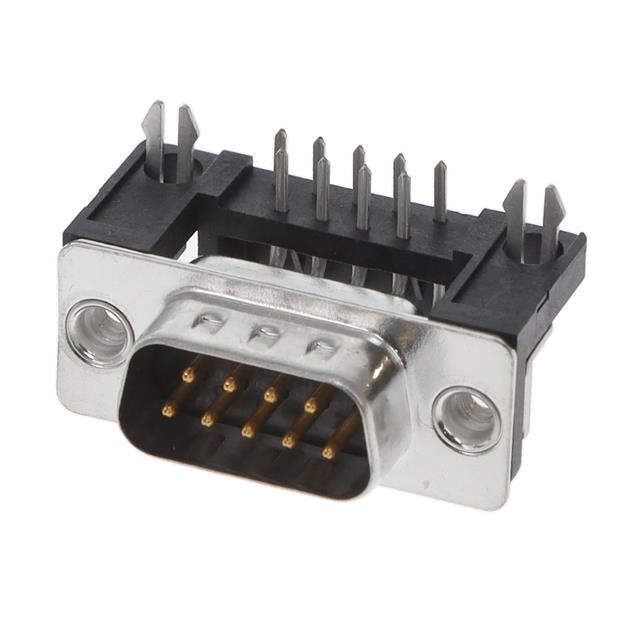

FCE17E09PB490

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 9POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FCE17E09PB490

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 9POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FCE17E09PB490

Backset Spacing	10.29 mm
Backset Spacing	0.405 "
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Filter, Grounding Indents, Board Lock
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder

FCE17E09 Series

Part	Contact Type	Contact Material	Dielectric Material	Connector Style	Number of Positions	Connector Type	Mounting Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Color	Number of Rows	Backset Spacing	Backset Spacing	Features	Material Flammability Rating	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Termination	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish
Amphenol ICC (Commercial Products) FCE17E09SB600	Signal	Phosphor Bronze	Thermoplastic Glass Filled	D-Sub	9	Receptacle Female Sockets	Through Hole Right Angle	5 A	85 °C	-40 °C	Black	2	10.29 mm	0.405 "	Board Lock Filter	UL94 V-0	Housing/Shell (M3)	15 µin	0.38 µm	Solder	DE E	1	Gold
Amphenol ICC (Commercial Products) FCE17E09PM240	Signal	Phosphor Bronze	Thermoplastic Glass Filled	D-Sub	9	Male Pins Plug	Free Hanging (In-Line)	5 A	85 °C	-40 °C	Black	2			Filter Grounding Indents	UL94 V-0	Housing/Shell (Unthreaded)	15 µin	0.38 µm		DE E	1	Gold
Amphenol ICC (Commercial Products) FCE17-E09SM-250	Signal	Phosphor Bronze	Thermoplastic Glass Filled	D-Sub	9	Receptacle Female Sockets	Free Hanging (In-Line)	5 A	85 °C	-40 °C	Black	2			Filter	UL94 V-0	Housing/Shell (Unthreaded)	15 µin	0.38 µm		DE E	1	Gold
Amphenol ICC (Commercial Products) FCE17-E09SE-A50	Signal	Phosphor Bronze	Thermoplastic Glass Filled	D-Sub	9	Receptacle Female Sockets	Through Hole	5 A	85 °C	-40 °C	Black	2			Board Lock Filter	UL94 V-0	4-40 Board Side	15 µin	0.38 µm	Solder	DE E	1	Gold
Amphenol ICC (Commercial Products) FCE17E09SM280	Signal	Phosphor Bronze	Thermoplastic Glass Filled	D-Sub	9	Receptacle Female Sockets	Free Hanging (In-Line)	5 A	85 °C	-40 °C	Black	2			Filter	UL94 V-0	Housing/Shell (Unthreaded)	15 µin	0.38 µm		DE E	1	Gold
Amphenol ICC (Commercial Products) FCE17E09PB490	Signal	Phosphor Bronze	Thermoplastic Glass Filled	D-Sub	9	Male Pins Plug	Through Hole Right Angle	5 A	85 °C	-40 °C	Black	2	10.29 mm	0.405 "	Board Lock Filter Grounding Indents	UL94 V-0	Housing/Shell (4-40)	15 µin	0.38 µm	Solder	DE E	1	Gold
Amphenol ICC (Commercial Products) FCE17E09PE200	Signal	Phosphor Bronze	Thermoplastic Glass Filled	D-Sub	9	Male Pins Plug	Through Hole	5 A	85 °C	-40 °C	Black	2			Filter Grounding Indents	UL94 V-0	Housing/Shell (Unthreaded)	15 µin	0.38 µm	Solder	DE E	1	Gold
Amphenol ICC (Commercial Products) FCE17E09PA200	Signal	Phosphor Bronze	Thermoplastic Glass Filled	D-Sub	9	Male Pins Plug	Through Hole Right Angle	5 A	85 °C	-40 °C	Black	2	8.08 mm	0.318 "	Board Lock Filter Grounding Indents	UL94 V-0	Housing/Shell (Unthreaded)	15 µin	0.38 µm	Solder	DE E	1	Gold
Amphenol ICC (Commercial Products) FCE17E09SA4EB	Signal	Phosphor Bronze	Thermoplastic Glass Filled	D-Sub	9	Receptacle Female Sockets	Through Hole Right Angle	5 A	85 °C	-40 °C	Black	2	8.08 mm	0.318 "	Filter Mounting Brackets	UL94 V-0	Housing/Shell (4-40)	15 µin	0.38 µm	Solder	DE E	1	Gold
Amphenol ICC (Commercial Products) FCE17E09SA61B	Signal	Phosphor Bronze	Thermoplastic Glass Filled	D-Sub	9	Receptacle Female Sockets	Through Hole Right Angle	5 A	85 °C	-40 °C	Black	2	8.08 mm	0.318 "	Filter Mounting Brackets	UL94 V-0	Housing/Shell (M3)	15 µin	0.38 µm	Solder	DE E	1	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 10.33
		10	$ 9.30
		25	$ 8.76
		50	$ 8.54
		100	$ 8.31
		250	$ 7.41
		500	$ 6.96
		1000	$ 6.16

Description

General part information

FCE17E09 Series

9 Position D-Sub Plug, Male Pins Connector
