CONN D-SUB RCPT 9POS VERT SLDR

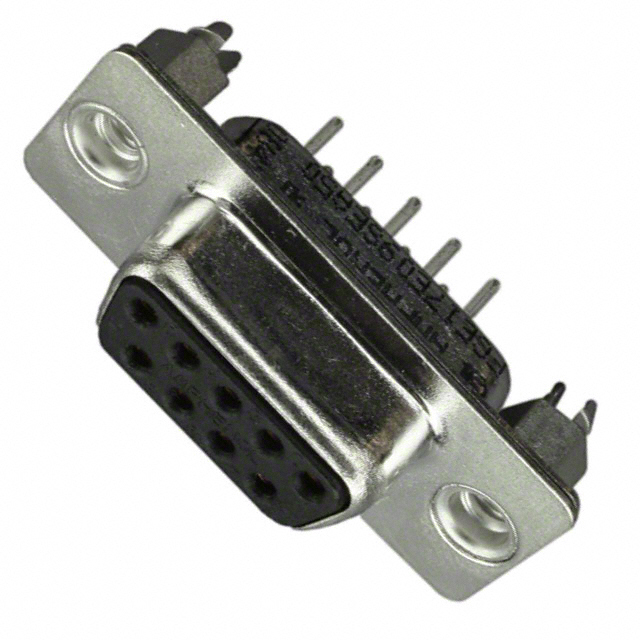

FCE17-E09SE-A50

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 9POS VERT SLDR

Description Specifications Series Pricing CAD Documents

Description

General part information

FCE17E09 Series

9 Position D-Sub Receptacle, Female Sockets Connector

Technical Specifications

Parameters and characteristics for this part

Specification	FCE17-E09SE-A50

Color	Black
Connector Layout	DE, E
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating	5 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Board Lock, Filter
Finish	Tin Plated
Flange Feature	Board Side (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Shell Material	Steel
Shell Size	1
Termination	Solder

FCE17E09 Series

Part	Flange Feature	Connector Style	Termination	Mounting Type	Current Rating	Contact Finish	Contact Type	Finish	Shell Material	Contact Finish Thickness	Connector Type	Number of Rows	Number of Positions	Material Flammability Rating	Shell Size	Connector Layout	Features	Backset Spacing	Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Color	Housing Color	Includes Total Count	Includes	Convert To (Adapter End) Pin Count	Convert To (Adapter End)	Convert From (Adapter End) Pin Count	Convert From (Adapter End) Type	Convert From (Adapter End) Pin Gender
Amphenol ICC (Commercial Products) FCE17E09SB600	Housing Shell (M3)	D-Sub	Solder	Right Angle Through Hole	5 A	Gold	Signal	Tin Plated	Steel	15 µin	Female Sockets Receptacle	2	9	UL94 V-0	1	DE E	Board Lock Filter	0.405 in	Phosphor Bronze	-40 °C	85 °C	Glass Filled Thermoplastic	Black
Amphenol ICC (Commercial Products) FCE17E09PM240	Housing Shell (Unthreaded)	D-Sub	Solder Cup	Free Hanging (In-Line)	5 A	Gold	Signal	Tin Plated	Steel	15 µin	Male Pins Plug	2	9	UL94 V-0	1	DE E	Filter Grounding Indents		Phosphor Bronze	-40 °C	85 °C	Glass Filled Thermoplastic	Black
Amphenol ICC (Commercial Products) FCE17-E09SM-250	Housing Shell (Unthreaded)	D-Sub	Solder Cup	Free Hanging (In-Line)	5 A	Gold	Signal	Tin Plated	Steel	15 µin	Female Sockets Receptacle	2	9	UL94 V-0	1	DE E	Filter		Phosphor Bronze	-40 °C	85 °C	Glass Filled Thermoplastic	Black
Amphenol ICC (Commercial Products) FCE17-E09SE-A50	Board Side (4-40)	D-Sub	Solder	Through Hole	5 A	Gold	Signal	Tin Plated	Steel	15 µin	Female Sockets Receptacle	2	9	UL94 V-0	1	DE E	Board Lock Filter		Phosphor Bronze	-40 °C	85 °C	Glass Filled Thermoplastic	Black
Amphenol ICC (Commercial Products) FCE17E09AD2D0		Connector Saver		Free Hanging (In-Line)	5 A	Gold		Tin Plated	Steel	15 µin		2		UL94 V-0			Filter			-40 °C	85 °C			Black	3 pcs	Connector Jack Screws	9 pins	D-Sub Pin Female	9	D-Sub	Male
Amphenol ICC (Commercial Products) FCE17E09SM280	Housing Shell (Unthreaded)	D-Sub	Solder Cup	Free Hanging (In-Line)	5 A	Gold	Signal	Tin Plated	Steel	15 µin	Female Sockets Receptacle	2	9	UL94 V-0	1	DE E	Filter		Phosphor Bronze	-40 °C	85 °C	Glass Filled Thermoplastic	Black
Amphenol ICC (Commercial Products) FCE17E09PB490	Housing Shell (4-40)	D-Sub	Solder	Right Angle Through Hole	5 A	Gold	Signal	Tin Plated	Steel	15 µin	Male Pins Plug	2	9	UL94 V-0	1	DE E	Board Lock Filter Grounding Indents	0.405 in	Phosphor Bronze	-40 °C	85 °C	Glass Filled Thermoplastic	Black
Amphenol ICC (Commercial Products) FCE17E09PE200	Housing Shell (Unthreaded)	D-Sub	Solder	Through Hole	5 A	Gold	Signal	Tin Plated	Steel	15 µin	Male Pins Plug	2	9	UL94 V-0	1	DE E	Filter Grounding Indents		Phosphor Bronze	-40 °C	85 °C	Glass Filled Thermoplastic	Black
Amphenol ICC (Commercial Products) FCE17E09PA200	Housing Shell (Unthreaded)	D-Sub	Solder	Right Angle Through Hole	5 A	Gold	Signal	Tin Plated	Steel	15 µin	Male Pins Plug	2	9	UL94 V-0	1	DE E	Board Lock Filter Grounding Indents	0.318 in	Phosphor Bronze	-40 °C	85 °C	Glass Filled Thermoplastic	Black
Amphenol ICC (Commercial Products) FCE17E09SA4EB	Housing Shell (4-40)	D-Sub	Solder	Right Angle Through Hole	5 A	Gold	Signal	Tin Plated	Steel	15 µin	Female Sockets Receptacle	2	9	UL94 V-0	1	DE E	Filter Mounting Brackets	0.318 in	Phosphor Bronze	-40 °C	85 °C	Glass Filled Thermoplastic	Black
