151210-7422-RB

Active

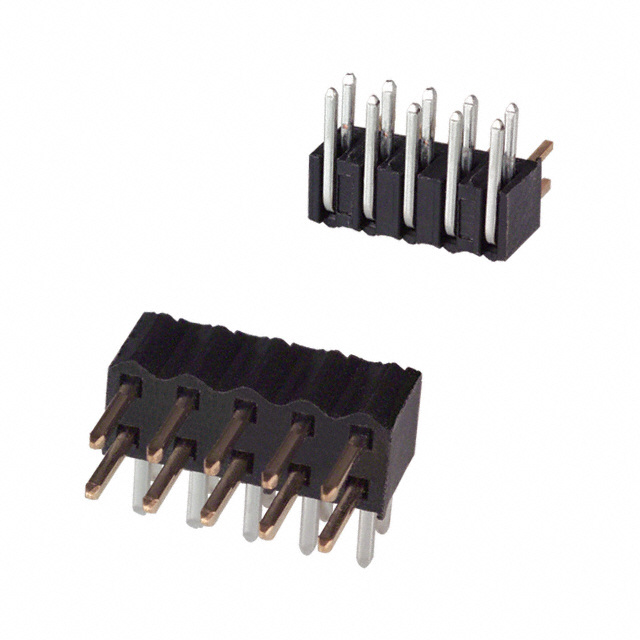

PIN HEADER, PIN HEADER, WIRE-TO-BOARD, 2 MM, 2 ROWS, 10 CONTACTS, THROUGH HOLE RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

151210-7422-RB

Active

PIN HEADER, PIN HEADER, WIRE-TO-BOARD, 2 MM, 2 ROWS, 10 CONTACTS, THROUGH HOLE RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Newark	Pack of 100	1	$ 8.55

Description

General part information

151210 Series

Connector Header Through Hole, Right Angle 10 position 0.079" (2.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

3D Product Image EN

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	151210-7422-RB	151210 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	15 - 30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.38 - 0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Mating	3.86 mm	3.3 - 3.86 mm
Contact Length - Mating	0.152 in	0.13 - 0.152 in
Contact Length - Post	0.118 in	0.118 in
Contact Length - Post	3 mm	3 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Fastening Type	Push-Pull	Push-Pull
Features	-	Pick and Place
Insulation Color	Black	Black
Insulation Height [z]	0.165 in	0.06 - 0.165 in
Insulation Height [z]	4.2 mm	1.52 - 4.2 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Surface Mount, Through Hole, Through Hole, Right Angle
Number of Positions	10	10
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	-	0.307 - 0.329 in
Overall Contact Length	-	7.8 - 8.36 mm
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

151210 Series

CONN HEADER SMD 10POS 2MM

Part	Contact Material	Shrouding	Insulation Height [z]	Insulation Height [z]	Contact Shape	Mounting Type	Contact Finish - Mating	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Contact Finish - Post	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Contact Type	Number of Positions	Termination	Material Flammability Rating	Fastening Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Post	Contact Length - Post	Style	Overall Contact Length	Overall Contact Length	Features
3M 151210-2420-RB	Copper Alloy	Unshrouded	0.06 in	1.52 mm	Square	Surface Mount	Gold	2	105 ░C	-55 °C	30 Áin	0.76 Ám	3.86 mm	0.152 in	0.079 in	2 mm	Header	Tin	All	200 µin	5.08 µm	Black	Male Pin	10	Solder	UL94 V-0	Push-Pull	0.079 in	2 mm
3M 151210-8322-TB	Copper Alloy	Unshrouded	0.06 in	1.52 mm	Square	Through Hole	Gold	2	105 ░C	-55 °C	30 Áin	0.76 Ám	3.3 mm	0.13 in	0.079 in	2 mm	Header	Tin-Lead	All	200 µin	5.08 µm	Black	Male Pin	10	Solder	UL94 V-0	Push-Pull	0.079 in	2 mm	0.118 in	3 mm	Board to Board, Cable	0.307 in	7.8 mm
3M 151210-7422-RB	Copper Alloy	Unshrouded	0.165 in	4.2 mm	Square	Through Hole, Right Angle	Gold	2	105 ░C	-55 °C	30 Áin	0.76 Ám	3.86 mm	0.152 in	0.079 in	2 mm	Header	Tin	All	200 µin	5.08 µm	Black	Male Pin	10	Solder	UL94 V-0	Push-Pull	0.079 in	2 mm	0.118 in	3 mm	Board to Board, Cable
3M 151210-7322-TH	Copper Alloy	Unshrouded	0.165 in	4.2 mm	Square	Through Hole, Right Angle	Gold	2	105 ░C	-55 °C	15 µin	0.38 µm	3.3 mm	0.13 in	0.079 in	2 mm	Header	Tin-Lead	All	200 µin	5.08 µm	Black	Male Pin	10	Solder	UL94 V-0	Push-Pull	0.079 in	2 mm	0.118 in	3 mm	Board to Board, Cable
3M 151210-8422-TB	Copper Alloy	Unshrouded	0.06 in	1.52 mm	Square	Through Hole	Gold	2	105 ░C	-55 °C	30 Áin	0.76 Ám	3.86 mm	0.152 in	0.079 in	2 mm	Header	Tin-Lead	All	200 µin	5.08 µm	Black	Male Pin	10	Solder	UL94 V-0	Push-Pull	0.079 in	2 mm	0.118 in	3 mm	Board to Board, Cable	0.329 in	8.36 mm
3M 151210-2420-TB	Copper Alloy	Unshrouded	0.06 in	1.52 mm	Square	Surface Mount	Gold	2	105 ░C	-55 °C	30 Áin	0.76 Ám	3.86 mm	0.152 in	0.079 in	2 mm	Header	Tin-Lead	All	200 µin	5.08 µm	Black	Male Pin	10	Solder	UL94 V-0	Push-Pull	0.079 in	2 mm
3M 151210-2420-RB-WC	Copper Alloy	Unshrouded	0.06 in	1.52 mm	Square	Surface Mount	Gold	2	105 ░C	-55 °C	30 Áin	0.76 Ám	3.86 mm	0.152 in	0.079 in	2 mm	Header	Tin	All	200 µin	5.08 µm	Black	Male Pin	10	Solder	UL94 V-0	Push-Pull	0.079 in	2 mm						Pick and Place
