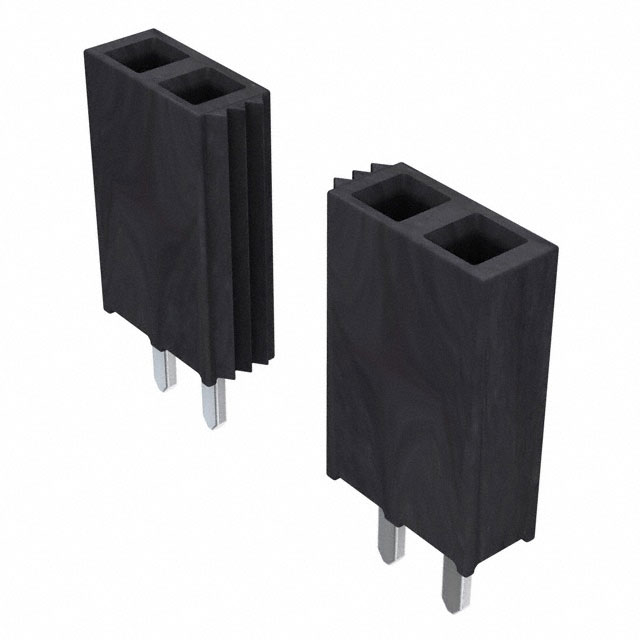

SSW-117-02-S-S
UnknownSamtec Inc.
CONN RCPT 17POS 0.1 GOLD PCB
Deep-Dive with AI
Search across all available documentation for this part.
SSW-117-02-S-S
UnknownSamtec Inc.
CONN RCPT 17POS 0.1 GOLD PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SSW-117-02-S-S |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Length - Post | 4.93 mm |
| Contact Length - Post | 0.194 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Forked |
| Current Rating (Amps) | 4.7 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.335 " |
| Insulation Height | 8.51 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Style | Board to Board, Cable |
| Termination | Solder |
SSW-117 Series
...
| Part | Insulation Material | Contact Length - Post | Contact Length - Post | Material Flammability Rating | Fastening Type | Contact Material | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Number of Positions Loaded | Current Rating (Amps) | Connector Type | Number of Rows | Termination | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Style | Contact Type | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Contact Shape | Contact Finish - Post | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Positions Loaded | Contact Length - Post [x] | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Liquid Crystal Polymer (LCP) | 3.15 mm | 0.124 " | UL94 V-0 | Push-Pull | Phosphor Bronze | Through Hole | 30 Áin | 0.76 Ám | 51 | 34 | 4.7 A | Receptacle | 3 | Solder | 2.54 mm | 0.1 in | Board to Board Cable | Forked | 0.335 " | 8.51 mm | -55 °C | 125 °C | Square | Tin | Black | 0.1 in | 2.54 mm | Gold | |||||
Samtec Inc. | Liquid Crystal Polymer (LCP) | 2.64 mm | 0.104 in | UL94 V-0 | Push-Pull | Phosphor Bronze | Through Hole | 30 Áin | 0.76 Ám | 34 | 33 | 4.7 A | Receptacle | 2 | Solder | 2.54 mm | 0.1 in | Board to Board Cable | Forked | 0.335 " | 8.51 mm | -55 °C | 125 °C | Square | Tin | Black | 0.1 in | 2.54 mm | Gold | |||||
Samtec Inc. | Liquid Crystal Polymer (LCP) | 3.15 mm | 0.124 " | UL94 V-0 | Push-Pull | Phosphor Bronze | Through Hole | 20 µin | 0.51 µm | 34 | 4.7 A | Receptacle | 2 | Kinked Pin Solder | 2.54 mm | 0.1 in | Board to Board Cable | Forked | 0.335 " | 8.51 mm | -55 °C | 125 °C | Square | Gold | Black | 0.1 in | 2.54 mm | Gold | 3 µin | 0.076 µm | All | |||
Samtec Inc. | Liquid Crystal Polymer (LCP) | 2.64 mm | 0.104 in | UL94 V-0 | Push-Pull | Phosphor Bronze | Through Hole | 20 µin | 0.51 µm | 51 | 4.7 A | Receptacle | 3 | Solder | 2.54 mm | 0.1 in | Board to Board Cable | Forked | 0.335 " | 8.51 mm | -55 °C | 125 °C | Square | Gold | Black | 0.1 in | 2.54 mm | Gold | 3 µin | 0.076 µm | All | |||
Samtec Inc. | Liquid Crystal Polymer (LCP) | 4.93 mm | 0.194 in | UL94 V-0 | Push-Pull | Phosphor Bronze | Through Hole | 30 Áin | 0.76 Ám | 4.7 A | Receptacle | 1 | Solder | Board to Board Cable | Forked | 0.335 " | 8.51 mm | -55 °C | 125 °C | Square | Tin | Black | 0.1 in | 2.54 mm | Gold | All | ||||||||
Samtec Inc. | Liquid Crystal Polymer (LCP) | UL94 V-0 | Push-Pull | Phosphor Bronze | Through Hole Right Angle | 10 çin | 0.25 çm | 34 | 4.7 A | Receptacle | 2 | Solder | 2.54 mm | 0.1 in | Board to Board Cable | Forked | 0.195 in | 4.95 mm | -55 °C | 125 °C | Square | Tin | Black | 0.1 in | 2.54 mm | Gold | All | 7.62 mm | 0.3 " | |||||
Samtec Inc. | Liquid Crystal Polymer (LCP) | UL94 V-0 | Push-Pull | Phosphor Bronze | Through Hole | 3 µin | 0.076 µm | 4.7 A | Receptacle | 1 | Solder | Board to Board Cable | Forked | 0.335 " | 8.51 mm | -55 °C | 125 °C | Square | Tin | Black | 0.1 in | 2.54 mm | Gold | All | 14.83 mm | 0.584 " | ||||||||
Samtec Inc. | Liquid Crystal Polymer (LCP) | 2.64 mm | 0.104 in | UL94 V-0 | Push-Pull | Phosphor Bronze | Through Hole | 20 µin | 0.51 µm | 34 | 4.7 A | Receptacle | 2 | Solder | 2.54 mm | 0.1 in | Board to Board Cable | Forked | 0.335 " | 8.51 mm | -55 °C | 125 °C | Square | Gold | Black | 0.1 in | 2.54 mm | Gold | 3 µin | 0.076 µm | All | |||
Samtec Inc. | Liquid Crystal Polymer (LCP) | 2.64 mm | 0.104 in | UL94 V-0 | Push-Pull | Phosphor Bronze | Through Hole | 30 Áin | 0.76 Ám | 34 | 4.7 A | Receptacle | 2 | Solder | 2.54 mm | 0.1 in | Board to Board Cable | Forked | 0.335 " | 8.51 mm | -55 °C | 125 °C | Square | Tin | Black | 0.1 in | 2.54 mm | Gold | All | |||||
Samtec Inc. | Liquid Crystal Polymer (LCP) | 10 mm | 0.394 in | UL94 V-0 | Push-Pull | Phosphor Bronze | Through Hole | 30 Áin | 0.76 Ám | 34 | 33 | 4.7 A | Receptacle | 2 | Solder | 2.54 mm | 0.1 in | Board to Board Cable | Forked | 0.335 " | 8.51 mm | -55 °C | 125 °C | Square | Tin | Black | 0.1 in | 2.54 mm | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.83 | |
Description
General part information
SSW-117 Series
17 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
