STGIB10CH60TS-LZ
ActiveSTMicroelectronics
IC: DRIVER; IGBT THREE-PHASE BRIDGE,NTC THERMISTOR; SLLIMM 2ND
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
STGIB10CH60TS-LZ
ActiveSTMicroelectronics
IC: DRIVER; IGBT THREE-PHASE BRIDGE,NTC THERMISTOR; SLLIMM 2ND
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | STGIB10CH60TS-LZ |
|---|---|
| Configuration | 3 Phase Inverter |
| Current | 15 A |
| Mounting Type | Through Hole |
| Package / Case | 26-PowerDIP Module |
| Package / Case [x] | 1.146 in |
| Package / Case [y] | 29.1 mm |
| Type | IGBT |
| Voltage | 600 V |
| Voltage - Isolation | 1500 VAC |
STGIB10 Series
| Part | Mounting Type | Package / Case | Package / Case | Voltage - Isolation | Configuration | Voltage | Type | Current | Package / Case | Package / Case [x] | Package / Case [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics | Through Hole | 1.327 in 33.7 mm | 26-PowerDIP Module | 1500 VAC | 3 Phase Inverter | 600 V | IGBT | 15 A | |||
STMicroelectronics | Through Hole | 1.154 in | 26-PowerDIP Module | 1500 VAC | 3 Phase Inverter | 600 V | IGBT | 15 A | 29.3 mm | 1.146 in | 29.1 mm |
STMicroelectronics | Through Hole | 26-PowerDIP Module | 1600 Vrms | 3 Phase Inverter | 600 V | IGBT | 15 A | 1.146 in | 29.1 mm | ||
STMicroelectronics | Through Hole | 26-PowerDIP Module | 1500 VAC | 3 Phase Inverter | 600 V | IGBT | 15 A | 1.146 in | 29.1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
STGIB10 Series

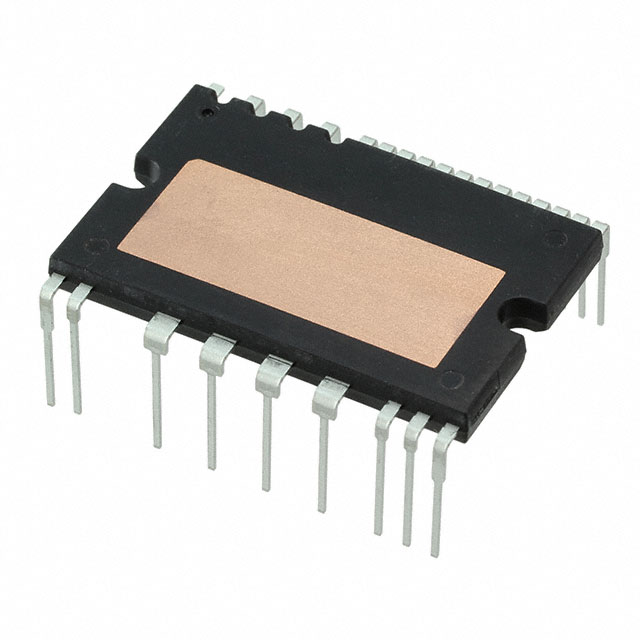

Power Driver Module IGBT 3 Phase Inverter 600 V 15 A 26-PowerDIP Module (1.146", 29.10mm)
