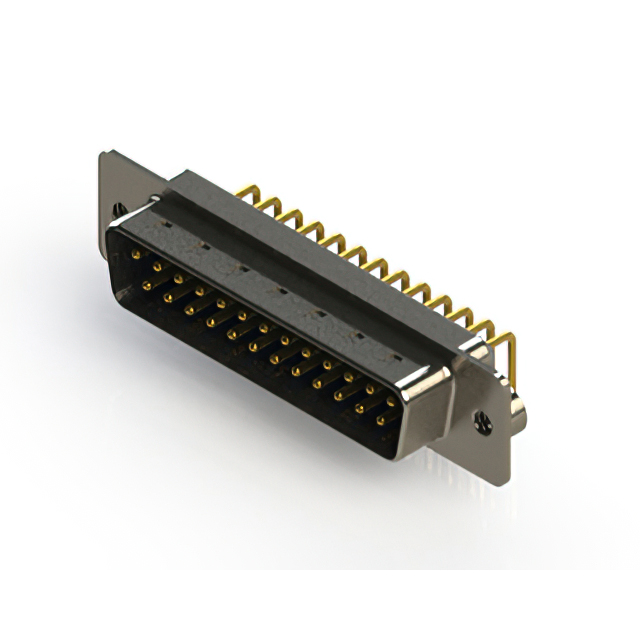

621-M25-360-LN2
ActiveEDAC Inc.
621M SERIES RIGHT ANGLE D-SUB PL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 621-M25-360-LN2 |
|---|---|
| Backset Spacing | 0.283 in |
| Backset Spacing | 7.2 mm |
| Color | Blue |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA6T), Nylon 6T |
| Features | Grounding Indents, Shielded |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
| Termination | Solder |
621-M25 Series
...
| Part | Current Rating (Amps) | Termination | Material Flammability Rating | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Type | Backset Spacing | Backset Spacing | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Connector Style | Shell Material, Finish | Features | Connector Type | Contact Material | Dielectric Material | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Color | Number of Rows | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 5 A | Solder | UL94 V-0 | B DB | 3 | Signal | 0.283 in | 7.2 mm | Board Edge Right Angle Through Hole | -55 °C | 125 °C | Gold | D-Sub | Nickel Plated Steel | Board Lock Mounting Brackets Shielded | Male Pins Plug | Copper Alloy | Polyamide (PA6T) Nylon 6T | 0.76 Ám | 30 Áin | Housing/Shell (4-40) | White | 2 | |
EDAC Inc. | 5 A | Solder | UL94 V-0 | B DB | 3 | Signal | 0.283 in | 7.2 mm | Board Edge Right Angle Through Hole | -55 °C | 125 °C | Gold | D-Sub | Board Lock Grounding Indents Mounting Brackets Shielded | Male Pins Plug | Copper Alloy | Polyamide (PA6T) Nylon 6T | 4-40 | Black | 2 | Flash | |||
EDAC Inc. | 5 A | Solder | UL94 V-0 | B DB | 3 | Signal | 0.283 in | 7.2 mm | Board Edge Right Angle Through Hole | -55 °C | 125 °C | Gold | D-Sub | Nickel Plated Steel | Board Lock Grounding Indents Mounting Brackets Shielded | Male Pins Plug | Copper Alloy | Polyamide (PA6T) Nylon 6T | 0.76 Ám | 30 Áin | 4-40 | Green | 2 | |
EDAC Inc. | 5 A | Solder | UL94 V-0 | B DB | 3 | Signal | 0.283 in | 7.2 mm | Board Edge Right Angle Through Hole | -55 °C | 125 °C | Gold | D-Sub | Board Lock Mounting Brackets Shielded | Male Pins Plug | Copper Alloy | Polyamide (PA6T) Nylon 6T | Housing/Shell (4-40) | White | 2 | Flash | |||
EDAC Inc. | 5 A | Solder | UL94 V-0 | B DB | 3 | Signal | 0.283 in | 7.2 mm | Board Edge Right Angle Through Hole | -55 °C | 125 °C | Gold | D-Sub | Nickel Plated Steel | Grounding Indents Shielded | Male Pins Plug | Copper Alloy | Polyamide (PA6T) Nylon 6T | 0.38 µm | 15 µin | Housing/Shell (Unthreaded) | Blue | 2 | |
EDAC Inc. | 5 A | Solder | UL94 V-0 | B DB | 3 | Signal | 0.283 in | 7.2 mm | Board Edge Right Angle Through Hole | -55 °C | 125 °C | Gold | D-Sub | Nickel Plated Steel | Board Lock Mounting Brackets Shielded | Male Pins Plug | Copper Alloy | Polyamide (PA6T) Nylon 6T | 0.38 µm | 15 µin | Housing/Shell (4-40) | Blue | 2 | |
EDAC Inc. | 5 A | Solder | UL94 V-0 | B DB | 3 | Signal | 0.283 in | 7.2 mm | Board Edge Right Angle Through Hole | -55 °C | 125 °C | Gold | D-Sub | Nickel Plated Steel | Grounding Indents Shielded | Male Pins Plug | Copper Alloy | Polyamide (PA6T) Nylon 6T | 0.38 µm | 15 µin | Housing/Shell (4-40) | Blue | 2 | |
EDAC Inc. | 5 A | Solder | UL94 V-0 | B DB | 3 | Signal | 0.283 in | 7.2 mm | Board Edge Right Angle Through Hole | -55 °C | 125 °C | Gold | D-Sub | Board Lock Grounding Indents Mounting Brackets Shielded | Male Pins Plug | Copper Alloy | Polyamide (PA6T) Nylon 6T | 0.76 Ám | 30 Áin | Housing/Shell (4-40) | Blue | 2 | ||
EDAC Inc. | 5 A | Solder | UL94 V-0 | B DB | 3 | Signal | 0.283 in | 7.2 mm | Board Edge Right Angle Through Hole | -55 °C | 125 °C | Gold | D-Sub | Nickel Plated Steel | Board Lock Grounding Indents Mounting Brackets Shielded | Male Pins Plug | Copper Alloy | Polyamide (PA6T) Nylon 6T | 0.76 Ám | 30 Áin | Housing/Shell (4-40) | Black | 2 | |
EDAC Inc. | 5 A | Solder | UL94 V-0 | B DB | 3 | Signal | 0.283 in | 7.2 mm | Board Edge Right Angle Through Hole | -55 °C | 125 °C | Gold | D-Sub | Grounding Indents Shielded | Male Pins Plug | Copper Alloy | Polyamide (PA6T) Nylon 6T | 0.76 Ám | 30 Áin | Housing/Shell (4-40) | White | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 300 | $ 8.61 | |
Description
General part information
621-M25 Series
25 Position D-Sub Plug, Male Pins Connector
