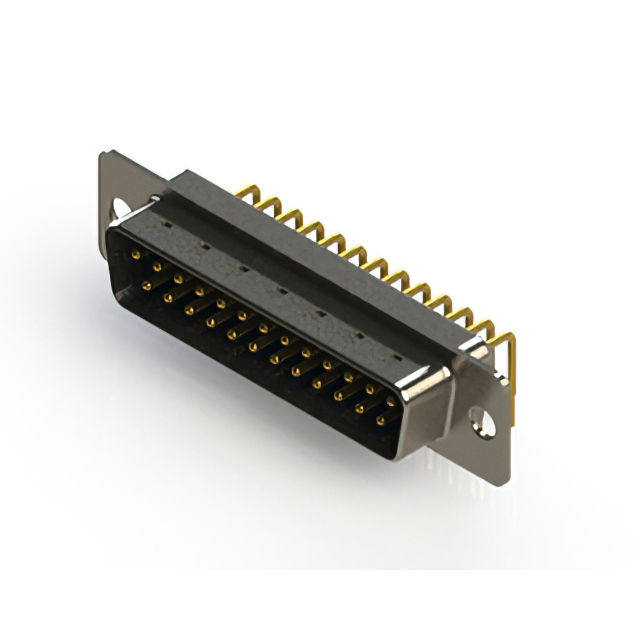

Specification	621-M25-360-LN1

Backset Spacing	0.283 in
Color	Blue
Connector Layout	DB, B
Connector Style	D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Form	Machined
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating	5 A
Dielectric Material	Nylon 6T, Polyamide (PA6T)
Features	Shielded, Grounding Indents
Finish	Nickel Plated
Flange Feature	Shell (Unthreaded), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Through Hole, Board Edge
Number of Positions	25
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	3
Termination	Solder

621-M25 Series

...

Part	Termination	Current Rating	Shell Material	Finish	Contact Finish Thickness	Features	Material Flammability Rating	Connector Style	Number of Rows	Mounting Type	Contact Type	Contact Finish	Number of Positions	Backset Spacing	Shell Size	Connector Layout	Connector Type	Flange Feature	Contact Material	Color	Operating Temperature (Max)	Operating Temperature (Min)	Contact Form	Dielectric Material	Contact Finish Thickness (string set options)	Contact Finish Thickness
EDAC Inc. 621-M25-360-GN3	Solder	5 A	Steel	Nickel Plated	15 µin	Board Lock Grounding Indents Mounting Brackets Shielded	UL94 V-0	D-Sub	2	Board Edge Right Angle Through Hole	Signal	Gold	25	0.283 in	3	B DB	Male Pins Plug	Housing Shell (4-40)	Copper Alloy	Green	125 °C	-55 °C	Machined	Nylon 6T Polyamide (PA6T)
EDAC Inc. 621-M25-660-WN6	Solder	5 A	Steel	Nickel Plated	30 µin	Board Lock Mounting Brackets Shielded	UL94 V-0	D-Sub	2	Board Edge Right Angle Through Hole	Signal	Gold	25	0.283 in	3	B DB	Male Pins Plug	Housing Shell (4-40)	Copper Alloy	White	125 °C	-55 °C	Machined	Nylon 6T Polyamide (PA6T)
EDAC Inc. 621-M25-260-BT5	Solder	5 A	Steel	Tin Plated	0	Board Lock Grounding Indents Mounting Brackets Shielded	UL94 V-0	D-Sub	2	Board Edge Right Angle Through Hole	Signal	Gold	25	0.283 in	3	B DB	Male Pins Plug	Mating Side (4-40)	Copper Alloy	Black	125 °C	-55 °C	Machined	Nylon 6T Polyamide (PA6T)	Flash	Flash
EDAC Inc. 621-M25-660-GN5	Solder	5 A	Steel	Nickel Plated	30 µin	Board Lock Grounding Indents Mounting Brackets Shielded	UL94 V-0	D-Sub	2	Board Edge Right Angle Through Hole	Signal	Gold	25	0.283 in	3	B DB	Male Pins Plug	Mating Side (4-40)	Copper Alloy	Green	125 °C	-55 °C	Machined	Nylon 6T Polyamide (PA6T)
EDAC Inc. 621-M25-260-WT6	Solder	5 A	Steel	Tin Plated	0	Board Lock Mounting Brackets Shielded	UL94 V-0	D-Sub	2	Board Edge Right Angle Through Hole	Signal	Gold	25	0.283 in	3	B DB	Male Pins Plug	Housing Shell (4-40)	Copper Alloy	White	125 °C	-55 °C	Machined	Nylon 6T Polyamide (PA6T)	Flash	Flash
EDAC Inc. 621-M25-360-LN1	Solder	5 A	Steel	Nickel Plated	15 µin	Grounding Indents Shielded	UL94 V-0	D-Sub	2	Board Edge Right Angle Through Hole	Signal	Gold	25	0.283 in	3	B DB	Male Pins Plug	Housing Shell (Unthreaded)	Copper Alloy	Blue	125 °C	-55 °C	Machined	Nylon 6T Polyamide (PA6T)
EDAC Inc. 621-M25-360-LN6	Solder	5 A	Steel	Nickel Plated	15 µin	Board Lock Mounting Brackets Shielded	UL94 V-0	D-Sub	2	Board Edge Right Angle Through Hole	Signal	Gold	25	0.283 in	3	B DB	Male Pins Plug	Housing Shell (4-40)	Copper Alloy	Blue	125 °C	-55 °C	Machined	Nylon 6T Polyamide (PA6T)
EDAC Inc. 621-M25-360-LN2	Solder	5 A	Steel	Nickel Plated	15 µin	Grounding Indents Shielded	UL94 V-0	D-Sub	2	Board Edge Right Angle Through Hole	Signal	Gold	25	0.283 in	3	B DB	Male Pins Plug	Housing Shell (4-40)	Copper Alloy	Blue	125 °C	-55 °C	Machined	Nylon 6T Polyamide (PA6T)
EDAC Inc. 621-M25-660-LT3	Solder	5 A	Steel	Tin Plated	30 µin	Board Lock Grounding Indents Mounting Brackets Shielded	UL94 V-0	D-Sub	2	Board Edge Right Angle Through Hole	Signal	Gold	25	0.283 in	3	B DB	Male Pins Plug	Housing Shell (4-40)	Copper Alloy	Blue	125 °C	-55 °C	Machined	Nylon 6T Polyamide (PA6T)
EDAC Inc. 621-M25-660-BN3	Solder	5 A	Steel	Nickel Plated	30 µin	Board Lock Grounding Indents Mounting Brackets Shielded	UL94 V-0	D-Sub	2	Board Edge Right Angle Through Hole	Signal	Gold	25	0.283 in	3	B DB	Male Pins Plug	Housing Shell (4-40)	Copper Alloy	Black	125 °C	-55 °C	Machined	Nylon 6T Polyamide (PA6T)
