ALS30A152KF450

Active

KEMET

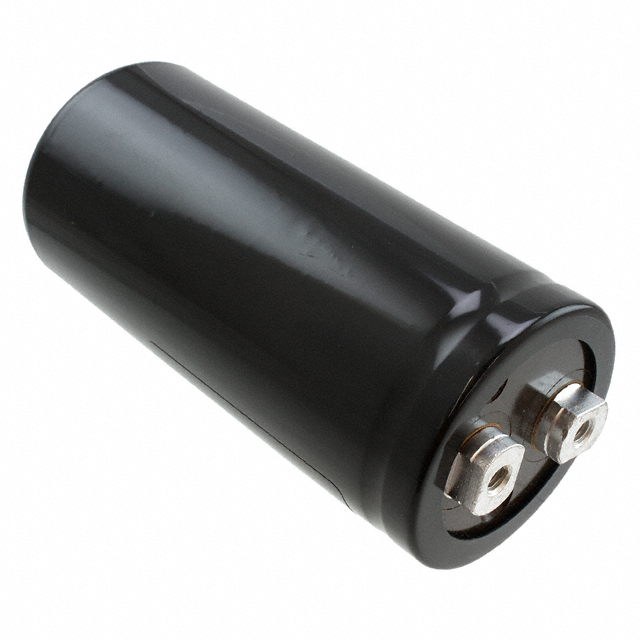

CAP ALUM 1500UF 20% 450V SCREW

ALS30A152KF450

Active

KEMET

CAP ALUM 1500UF 20% 450V SCREW

Description Specifications Series Pricing CAD Documents

Description

General part information

ALS30A Series

1500 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 93mOhm @ 100Hz 18000 Hrs @ 85°C

Technical Specifications

Parameters and characteristics for this part

Specification	ALS30A152KF450

Applications	General Purpose
Capacitance	1500 µF
ESR (Equivalent Series Resistance)	93 mOhm
Height - Seated (Max)	4.213 in
Impedance	65 mOhms
Lead Spacing	0.874 in
Lifetime	18000 Hrs
Mounting Type	Chassis Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can - Screw Terminals, Radial
Polarization	Polar
Size / Dimension Diameter	2.008 in
Tolerance	20 %
Voltage - Rated	450 V

ALS30A Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Lead Spacing	Voltage - Rated	Package / Case	Ripple Current	Mounting Type	Capacitance	Height - Seated (Max)	Applications	Polarization	Size / Dimension Diameter	ESR (Equivalent Series Resistance)	Lifetime	Tolerance	Impedance
KEMET ALS30A472DA063	-40 °C	85 °C	0.504 in	63 V	Can - Screw Terminals Radial	6.7 A 7.4 A	Chassis Mount	4700 µF	2.047 in	General Purpose	Polar	1.417 in	36 mOhm	11000 Hrs	20 %	28 mOhms
KEMET ALS30A222KE250	-40 °C	85 °C	0.874 in	250 V	Can - Screw Terminals Radial	7.7 A 9.1 A	Chassis Mount	2200 ĄF	3.228 in	General Purpose	Polar	2.008 in	69 mOhm	18000 Hrs	20 %	55 mOhm
KEMET ALS30A152KF450	-40 °C	85 °C	0.874 in	450 V	Can - Screw Terminals Radial		Chassis Mount	1500 µF	4.213 in	General Purpose	Polar	2.008 in	93 mOhm	18000 Hrs	20 %	65 mOhms
KEMET ALS30A473DF025	-40 °C	85 °C	0.504 in	25 VAC	Can - Screw Terminals Radial	16.6 A 17.4 A	Chassis Mount	47000 µF	4.134 in	General Purpose	Polar	1.417 in	9 mOhm	11000 Hrs	20 %	7 mOhm
KEMET ALS30A222KF400	-40 °C	85 °C	0.874 in	400 V	Can - Screw Terminals Radial	8.4 A 13.5 A	Chassis Mount	2200 ĄF	4.213 in	General Purpose	Polar	2.008 in	78 mOhm	18000 Hrs	20 %	56 mOhm
KEMET ALS30A102DE250	-40 °C	85 °C	0.504 in	250 V	Can - Screw Terminals Radial	5 A 7.4 A	Chassis Mount	1000 µF	3.228 in	General Purpose	Polar	1.417 in	117 mOhm	11000 Hrs	20 %	89 mOhm
KEMET ALS30A152NF500	-40 °C	85 °C	1.252 in	500 V	Can - Screw Terminals Radial	10.6 A 17 A	Chassis Mount	1500 µF	4.213 in	General Purpose	Polar	3.032 in	120 mOhm	20000 Hrs	20 %	65 mOhms
KEMET ALS30A332NF400	-40 °C	85 °C	1.252 in	400 V	Can - Screw Terminals Radial	13.4 A 21.3 A	Chassis Mount	3300 µF	4.134 in	General Purpose	Polar	3.031 in	49 mOhm	20000 Hrs	20 %	36 mOhms
KEMET ALS30A102KE450	-40 °C	85 °C	0.874 in	450 V	Can - Screw Terminals Radial		Chassis Mount	1000 µF	3.307 in	General Purpose	Polar	2.008 in	118 mOhm	18000 Hrs	20 %	79 mOhm
KEMET ALS30A332NF450	-40 °C	85 °C	1.252 in	450 V	Can - Screw Terminals Radial	13.8 A 21.2 A	Chassis Mount	3300 µF	4.213 in	General Purpose	Polar	3.032 in	40 mOhm	20000 Hrs	20 %	30 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

ALS30A152KF450 Spec

ALS30A152KF450 | Datasheet
