MSP430F233TRGCT

Active

Texas Instruments

16 MHZ MCU WITH 8KB FLASH, 1KB SRAM, 12-BIT ADC, COMPARATOR, I2C/SPI/UART, HW MULTIPLIER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsUsing the TPS3619 With MSP430 Microcontrollers (Rev. B)Migrating from the MSP430F2xx Family to the MSP430FR57xx Family (Rev. A)+33

MSP430F233TRGCT

Active

Texas Instruments

16 MHZ MCU WITH 8KB FLASH, 1KB SRAM, 12-BIT ADC, COMPARATOR, I2C/SPI/UART, HW MULTIPLIER

Deep-Dive with AI

DocumentsUsing the TPS3619 With MSP430 Microcontrollers (Rev. B)Migrating from the MSP430F2xx Family to the MSP430FR57xx Family (Rev. A)+33

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MSP430F233TRGCT	MSP430F233 Series

Connectivity	IrDA, LINbus, SCI, UART/USART, I2C, SPI	IrDA, LINbus, SCI, UART/USART, I2C, SPI
Core Processor	MSP430 CPU16	MSP430 CPU16
Core Size	16-Bit	16-Bit
Data Converters	A/D 8x12b	A/D 8x12b
Mounting Type	Surface Mount	Surface Mount
Number of I/O	48	48
Operating Temperature [Max]	105 °C	105 °C
Operating Temperature [Min]	-40 °C	-40 °C
Oscillator Type	Internal	Internal

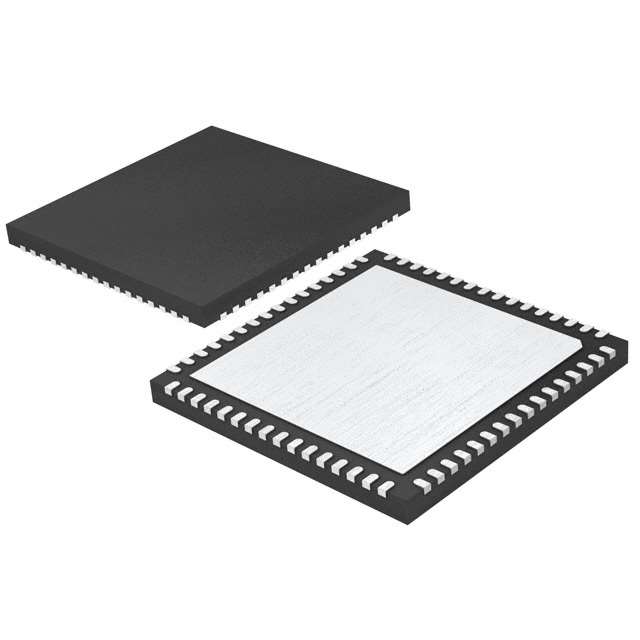

Package / Case	64-VFQFN Exposed Pad	64-VFQFN Exposed Pad, 64-LQFP
Program Memory Size	8 KB	8 KB
Program Memory Type	FLASH	FLASH
RAM Size	1K x 8	1K x 8
Speed	16 MHz	16 MHz
Supplier Device Package	64-VQFN (9x9)	64-VQFN (9x9), 64-LQFP (10x10)
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	1.8 V	1.8 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 6.35
		10	$ 5.73
		25	$ 5.47
		100	$ 4.75
	Digi-Reel®	1	$ 6.35
		10	$ 5.73
		25	$ 5.47
		100	$ 4.75
	Tape & Reel (TR)	250	$ 4.53
		500	$ 4.13
		1250	$ 3.60
		2500	$ 3.47
Texas Instruments	SMALL T&R	1	$ 4.86
		100	$ 3.96
		250	$ 3.11
		1000	$ 2.64

MSP430F233 Series

16 MHz MCU with 8KB Flash, 1KB SRAM, 12-bit ADC, comparator, I2C/SPI/UART, HW multiplier

Part	Package / Case	Program Memory Type	RAM Size	Data Converters	Program Memory Size	Number of I/O	Oscillator Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Core Processor	Speed	Core Size	Mounting Type	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Connectivity
Texas Instruments MSP430F233TRGCT The Texas Instruments MSP430 family of ultra-low power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The calibrated digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs. The MSP430F23x, MSP430F24x(1), and MSP430F2410 series are microcontroller configurations with two built-in 16-bit timers, a fast 12-bit A/D converter (not MSP430F24x1), a comparator, four (two in MSP430F23x) universal serial communication interface (USCI) modules, and up to 48 I/O pins. The MSP430F24x1 devices are identical to the MSP430F24x devices, with the exception that the ADC12 module is not implemented. The MSP430F23x devices are identical to the MSP430F24x devices, with the exception that a reduced Timer_B, one USCI module, and less RAM are integrated. Typical applications include sensor systems, industrial control applications, and hand-held meters. The Texas Instruments MSP430 family of ultra-low power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The calibrated digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs. The MSP430F23x, MSP430F24x(1), and MSP430F2410 series are microcontroller configurations with two built-in 16-bit timers, a fast 12-bit A/D converter (not MSP430F24x1), a comparator, four (two in MSP430F23x) universal serial communication interface (USCI) modules, and up to 48 I/O pins. The MSP430F24x1 devices are identical to the MSP430F24x devices, with the exception that the ADC12 module is not implemented. The MSP430F23x devices are identical to the MSP430F24x devices, with the exception that a reduced Timer_B, one USCI module, and less RAM are integrated. Typical applications include sensor systems, industrial control applications, and hand-held meters.	64-VFQFN Exposed Pad	FLASH	1K x 8	A/D 8x12b	8 KB	48	Internal	64-VQFN (9x9)	105 °C	-40 °C	MSP430 CPU16	16 MHz	16-Bit	Surface Mount	3.6 V	1.8 V	I2C, IrDA, LINbus, SCI, SPI, UART/USART
Texas Instruments MSP430F233TPMR The Texas Instruments MSP430 family of ultra-low power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The calibrated digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs. The MSP430F23x, MSP430F24x(1), and MSP430F2410 series are microcontroller configurations with two built-in 16-bit timers, a fast 12-bit A/D converter (not MSP430F24x1), a comparator, four (two in MSP430F23x) universal serial communication interface (USCI) modules, and up to 48 I/O pins. The MSP430F24x1 devices are identical to the MSP430F24x devices, with the exception that the ADC12 module is not implemented. The MSP430F23x devices are identical to the MSP430F24x devices, with the exception that a reduced Timer_B, one USCI module, and less RAM are integrated. Typical applications include sensor systems, industrial control applications, and hand-held meters. The Texas Instruments MSP430 family of ultra-low power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The calibrated digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs. The MSP430F23x, MSP430F24x(1), and MSP430F2410 series are microcontroller configurations with two built-in 16-bit timers, a fast 12-bit A/D converter (not MSP430F24x1), a comparator, four (two in MSP430F23x) universal serial communication interface (USCI) modules, and up to 48 I/O pins. The MSP430F24x1 devices are identical to the MSP430F24x devices, with the exception that the ADC12 module is not implemented. The MSP430F23x devices are identical to the MSP430F24x devices, with the exception that a reduced Timer_B, one USCI module, and less RAM are integrated. Typical applications include sensor systems, industrial control applications, and hand-held meters.	64-LQFP	FLASH	1K x 8	A/D 8x12b	8 KB	48	Internal	64-LQFP (10x10)	105 °C	-40 °C	MSP430 CPU16	16 MHz	16-Bit	Surface Mount	3.6 V	1.8 V	I2C, IrDA, LINbus, SCI, SPI, UART/USART
Texas Instruments MSP430F233TPM The Texas Instruments MSP430 family of ultra-low power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The calibrated digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs. The MSP430F23x, MSP430F24x(1), and MSP430F2410 series are microcontroller configurations with two built-in 16-bit timers, a fast 12-bit A/D converter (not MSP430F24x1), a comparator, four (two in MSP430F23x) universal serial communication interface (USCI) modules, and up to 48 I/O pins. The MSP430F24x1 devices are identical to the MSP430F24x devices, with the exception that the ADC12 module is not implemented. The MSP430F23x devices are identical to the MSP430F24x devices, with the exception that a reduced Timer_B, one USCI module, and less RAM are integrated. Typical applications include sensor systems, industrial control applications, and hand-held meters. The Texas Instruments MSP430 family of ultra-low power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The calibrated digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs. The MSP430F23x, MSP430F24x(1), and MSP430F2410 series are microcontroller configurations with two built-in 16-bit timers, a fast 12-bit A/D converter (not MSP430F24x1), a comparator, four (two in MSP430F23x) universal serial communication interface (USCI) modules, and up to 48 I/O pins. The MSP430F24x1 devices are identical to the MSP430F24x devices, with the exception that the ADC12 module is not implemented. The MSP430F23x devices are identical to the MSP430F24x devices, with the exception that a reduced Timer_B, one USCI module, and less RAM are integrated. Typical applications include sensor systems, industrial control applications, and hand-held meters.	64-LQFP	FLASH	1K x 8	A/D 8x12b	8 KB	48	Internal	64-LQFP (10x10)	105 °C	-40 °C	MSP430 CPU16	16 MHz	16-Bit	Surface Mount	3.6 V	1.8 V	I2C, IrDA, LINbus, SCI, SPI, UART/USART

Description

General part information

MSP430F233 Series

The Texas Instruments MSP430 family of ultra-low power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The calibrated digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs.

The MSP430F23x, MSP430F24x(1), and MSP430F2410 series are microcontroller configurations with two built-in 16-bit timers, a fast 12-bit A/D converter (not MSP430F24x1), a comparator, four (two in MSP430F23x) universal serial communication interface (USCI) modules, and up to 48 I/O pins. The MSP430F24x1 devices are identical to the MSP430F24x devices, with the exception that the ADC12 module is not implemented. The MSP430F23x devices are identical to the MSP430F24x devices, with the exception that a reduced Timer_B, one USCI module, and less RAM are integrated.

Typical applications include sensor systems, industrial control applications, and hand-held meters.

Documents

Technical documentation and resources

MSP430F233TRGCT

Deep-Dive with AI

MSP430F233TRGCT

Deep-Dive with AI

Technical Specifications

Pricing

MSP430F233 Series

Description

MSP430F233 Series

Documents

Using the TPS3619 With MSP430 Microcontrollers (Rev. B)

Migrating from the MSP430F2xx Family to the MSP430FR57xx Family (Rev. A)

Interfacing the 3-V MSP430 MCU to 5-V Circuits (Rev. A)

1.8V – 5.5V Input, High-Efficiency DCDC Converter Reference Design for MSP430 (Rev. B)

Implementing An Ultra-Low-Power Keypad Interface With MSP430 MCUs (Rev. A)

Software Coding Techniques for MSP430™ MCUs (Rev. B)

General Oversampling of MSP ADCs for Higher Resolution (Rev. A)

Design Considerations When Using the MSP430 Graphics Library

MSP430F23x, MSP430F24x(1), MSP430F2410 Mixed Signal Microcontroller datasheet (Rev. I)

MSP430 MCUs Development Guide Book (Rev. A)

MSP430F233 Microcontroller Errata (Rev. P)

MSP430F2xx, MSP430G2xx Family User's Guide (Rev. K)

Programming a Flash-Based MSP430 MCU Using the JTAG Interface (Rev. H)

Migration Guide From MSP430 MCUs to MSPM0 MCUs (Rev. A)

MSP430 System ESD Troubleshooting Guide

Migrating from MSP430 F2xx and G2xx families to MSP430 FR4xx and FR2xx family (Rev. G)

ESD Diode Current Specification (Rev. B)

Li-Ion Battery Charger Solution Using an MSP430™ MCU (Rev. B)

Migrating from the USCI Module to the eUSCI Module (Rev. A)

MSP Code Protection Features

Random Number Generation Using MSP430™ MCUs (Rev. A)

Tiny DCDC Converter Reference Design (Rev. A)

Wave Digital Filtering Using an MSP430 MCU (Rev. A)

CRC Implementation with MSP430 MCUs (Rev. A)

MSP430 LFXT1 Oscillator Accuracy (Rev. A)

MSP430 Flash Memory Characteristics (Rev. B)

Mixing C and Assembler With MSP430™ MCUs (Rev. A)

Efficient Multiplication and Division Using MSP430 MCUs (Rev. A)

Migrating from the MSP430F2xx,G2xx Family to the MSP430FR58xx/FR59xx/68xx/69xx (Rev. E)

Power Management Solutions for Ultra-Low-Power 16-Bit MSP430 MCUs (Rev. D)

Understanding MSP430 Flash Data Retention (Rev. A)

Migrating From MSP430F13x and MSP430F14x MCUs to MSP430F23x and MSP430F24x MCUs (Rev. C)

Advanced Debugging Using the Enhanced Emulation Module (EEM) With CCS v6 (Rev. F)

MSP430 32-kHz Crystal Oscillators (Rev. D)

Powering the MSP430 from a High Voltage Input using the TPS62122 (Rev. C)
