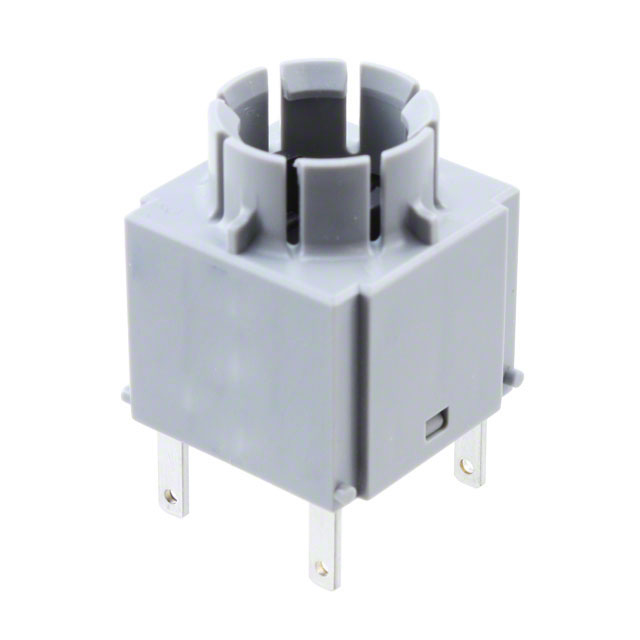

1.20.122.023/0000

Active

RAFI USA

CONTACT BLOCK DPST-NC 3A 120V

Search across all available documentation for this part.

Active

RAFI USA

CONTACT BLOCK DPST-NC 3A 120V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Contact Block DPST-NC 3A @ 120VAC

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1.20.122.023/0000	1.20122 Series

	-	-
(Select First, Then Apply Filters) Compatible Series	Rafix 16	Rafix 16
Circuit	DPST-NC	DPST-NC, DPST-NO, SPST-NO + SPST-NC
Contact Rating @ Voltage	3 A, 120 VAC	3 - 120 A
Contact Rating @ Voltage	-	35 VAC/DC
Contact Rating @ Voltage	-	0.25 A
Requires	Switch Body	Switch Body
Termination Style	Quick Connect - 0.110" (2.8mm)	Quick Connect - 0.110" (2.8mm), Screw Terminal

CONTACT BLOCK DPST-NC 3A 120V

Part	(Select First, Then Apply Filters) Compatible Series	Circuit	Termination Style	Contact Rating @ Voltage	Requires	Contact Rating @ Voltage [custom]	Contact Rating @ Voltage [custom]
RAFI USA 1.20.122.023/0000	Rafix 16	DPST-NC	Quick Connect - 0.110" (2.8mm)	3 A, 120 VAC	Switch Body
RAFI USA 1.20.122.062/0000	Rafix 16	DPST-NO	Quick Connect - 0.110" (2.8mm)	3 A, 120 VAC	Switch Body
RAFI USA 1.20.122.051/0000	Rafix 16	SPST-NO + SPST-NC	Quick Connect - 0.110" (2.8mm)		Switch Body	35 VAC/DC	0.25 A
RAFI USA 1.20.122.002/0000	Rafix 16	DPST-NO	Quick Connect - 0.110" (2.8mm)	3 A, 120 VAC	Switch Body
RAFI USA 1.20.122.012/0000	Rafix 16	DPST-NO	Quick Connect - 0.110" (2.8mm)		Switch Body	35 VAC/DC	0.25 A
RAFI USA 1.20.122.032/0000	Rafix 16	DPST-NO	Quick Connect - 0.110" (2.8mm)		Switch Body	35 VAC/DC	0.25 A
RAFI USA 1.20.122.001/0000	Rafix 16	SPST-NO + SPST-NC	Quick Connect - 0.110" (2.8mm)	3 A, 120 VAC	Switch Body
RAFI USA 1.20.122.003/0000	Rafix 16	DPST-NC	Quick Connect - 0.110" (2.8mm)	3 A, 120 VAC	Switch Body
RAFI USA 1.20.122.101/0000	Rafix 16	SPST-NO + SPST-NC	Screw Terminal	3 A, 120 VAC	Switch Body
RAFI USA 1.20.122.071/0000
