1.20.122.001/0000

Active

RAFI USA

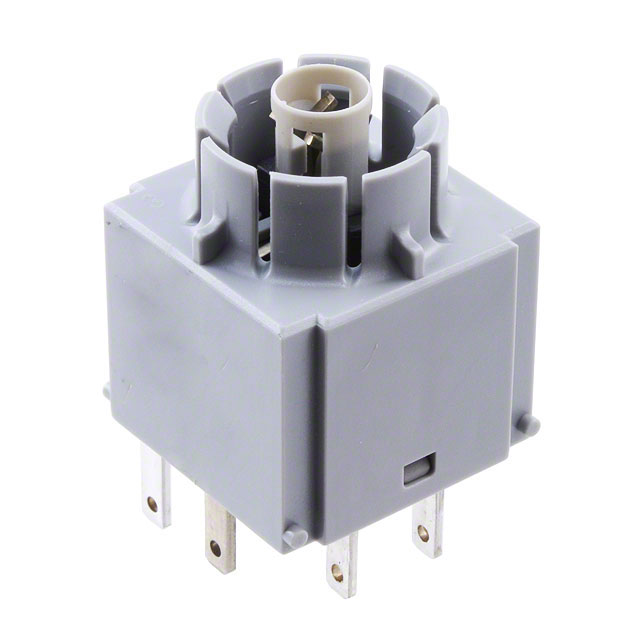

CONTACT BLOCK SPST 3A 120V

Search across all available documentation for this part.

Active

RAFI USA

CONTACT BLOCK SPST 3A 120V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Contact Block SPST-NO + SPST-NC 3A @ 120VAC

Technical documentation and resources

Specification	1.20.122.001/0000	1.20122 Series

	-	-
(Select First, Then Apply Filters) Compatible Series	Rafix 16	Rafix 16
Circuit	SPST-NO + SPST-NC	DPST-NC, DPST-NO, SPST-NO + SPST-NC
Contact Rating @ Voltage	3 A, 120 VAC	3 - 120 A
Contact Rating @ Voltage	-	35 VAC/DC
Contact Rating @ Voltage	-	0.25 A
Requires	Switch Body	Switch Body
Termination Style	Quick Connect - 0.110" (2.8mm)	Quick Connect - 0.110" (2.8mm), Screw Terminal

Part	(Select First, Then Apply Filters) Compatible Series	Circuit	Termination Style	Contact Rating @ Voltage	Requires	Contact Rating @ Voltage [custom]	Contact Rating @ Voltage [custom]
RAFI USA 1.20.122.023/0000	Rafix 16	DPST-NC	Quick Connect - 0.110" (2.8mm)	3 A, 120 VAC	Switch Body
RAFI USA 1.20.122.062/0000	Rafix 16	DPST-NO	Quick Connect - 0.110" (2.8mm)	3 A, 120 VAC	Switch Body
RAFI USA 1.20.122.051/0000	Rafix 16	SPST-NO + SPST-NC	Quick Connect - 0.110" (2.8mm)		Switch Body	35 VAC/DC	0.25 A
RAFI USA 1.20.122.002/0000	Rafix 16	DPST-NO	Quick Connect - 0.110" (2.8mm)	3 A, 120 VAC	Switch Body
RAFI USA 1.20.122.012/0000	Rafix 16	DPST-NO	Quick Connect - 0.110" (2.8mm)		Switch Body	35 VAC/DC	0.25 A
RAFI USA 1.20.122.032/0000	Rafix 16	DPST-NO	Quick Connect - 0.110" (2.8mm)		Switch Body	35 VAC/DC	0.25 A
RAFI USA 1.20.122.001/0000	Rafix 16	SPST-NO + SPST-NC	Quick Connect - 0.110" (2.8mm)	3 A, 120 VAC	Switch Body
RAFI USA 1.20.122.003/0000	Rafix 16	DPST-NC	Quick Connect - 0.110" (2.8mm)	3 A, 120 VAC	Switch Body
RAFI USA 1.20.122.101/0000	Rafix 16	SPST-NO + SPST-NC	Screw Terminal	3 A, 120 VAC	Switch Body
RAFI USA 1.20.122.071/0000
