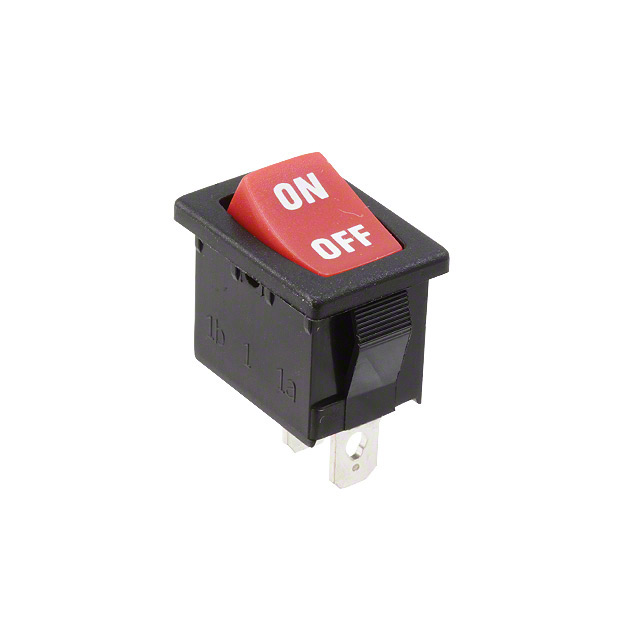

R1966ABLKREDIF

Active

E-Switch

SWITCH ROCKER SPST 15A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R1966ABLKREDIF

Actuator Marking	Vertical, ON OFF
Actuator Type	Concave (Curved)
Circuit	SPST
Color - Actuator/Cap	Red
Current Rating (Amps)	15 A
Electrical Life	10000 Cycles
Mechanical Life	30000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V

R1966ABL Series

Part	Mounting Type	Termination Style	Current Rating (Amps)	Circuit	Illumination Voltage (Nominal)	Electrical Life	Mechanical Life	Illumination Type, Color	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Actuator Marking	Actuator Type	Color - Actuator/Cap
E-Switch R1966ABLKBLKEFGRN	Panel Mount Snap-In	Quick Connect - 0.187" (4.7mm)	15 A	SPST	2.2 VDC	10000 Cycles	30000 Steps	Green LED	On-Off	65 °C	-30 ░C	125 V	No Marking	Concave (Curved) - Illuminated	Black
E-Switch R1966ABLKBLKGL	Panel Mount Right Angle Snap-In	PC Pin	15 A	SPST		10000 Cycles	30000 Steps		On-Off	65 °C	-30 ░C	125 V	O I	Concave (Curved)	Black
E-Switch R1966ABLKBLKGR	Panel Mount Right Angle Snap-In	PC Pin	15 A	SPST		10000 Cycles	30000 Steps		On-Off	65 °C	-30 ░C	125 V	O I	Concave (Curved)	Black
E-Switch R1966ABLKBLKEFYEL	Panel Mount Snap-In	Quick Connect - 0.187" (4.7mm)	15 A	SPST	2.1 VDC	10000 Cycles	30000 Steps	LED Yellow	On-Off	65 °C	-30 ░C	125 V	No Marking	Concave (Curved) - Illuminated	Black
E-Switch R1966ABLKREDIF	Panel Mount Snap-In	Quick Connect - 0.187" (4.7mm)	15 A	SPST		10000 Cycles	30000 Steps		On-Off	65 °C	-30 ░C	125 V	ON OFF Vertical	Concave (Curved)	Red
E-Switch R1966ABLKBLKEGGRN	Panel Mount Snap-In	Quick Connect - 0.187" (4.7mm)	15 A	SPST	2.2 VDC	10000 Cycles	30000 Steps	Green LED	On-Off	65 °C	-30 ░C	125 V	No Marking	Concave (Curved) - Illuminated	Black
E-Switch R1966ABLKBLKEPRED	Panel Mount Snap-In	PC Pin	15 A	SPST	2 VDC	10000 Cycles	30000 Steps	LED Red	On-Off	65 °C	-30 ░C	125 V	No Marking	Concave (Curved) - Illuminated	Black
E-Switch R1966ABLKREDEFGRN	Panel Mount Snap-In	Quick Connect - 0.187" (4.7mm)	15 A	SPST	2.2 VDC	10000 Cycles	30000 Steps	Green LED	On-Off	65 °C	-30 ░C	125 V	No Marking	Concave (Curved) - Illuminated	Red
E-Switch R1966ABLKBLKEL	Panel Mount Right Angle Snap-In	PC Pin	15 A	SPST		10000 Cycles	30000 Steps		On-Off	65 °C	-30 ░C	125 V	No Marking	Concave (Curved)	Black
E-Switch R1966ABLKWHTEFRED	Panel Mount Snap-In	Quick Connect - 0.187" (4.7mm)	15 A	SPST	2 VDC	10000 Cycles	30000 Steps	LED Red	On-Off	65 °C	-30 ░C	125 V	No Marking	Concave (Curved) - Illuminated	White

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.96
		10	$ 0.86
		25	$ 0.81
		50	$ 0.77
		100	$ 0.74
		250	$ 0.71
		500	$ 0.67

Description

General part information

R1966ABL Series

Rocker Switch SPST 15A (AC) 125 V Panel Mount, Snap-In

Documents

Technical documentation and resources
