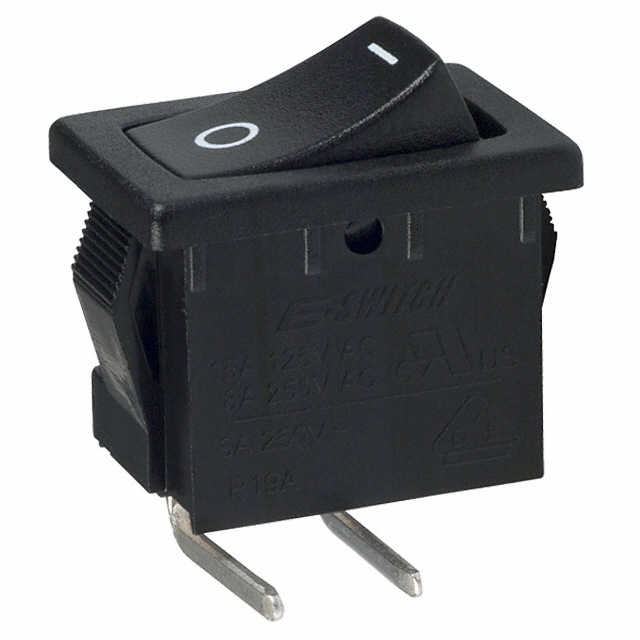

R1966ABLKBLKGR

Active

E-Switch

SWITCH ROCKER SPST 15A 125V

Deep-Dive with AI

Search across all available documentation for this part.

R1966ABLKBLKGR

Active

E-Switch

SWITCH ROCKER SPST 15A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R1966ABLKBLKGR

Actuator Marking	O I
Actuator Type	Concave (Curved)
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	15 A
Electrical Life	10000 Cycles
Mechanical Life	30000 Steps
Mounting Type	Snap-In, Right Angle, Panel Mount
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Off
Termination Style	PC Pin
Voltage Rating - AC	125 V

R1966ABL Series

Part	Mounting Type	Termination Style	Current Rating (Amps)	Circuit	Illumination Voltage (Nominal)	Electrical Life	Mechanical Life	Illumination Type, Color	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Actuator Marking	Actuator Type	Color - Actuator/Cap
E-Switch R1966ABLKBLKEFGRN	Panel Mount Snap-In	Quick Connect - 0.187" (4.7mm)	15 A	SPST	2.2 VDC	10000 Cycles	30000 Steps	Green LED	On-Off	65 °C	-30 ░C	125 V	No Marking	Concave (Curved) - Illuminated	Black
E-Switch R1966ABLKBLKGL	Panel Mount Right Angle Snap-In	PC Pin	15 A	SPST		10000 Cycles	30000 Steps		On-Off	65 °C	-30 ░C	125 V	O I	Concave (Curved)	Black
E-Switch R1966ABLKBLKGR	Panel Mount Right Angle Snap-In	PC Pin	15 A	SPST		10000 Cycles	30000 Steps		On-Off	65 °C	-30 ░C	125 V	O I	Concave (Curved)	Black
E-Switch R1966ABLKBLKEFYEL	Panel Mount Snap-In	Quick Connect - 0.187" (4.7mm)	15 A	SPST	2.1 VDC	10000 Cycles	30000 Steps	LED Yellow	On-Off	65 °C	-30 ░C	125 V	No Marking	Concave (Curved) - Illuminated	Black
E-Switch R1966ABLKREDIF	Panel Mount Snap-In	Quick Connect - 0.187" (4.7mm)	15 A	SPST		10000 Cycles	30000 Steps		On-Off	65 °C	-30 ░C	125 V	ON OFF Vertical	Concave (Curved)	Red
E-Switch R1966ABLKBLKEGGRN	Panel Mount Snap-In	Quick Connect - 0.187" (4.7mm)	15 A	SPST	2.2 VDC	10000 Cycles	30000 Steps	Green LED	On-Off	65 °C	-30 ░C	125 V	No Marking	Concave (Curved) - Illuminated	Black
E-Switch R1966ABLKBLKEPRED	Panel Mount Snap-In	PC Pin	15 A	SPST	2 VDC	10000 Cycles	30000 Steps	LED Red	On-Off	65 °C	-30 ░C	125 V	No Marking	Concave (Curved) - Illuminated	Black
E-Switch R1966ABLKREDEFGRN	Panel Mount Snap-In	Quick Connect - 0.187" (4.7mm)	15 A	SPST	2.2 VDC	10000 Cycles	30000 Steps	Green LED	On-Off	65 °C	-30 ░C	125 V	No Marking	Concave (Curved) - Illuminated	Red
E-Switch R1966ABLKBLKEL	Panel Mount Right Angle Snap-In	PC Pin	15 A	SPST		10000 Cycles	30000 Steps		On-Off	65 °C	-30 ░C	125 V	No Marking	Concave (Curved)	Black
E-Switch R1966ABLKWHTEFRED	Panel Mount Snap-In	Quick Connect - 0.187" (4.7mm)	15 A	SPST	2 VDC	10000 Cycles	30000 Steps	LED Red	On-Off	65 °C	-30 ░C	125 V	No Marking	Concave (Curved) - Illuminated	White

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.32
		10	$ 1.18
		25	$ 1.12
		50	$ 1.06
		100	$ 1.01
		250	$ 0.97
		500	$ 0.94

Description

General part information

R1966ABL Series

Rocker Switch SPST 15A (AC) 125 V Panel Mount, Snap-In, Right Angle

Documents

Technical documentation and resources

No documents available
