08-2503-30
ActiveAries Electronics

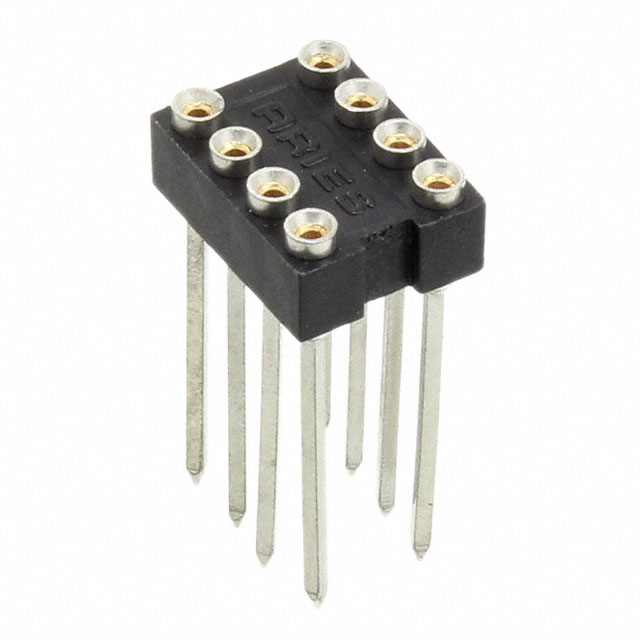

CONN IC DIP SOCKET 8POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
08-2503-30
ActiveAries Electronics
CONN IC DIP SOCKET 8POS GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 08-2503-30 |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Finish Thickness - Post | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post | Phosphor Bronze |
| Current Rating (Amps) | 3 A |
| Features | Closed Frame |
| Housing Material | Glass Filled, Polyamide (PA46), Nylon 4/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 8 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Wire Wrap |
| Termination Post Length | 0.5 in |
| Termination Post Length | 12.7 mm |
| Type | DIP |
| Type | 5.08 mm |
| Type | 0.2 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.77 | |
| 10 | $ 4.33 | |||
| 25 | $ 4.10 | |||
| 50 | $ 4.01 | |||
| 100 | $ 3.82 | |||
| 250 | $ 3.34 | |||
| 500 | $ 3.25 | |||
| 1000 | $ 2.77 | |||
| 2500 | $ 2.58 | |||
Description
General part information
08-2503 Series
8 (2 x 4) Pos DIP, 0.2" (5.08mm) Row Spacing Socket Gold Through Hole
