342-030-524-208
ActiveEDAC Inc.

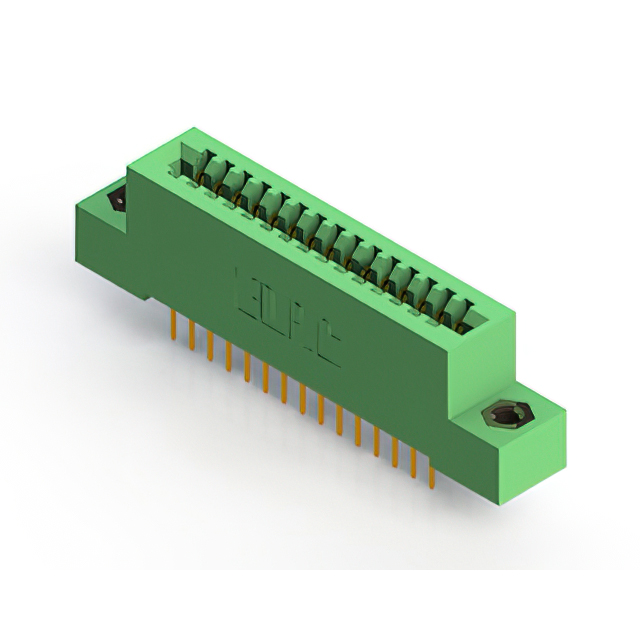

CONN EDGE DUAL FMALE 30POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
342-030-524-208
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 30POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 342-030-524-208 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 30 |
| Number of Positions/Bay/Row [custom] | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
342-030 Series
...
| Part | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Mounting Type | Card Type | Color | Termination Rows | Number of Positions/Bay/Row [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Gender | Termination | Number of Positions | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Number of Rows | Pitch [x] | Pitch [x] | Contact Finish | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Through Hole | Non Specified - Single Edge | Green | 1 | 30 | -40 °C | 105 ░C | Single | Female | Solder Eyelet(s) | 30 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | 2.54 mm | 0.1 in | Gold | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Through Hole | Non Specified - Single Edge | Green | 1 | 30 | -40 °C | 105 ░C | Single | Female | Wire Wrap | 30 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | 2.54 mm | 0.1 in | Gold | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | |
EDAC Inc. | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Board Edge Straddle Mount | Non Specified - Dual Edge | Green | 2 | 15 | -40 °C | 105 ░C | Dual | Female | Solder | 30 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 2 | 2.54 mm | 0.1 in | Gold | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Card Extender |
EDAC Inc. | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Board Edge Straddle Mount | Non Specified - Dual Edge | Green | 2 | 15 | -40 °C | 105 ░C | Dual | Female | Solder Eyelet(s) | 30 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 2 | 2.54 mm | 0.1 in | Gold | 4-40 Flush Mount Threaded Insert Top Opening | Card Extender | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Through Hole | Non Specified - Dual Edge | Green | 2 | 15 | -40 °C | 105 ░C | Dual | Female | Solder | 30 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 2 | 2.54 mm | 0.1 in | Gold | 4-40 Flush Mount Threaded Insert Top Opening | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Through Hole | Non Specified - Single Edge | Green | 1 | 30 | -40 °C | 105 ░C | Single | Female | Wire Wrap | 30 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | 2.54 mm | 0.1 in | Gold | Flush Mount M3 Threaded Insert Top Opening | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Through Hole | Non Specified - Single Edge | Green | 1 | 30 | -40 °C | 105 ░C | Single | Female | Wire Wrap | 30 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | 2.54 mm | 0.1 in | Gold | 4-40 Flush Mount Threaded Insert Top Opening | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Through Hole | Non Specified - Single Edge | Green | 1 | 30 | -40 °C | 105 ░C | Single | Female | Wire Wrap | 30 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 1 | 2.54 mm | 0.1 in | Gold | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | |
EDAC Inc. | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Board Edge Straddle Mount | Non Specified - Dual Edge | Green | 2 | 15 | -40 °C | 105 ░C | Dual | Female | Solder | 30 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 2 | 2.54 mm | 0.1 in | Gold | Flush Mount M3 Threaded Insert Top Opening | Card Extender | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Through Hole | Non Specified - Dual Edge | Green | 2 | 15 | -40 °C | 105 ░C | Dual | Female | Wire Wrap | 30 | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 2 | 2.54 mm | 0.1 in | Gold | 4-40 Flush Mount Threaded Insert Top Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 11.97 | |
Description
General part information
342-030 Series
30 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
