342-030-541-112

Active

EDAC Inc.

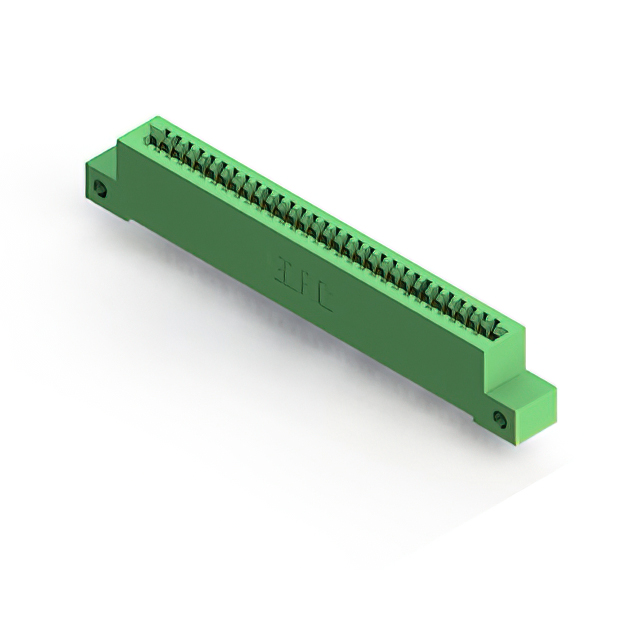

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 30 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

342-030-541-112

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 30 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	342-030-541-112

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Unthreaded, Flush Mount, Side Opening
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	30
Number of Positions/Bay/Row [custom]	30
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

342-030 Series

...

Part	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation	Mounting Type	Card Type	Color	Termination Rows	Number of Positions/Bay/Row [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Gender	Termination	Number of Positions	Contact Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Material	Number of Rows	Pitch [x]	Pitch [x]	Contact Finish	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Features
EDAC Inc. 342-030-500-101	10 Áin	0.25 Ám	Polyester Thermoplastic	Through Hole	Non Specified - Single Edge	Green	1	30	-40 °C	105 ░C	Single	Female	Solder Eyelet(s)	30	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	2.54 mm	0.1 in	Gold
EDAC Inc. 342-030-541-112	10 Áin	0.25 Ám	Polyester Thermoplastic	Through Hole	Non Specified - Single Edge	Green	1	30	-40 °C	105 ░C	Single	Female	Wire Wrap	30	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	2.54 mm	0.1 in	Gold	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "
EDAC Inc. 342-030-560-203	10 Áin	0.25 Ám	Polyester Thermoplastic	Board Edge Straddle Mount	Non Specified - Dual Edge	Green	2	15	-40 °C	105 ░C	Dual	Female	Solder	30	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	2	2.54 mm	0.1 in	Gold	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Card Extender
EDAC Inc. 342-030-555-208	10 Áin	0.25 Ám	Polyester Thermoplastic	Board Edge Straddle Mount	Non Specified - Dual Edge	Green	2	15	-40 °C	105 ░C	Dual	Female	Solder Eyelet(s)	30	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	2	2.54 mm	0.1 in	Gold		4-40 Flush Mount Threaded Insert Top Opening		Card Extender
EDAC Inc. 342-030-524-208	10 Áin	0.25 Ám	Polyester Thermoplastic	Through Hole	Non Specified - Dual Edge	Green	2	15	-40 °C	105 ░C	Dual	Female	Solder	30	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	2	2.54 mm	0.1 in	Gold		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 342-030-541-107	10 Áin	0.25 Ám	Polyester Thermoplastic	Through Hole	Non Specified - Single Edge	Green	1	30	-40 °C	105 ░C	Single	Female	Wire Wrap	30	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	2.54 mm	0.1 in	Gold		Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 342-030-544-108	10 Áin	0.25 Ám	Polyester Thermoplastic	Through Hole	Non Specified - Single Edge	Green	1	30	-40 °C	105 ░C	Single	Female	Wire Wrap	30	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	2.54 mm	0.1 in	Gold		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 342-030-540-102	10 Áin	0.25 Ám	Polyester Thermoplastic	Through Hole	Non Specified - Single Edge	Green	1	30	-40 °C	105 ░C	Single	Female	Wire Wrap	30	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	1	2.54 mm	0.1 in	Gold	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "
EDAC Inc. 342-030-556-207	10 Áin	0.25 Ám	Polyester Thermoplastic	Board Edge Straddle Mount	Non Specified - Dual Edge	Green	2	15	-40 °C	105 ░C	Dual	Female	Solder	30	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	2	2.54 mm	0.1 in	Gold		Flush Mount M3 Threaded Insert Top Opening		Card Extender
EDAC Inc. 342-030-544-208	10 Áin	0.25 Ám	Polyester Thermoplastic	Through Hole	Non Specified - Dual Edge	Green	2	15	-40 °C	105 ░C	Dual	Female	Wire Wrap	30	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	2	2.54 mm	0.1 in	Gold		4-40 Flush Mount Threaded Insert Top Opening

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 16.44
Newark	Each	1	$ 18.37
		100	$ 14.84
		250	$ 13.59
		500	$ 12.43
		1000	$ 10.37

Description

General part information

342-030 Series

30 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
