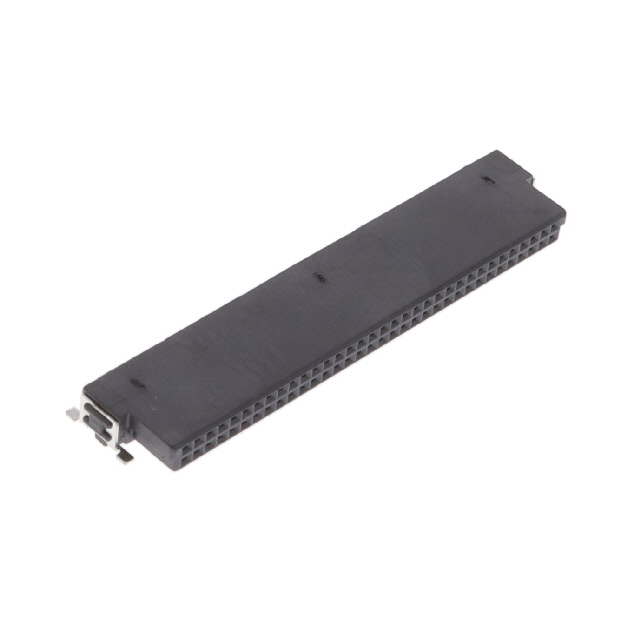

ESMC-F-68-SGR-SMT-T/R

Active

Adam Tech

CONN RCPT R/A SMT 68POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Medical Industry Brochure

ESMC-F-68-SGR-SMT-T/R

Active

Adam Tech

CONN RCPT R/A SMT 68POS 1.27MM

Deep-Dive with AI

DocumentsDatasheet Medical Industry Brochure

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESMC-F-68-SGR-SMT-T/R

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	1.2 A
Fastening Type	Push-Pull
Features	Solder Retention, Board Guide
Insulation Color	Black
Insulation Height	0.145 "
Insulation Height	3.68 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	68
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Termination	Solder

ESMC-F Series

Part	Number of Positions Loaded	Insulation Height	Insulation Height	Material Flammability Rating	Fastening Type	Insulation Material	Contact Finish Thickness - Mating	Contact Finish - Post	Features	Mounting Type	Contact Finish - Mating	Connector Type	Pitch - Mating	Pitch - Mating	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Positions	Mated Stacking Heights	Contact Material	Current Rating (Amps)	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Termination	Color	Row Spacing	Row Spacing	Wire Gauge	Cable Termination	Contact Finish Thickness	Wire Type	Pitch [x]	Pitch [x]	Contact Finish	Insulation Height [z]	Insulation Height [z]	Number of Positions
Adam Tech ESMC-F-20-SGS-SMT-C-PP-T/R	All	0.537 in	13.64 mm	UL94 V-0	Push-Pull	Thermoplastic	Flash	Tin	Board Guide Pick and Place Solder Retention	Surface Mount	Gold	Receptacle	0.05 in	1.27 mm	Black	-55 °C	125 °C	Female Socket	20	15.4 mm 16.9 mm 18.5 mm	Phosphor Bronze	1.2 A	Square	0.05 in	1.27 mm	2	Solder
Adam Tech ESMC-F-20-SGS-14.10-IDC-L					Latch Lock				Closed End	Free Hanging (In-Line)		Receptacle						Female Socket	20							2		Ivory	1.27 mm	0.05 in	30 AWG	IDC	Flash	Ribbon Cable	0.05 in	1.27 mm	Gold
Adam Tech ESMC-F-68-SGR-SMT-T/R	All	0.145 "	3.68 mm	UL94 V-0	Push-Pull	Thermoplastic	Flash	Tin	Board Guide Solder Retention	Surface Mount Right Angle	Gold	Receptacle	0.05 in	1.27 mm	Black	-55 °C	125 °C	Female Socket	68		Phosphor Bronze	1.2 A	Square	0.05 in	1.27 mm	2	Solder
Adam Tech ESMC-F-68-SGS-SMT-A-PP-T/R	All	0.246 in	6.25 mm	UL94 V-0	Push-Pull	Thermoplastic	Flash	Tin	Board Guide Pick and Place Solder Retention	Surface Mount	Gold	Receptacle	0.05 in	1.27 mm	Black	-55 °C	125 °C	Female Socket	68	8 mm 9.5 mm 11.1 mm	Phosphor Bronze	1.2 A	Square	0.05 in	1.27 mm	2	Solder
Adam Tech ESMC-F-16-SGS-SMT-B-PP-T/R	All			UL94 V-0	Push-Pull	Thermoplastic	Flash	Tin	Board Guide Pick and Place Solder Retention	Surface Mount	Gold	Receptacle	0.05 in	1.27 mm	Black	-55 °C	125 °C	Female Socket		10.8 mm 12.3 mm 13.9 mm	Phosphor Bronze	1.2 A	Square	0.05 in	1.27 mm	2	Solder											0.356 in	9.05 mm	16
Adam Tech ESMC-F-80-SGS-SMT-B-PP-T/R	All			UL94 V-0	Push-Pull	Thermoplastic	Flash	Tin	Board Guide Pick and Place Solder Retention	Surface Mount	Gold	Receptacle	0.05 in	1.27 mm	Black	-55 °C	125 °C	Female Socket	80	10.8 mm 12.3 mm 13.9 mm	Phosphor Bronze	1.2 A	Square	0.05 in	1.27 mm	2	Solder											0.356 in	9.05 mm
Adam Tech ESMC-F-26-SGS-14.10-IDC-L					Latch Lock				Closed End	Free Hanging (In-Line)		Receptacle						Female Socket	26							2		Ivory	1.27 mm	0.05 in	30 AWG	IDC	Flash	Ribbon Cable	0.05 in	1.27 mm	Gold
Adam Tech ESMC-F-80-SGS-SMT-A-PP-T/R	All	0.246 in	6.25 mm	UL94 V-0	Push-Pull	Thermoplastic	Flash	Tin	Board Guide Pick and Place Solder Retention	Surface Mount	Gold	Receptacle	0.05 in	1.27 mm	Black	-55 °C	125 °C	Female Socket	80	8 mm 9.5 mm 11.1 mm	Phosphor Bronze	1.2 A	Square	0.05 in	1.27 mm	2	Solder
Adam Tech ESMC-F-40-SGS-SMT-A-PP-T/R	All	0.246 in	6.25 mm	UL94 V-0	Push-Pull	Thermoplastic	Flash	Tin	Board Guide Pick and Place Solder Retention	Surface Mount	Gold	Receptacle	0.05 in	1.27 mm	Black	-55 °C	125 °C	Female Socket	40	8 mm 9.5 mm 11.1 mm	Phosphor Bronze	1.2 A	Square	0.05 in	1.27 mm	2	Solder
Adam Tech ESMC-F-30-SGS-SMT-A-PP-T/R	All	0.246 in	6.25 mm	UL94 V-0	Push-Pull	Thermoplastic	Flash	Tin	Board Guide Pick and Place Solder Retention	Surface Mount	Gold	Receptacle	0.05 in	1.27 mm	Black	-55 °C	125 °C	Female Socket	30	8 mm 9.5 mm 11.1 mm	Phosphor Bronze	1.2 A	Square	0.05 in	1.27 mm	2	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 7.46
		10	$ 5.72
		100	$ 4.44
	Tape & Reel (TR)	2100	$ 3.27

Description

General part information

ESMC-F Series

68 Position Receptacle Connector 0.050" (1.27mm) Surface Mount, Right Angle Gold
