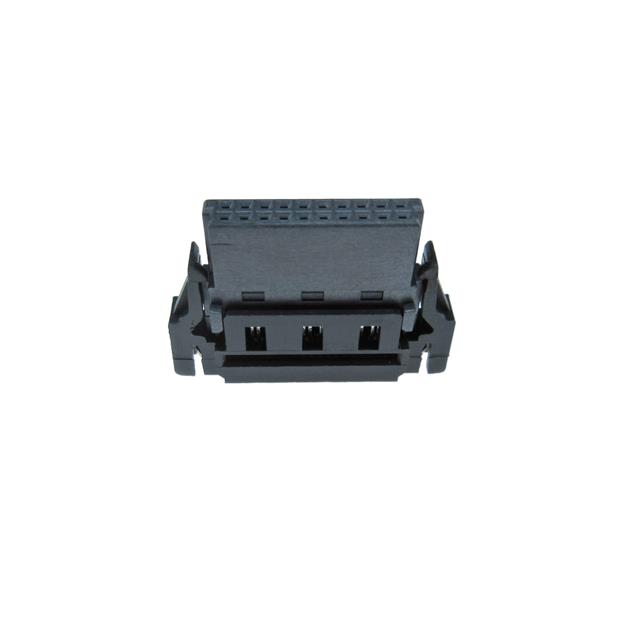

ESMC-F-20-SGS-14.10-IDC-L

Active

Adam Tech

20PIN, 1.27 IDC SMC FEMALE CABLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ESMC-F-20-SGS-14.10-IDC-L

Active

Adam Tech

20PIN, 1.27 IDC SMC FEMALE CABLE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESMC-F-20-SGS-14.10-IDC-L

Cable Termination	IDC
Color	Ivory
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Closed End
Mounting Type	Free Hanging (In-Line)
Number of Positions	20
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Row Spacing	1.27 mm
Row Spacing	0.05 in
Wire Gauge	30 AWG
Wire Type	Ribbon Cable

ESMC-F Series

Part	Number of Positions Loaded	Insulation Height	Insulation Height	Material Flammability Rating	Fastening Type	Insulation Material	Contact Finish Thickness - Mating	Contact Finish - Post	Features	Mounting Type	Contact Finish - Mating	Connector Type	Pitch - Mating	Pitch - Mating	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Positions	Mated Stacking Heights	Contact Material	Current Rating (Amps)	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Termination	Color	Row Spacing	Row Spacing	Wire Gauge	Cable Termination	Contact Finish Thickness	Wire Type	Pitch [x]	Pitch [x]	Contact Finish	Insulation Height [z]	Insulation Height [z]	Number of Positions
Adam Tech ESMC-F-20-SGS-SMT-C-PP-T/R	All	0.537 in	13.64 mm	UL94 V-0	Push-Pull	Thermoplastic	Flash	Tin	Board Guide Pick and Place Solder Retention	Surface Mount	Gold	Receptacle	0.05 in	1.27 mm	Black	-55 °C	125 °C	Female Socket	20	15.4 mm 16.9 mm 18.5 mm	Phosphor Bronze	1.2 A	Square	0.05 in	1.27 mm	2	Solder
Adam Tech ESMC-F-20-SGS-14.10-IDC-L					Latch Lock				Closed End	Free Hanging (In-Line)		Receptacle						Female Socket	20							2		Ivory	1.27 mm	0.05 in	30 AWG	IDC	Flash	Ribbon Cable	0.05 in	1.27 mm	Gold
Adam Tech ESMC-F-68-SGR-SMT-T/R	All	0.145 "	3.68 mm	UL94 V-0	Push-Pull	Thermoplastic	Flash	Tin	Board Guide Solder Retention	Surface Mount Right Angle	Gold	Receptacle	0.05 in	1.27 mm	Black	-55 °C	125 °C	Female Socket	68		Phosphor Bronze	1.2 A	Square	0.05 in	1.27 mm	2	Solder
Adam Tech ESMC-F-68-SGS-SMT-A-PP-T/R	All	0.246 in	6.25 mm	UL94 V-0	Push-Pull	Thermoplastic	Flash	Tin	Board Guide Pick and Place Solder Retention	Surface Mount	Gold	Receptacle	0.05 in	1.27 mm	Black	-55 °C	125 °C	Female Socket	68	8 mm 9.5 mm 11.1 mm	Phosphor Bronze	1.2 A	Square	0.05 in	1.27 mm	2	Solder
Adam Tech ESMC-F-16-SGS-SMT-B-PP-T/R	All			UL94 V-0	Push-Pull	Thermoplastic	Flash	Tin	Board Guide Pick and Place Solder Retention	Surface Mount	Gold	Receptacle	0.05 in	1.27 mm	Black	-55 °C	125 °C	Female Socket		10.8 mm 12.3 mm 13.9 mm	Phosphor Bronze	1.2 A	Square	0.05 in	1.27 mm	2	Solder											0.356 in	9.05 mm	16
Adam Tech ESMC-F-80-SGS-SMT-B-PP-T/R	All			UL94 V-0	Push-Pull	Thermoplastic	Flash	Tin	Board Guide Pick and Place Solder Retention	Surface Mount	Gold	Receptacle	0.05 in	1.27 mm	Black	-55 °C	125 °C	Female Socket	80	10.8 mm 12.3 mm 13.9 mm	Phosphor Bronze	1.2 A	Square	0.05 in	1.27 mm	2	Solder											0.356 in	9.05 mm
Adam Tech ESMC-F-26-SGS-14.10-IDC-L					Latch Lock				Closed End	Free Hanging (In-Line)		Receptacle						Female Socket	26							2		Ivory	1.27 mm	0.05 in	30 AWG	IDC	Flash	Ribbon Cable	0.05 in	1.27 mm	Gold
Adam Tech ESMC-F-80-SGS-SMT-A-PP-T/R	All	0.246 in	6.25 mm	UL94 V-0	Push-Pull	Thermoplastic	Flash	Tin	Board Guide Pick and Place Solder Retention	Surface Mount	Gold	Receptacle	0.05 in	1.27 mm	Black	-55 °C	125 °C	Female Socket	80	8 mm 9.5 mm 11.1 mm	Phosphor Bronze	1.2 A	Square	0.05 in	1.27 mm	2	Solder
Adam Tech ESMC-F-40-SGS-SMT-A-PP-T/R	All	0.246 in	6.25 mm	UL94 V-0	Push-Pull	Thermoplastic	Flash	Tin	Board Guide Pick and Place Solder Retention	Surface Mount	Gold	Receptacle	0.05 in	1.27 mm	Black	-55 °C	125 °C	Female Socket	40	8 mm 9.5 mm 11.1 mm	Phosphor Bronze	1.2 A	Square	0.05 in	1.27 mm	2	Solder
Adam Tech ESMC-F-30-SGS-SMT-A-PP-T/R	All	0.246 in	6.25 mm	UL94 V-0	Push-Pull	Thermoplastic	Flash	Tin	Board Guide Pick and Place Solder Retention	Surface Mount	Gold	Receptacle	0.05 in	1.27 mm	Black	-55 °C	125 °C	Female Socket	30	8 mm 9.5 mm 11.1 mm	Phosphor Bronze	1.2 A	Square	0.05 in	1.27 mm	2	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.44
		10	$ 3.40
		25	$ 3.07
		40	$ 2.91
		80	$ 2.70
		230	$ 2.68

Description

General part information

ESMC-F Series

20 Position Rectangular Receptacle Connector IDC Gold 30 AWG
