CA3509M4-EV23
ObsoleteCEL

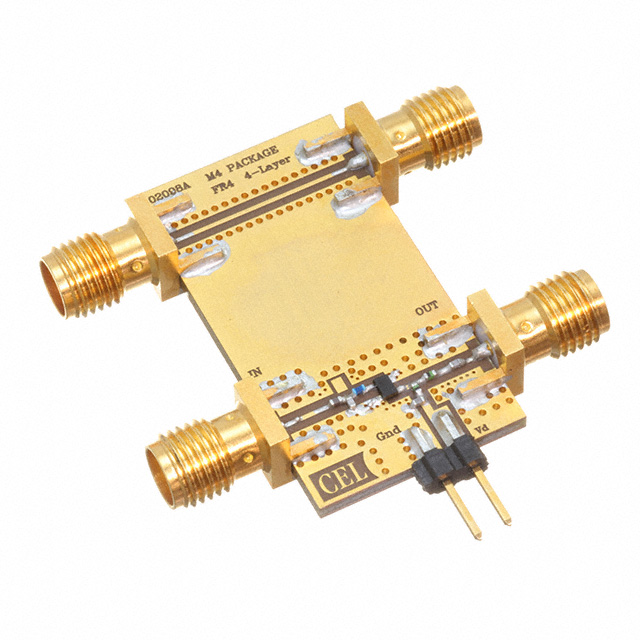

EVAL BOARD - TUNED FOR 2.33GHZ
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CA3509M4-EV23
ObsoleteCEL
EVAL BOARD - TUNED FOR 2.33GHZ
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CA3509M4-EV23 | CA3509 Series |
|---|---|---|
| Current - Test | - | 15 mA |
| Current Rating (Amps) | - | 20.6 mA |
| For Use With/Related Products | CA3509M4 | CA3509M4 |
| Frequency | 2.33 GHz | 1.57 - 2.33 GHz |
| Gain | - | 17 dBi |
| Mounting Type | - | Surface Mount |
| Noise Figure | - | 0.4 dB |
| Package / Case | - | SOT-343F |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 4-Super Mini Mold |
| Technology | - | pHEMT FET |
| Type | Amplifier | Amplifier |
| Voltage - Rated | - | 4 V |
| Voltage - Test | - | 3 V |
CA3509 Series
EVAL BOARD - TUNED FOR 1.57GHZ
| Part | Frequency | For Use With/Related Products | Type | Supplied Contents | Voltage - Test | Current Rating (Amps) | Technology | Noise Figure | Voltage - Rated | Package / Case | Mounting Type | Gain | Supplier Device Package | Current - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1.57 GHz | CA3509M4 | Amplifier | Board(s) | |||||||||||
2.33 GHz | CA3509M4 | Amplifier | Board(s) | |||||||||||
CEL CA3509M4 | 1.575 GHz | 3 V | 20.6 mA | pHEMT FET | 0.4 dB | 4 V | SOT-343F | Surface Mount | 17 dBi | 4-Super Mini Mold | 15 mA | |||
CEL CA3509M4-C2B | 1.575 GHz | 3 V | 20.6 mA | pHEMT FET | 0.4 dB | 4 V | SOT-343F | Surface Mount | 17 dBi | 4-Super Mini Mold | 15 mA |
