CA3509M4-EV15

Obsolete

CEL

EVAL BOARD - TUNED FOR 1.57GHZ

Search across all available documentation for this part.

Obsolete

CEL

EVAL BOARD - TUNED FOR 1.57GHZ

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

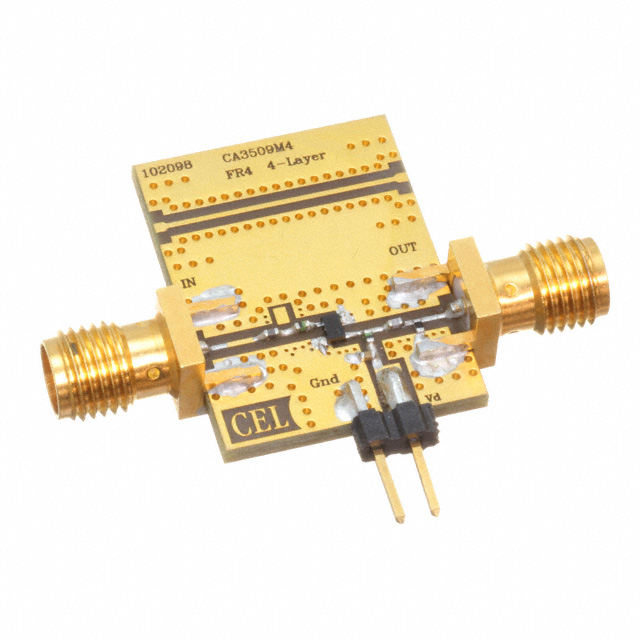

CA3509M4 - Amplifier 1.57GHz Evaluation Board

Technical documentation and resources

Specification	CA3509M4-EV15	CA3509 Series

Current - Test	-	15 mA
Current Rating (Amps)	-	20.6 mA
For Use With/Related Products	CA3509M4	CA3509M4
Frequency	1.57 GHz	1.57 - 2.33 GHz
Gain	-	17 dBi
Mounting Type	-	Surface Mount
Noise Figure	-	0.4 dB
Package / Case	-	SOT-343F
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	4-Super Mini Mold
Technology	-	pHEMT FET
Type	Amplifier	Amplifier
Voltage - Rated	-	4 V
Voltage - Test	-	3 V

Part	Frequency	For Use With/Related Products	Type	Supplied Contents	Voltage - Test	Current Rating (Amps)	Technology	Noise Figure	Voltage - Rated	Package / Case	Mounting Type	Gain	Supplier Device Package	Current - Test
CEL CA3509M4-EV15	1.57 GHz	CA3509M4	Amplifier	Board(s)
CEL CA3509M4-EV23	2.33 GHz	CA3509M4	Amplifier	Board(s)
CEL CA3509M4	1.575 GHz				3 V	20.6 mA	pHEMT FET	0.4 dB	4 V	SOT-343F	Surface Mount	17 dBi	4-Super Mini Mold	15 mA
CEL CA3509M4-C2B	1.575 GHz				3 V	20.6 mA	pHEMT FET	0.4 dB	4 V	SOT-343F	Surface Mount	17 dBi	4-Super Mini Mold	15 mA
