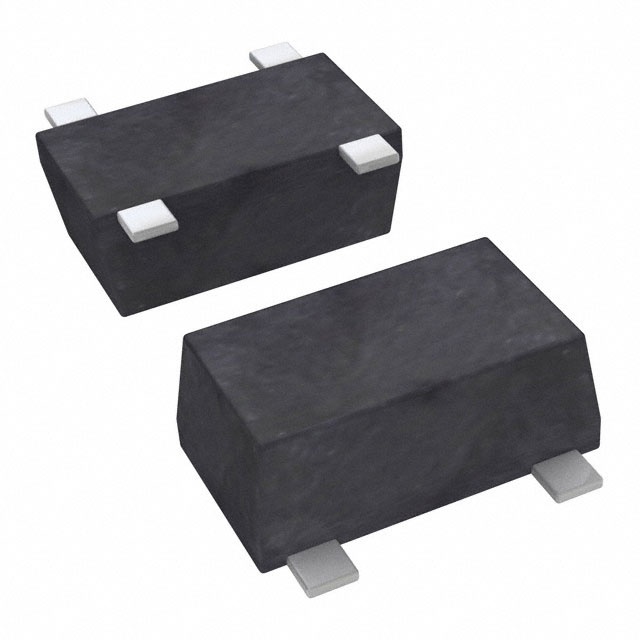

CA3509M4

Active

CEL

RF MOSFET PHEMT FET 4V 4SUPMIN

Search across all available documentation for this part.

Active

CEL

RF MOSFET PHEMT FET 4V 4SUPMIN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Mosfet 3 V 15 mA 1.575GHz 17dB 4-Super Mini Mold

Technical documentation and resources

Specification	CA3509M4	CA3509 Series

Current - Test	15 mA	15 mA
Current Rating (Amps)	20.6 mA	20.6 mA
For Use With/Related Products	-	CA3509M4
Frequency	1.575 GHz	1.57 - 2.33 GHz
Gain	17 dBi	17 dBi
Mounting Type	Surface Mount	Surface Mount
Noise Figure	0.4 dB	0.4 dB
Package / Case	SOT-343F	SOT-343F
Supplied Contents	-	Board(s)
Supplier Device Package	4-Super Mini Mold	4-Super Mini Mold
Technology	pHEMT FET	pHEMT FET
Type	-	Amplifier
Voltage - Rated	4 V	4 V
Voltage - Test	3 V	3 V

Part	Frequency	For Use With/Related Products	Type	Supplied Contents	Voltage - Test	Current Rating (Amps)	Technology	Noise Figure	Voltage - Rated	Package / Case	Mounting Type	Gain	Supplier Device Package	Current - Test
CEL CA3509M4-EV15	1.57 GHz	CA3509M4	Amplifier	Board(s)
CEL CA3509M4-EV23	2.33 GHz	CA3509M4	Amplifier	Board(s)
CEL CA3509M4	1.575 GHz				3 V	20.6 mA	pHEMT FET	0.4 dB	4 V	SOT-343F	Surface Mount	17 dBi	4-Super Mini Mold	15 mA
CEL CA3509M4-C2B	1.575 GHz				3 V	20.6 mA	pHEMT FET	0.4 dB	4 V	SOT-343F	Surface Mount	17 dBi	4-Super Mini Mold	15 mA
