627-47W1224-5N5
ActiveEDAC Inc.

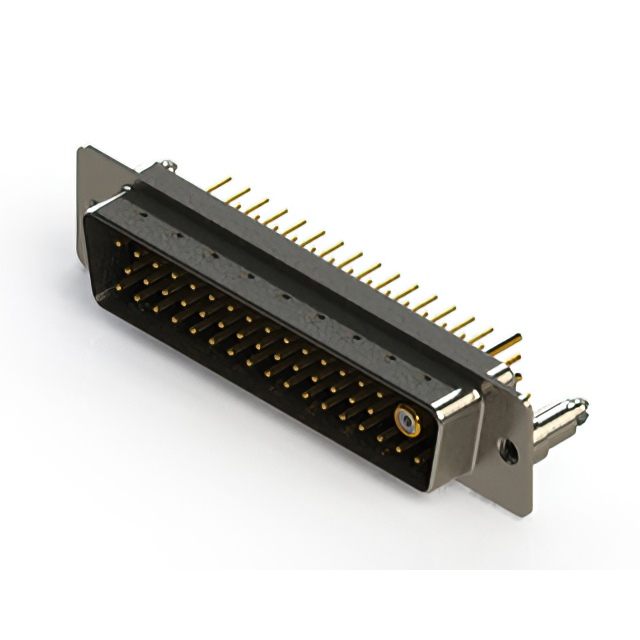

CONN D-SUB PLUG 47POS VERT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
627-47W1224-5N5
ActiveEDAC Inc.
CONN D-SUB PLUG 47POS VERT SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 627-47W1224-5N5 |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal, Coax |
| Dielectric Material | Polyester Thermoplastic |
| Features | Board Lock, Shielded, Grounding Indents |
| Flange Feature | Board Side, 4-40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 47 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 5 (DD, D), 47W1 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
627-47W Series
...
| Part | Contact Finish | Termination | Voltage Rating | Current Rating (Amps) | Connector Type | Flange Feature | Number of Positions [custom] | Number of Positions | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout | Color | Material Flammability Rating | Features | Mounting Type | Contact Type | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Connector Style | Contact Material | Shell Material, Finish | Contact Finish Thickness | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | Solder | 125 VDC | 5 A 20 A | Male Pins Plug | Board Side (M3) | 1 | 47 | 3 | 0.76 Ám | 30 Áin | 47W1 5 (DD D) | Black | UL94 V-0 | Grounding Indents Shielded | Panel Mount Through Hole | Signal and Power | Polyester Thermoplastic | -55 °C | 125 °C | Combo D-Sub | Copper Alloy | |||
EDAC Inc. | Gold | Solder | 125 VDC | Male Pins Plug | Board Side (M3) | 47 | 3 | 0.76 Ám | 30 Áin | 47W1 5 (DD D) | Black | UL94 V-0 | Grounding Indents Shielded | Panel Mount Through Hole | Coax Signal | Polyester Thermoplastic | -55 °C | 125 °C | Combo D-Sub | Copper Alloy | |||||
EDAC Inc. | Gold | Solder | 125 VDC | 5 A 20 A | Male Pins Plug | 4-40 Board Side | 1 | 47 | 3 | 0.76 Ám | 30 Áin | 47W1 5 (DD D) | Black | UL94 V-0 | Board Lock Grounding Indents Shielded | Through Hole | Signal and Power | Polyester Thermoplastic | -55 °C | 125 °C | Combo D-Sub | Copper Alloy | Nickel Plated Steel | ||
EDAC Inc. | Gold | 125 VDC | Male Pins Plug | Board Side (M3) | 47 | 3 | 0.76 Ám | 30 Áin | 47W1 5 (DD D) | Black | UL94 V-0 | Grounding Indents Shielded | Free Hanging (In-Line) | Coax Signal | Polyester Thermoplastic | -55 °C | 125 °C | Combo D-Sub | Copper Alloy | ||||||
EDAC Inc. | Gold | 125 VDC | 5 A 30 A | Male Pins Plug | Housing/Shell (Unthreaded) | 1 | 47 | 3 | 0.76 Ám | 30 Áin | 47W1 5 (DD D) | Black | UL94 V-0 | Grounding Indents Shielded | Free Hanging (In-Line) | Signal and Power | Polyester Thermoplastic | -55 °C | 125 °C | Combo D-Sub | Copper Alloy | ||||
EDAC Inc. | Gold | Solder | 125 VDC | 5 A 40 A | Male Pins Plug | M3 | 1 | 47 | 3 | 47W1 5 (DD D) | Black | UL94 V-0 | Board Lock Grounding Indents Shielded | Panel Mount Through Hole | Signal and Power | Polyester Thermoplastic | -55 °C | 125 °C | Combo D-Sub | Copper Alloy | Flash | ||||
EDAC Inc. | Gold | Solder | 125 VDC | Male Pins Plug | 4-40 Board Side | 47 | 3 | 47W1 5 (DD D) | Black | UL94 V-0 | Board Lock Grounding Indents Shielded | Through Hole | Coax Signal | Polyester Thermoplastic | -55 °C | 125 °C | Combo D-Sub | Copper Alloy | Nickel Plated Steel | Flash | |||||
EDAC Inc. | Gold | Solder | 125 VDC | 5 A 30 A | Male Pins Plug | 4-40 Board Side | 1 | 47 | 3 | 0.76 Ám | 30 Áin | 47W1 5 (DD D) | Black | UL94 V-0 | Board Lock Grounding Indents Shielded | Through Hole | Signal and Power | Polyester Thermoplastic | -55 °C | 125 °C | Combo D-Sub | Copper Alloy | |||
EDAC Inc. | Gold | Solder | 125 VDC | 5 A 30 A | Male Pins Plug | 4-40 Board Side | 1 | 47 | 3 | 47W1 5 (DD D) | Black | UL94 V-0 | Grounding Indents Shielded | Panel Mount Through Hole | Signal and Power | Polyester Thermoplastic | -55 °C | 125 °C | Combo D-Sub | Copper Alloy | Flash | ||||
EDAC Inc. | Gold | Solder | 125 VDC | Male Pins Plug | Board Side (M3) | 1 | 47 | 3 | 0.76 Ám | 30 Áin | 47W1 5 (DD D) | Black | UL94 V-0 | Board Lock Grounding Indents Shielded | Through Hole | Signal and Power | Polyester Thermoplastic | -55 °C | 125 °C | Combo D-Sub | Copper Alloy | 10A 5A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 100 | $ 14.94 | |
Description
General part information
627-47W Series
47 (46 + 1 Coax) Position D-Sub, Combo Plug, Male Pins Connector
