627-47W1622-3T1

Active

EDAC Inc.

CONN D-SUB PLUG 47POS SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

627-47W1622-3T1

Active

EDAC Inc.

CONN D-SUB PLUG 47POS SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	627-47W1622-3T1

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	30 A, 5 A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Shielded
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	47
Number of Positions [custom]	1
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	5 (DD, D), 47W1
Voltage Rating	125 VDC

627-47W Series

...

Part	Contact Finish	Termination	Voltage Rating	Current Rating (Amps)	Connector Type	Flange Feature	Number of Positions [custom]	Number of Positions	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout	Color	Material Flammability Rating	Features	Mounting Type	Contact Type	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Contact Material	Shell Material, Finish	Contact Finish Thickness	Current Rating (Amps)
EDAC Inc. 627-47W1624-2TA	Gold	Solder	125 VDC	5 A 20 A	Male Pins Plug	Board Side (M3)	1	47	3	0.76 Ám	30 Áin	47W1 5 (DD D)	Black	UL94 V-0	Grounding Indents Shielded	Panel Mount Through Hole	Signal and Power	Polyester Thermoplastic	-55 °C	125 °C	Combo D-Sub	Copper Alloy
EDAC Inc. 627-47W1624-7TB	Gold	Solder	125 VDC		Male Pins Plug	Board Side (M3)		47	3	0.76 Ám	30 Áin	47W1 5 (DD D)	Black	UL94 V-0	Grounding Indents Shielded	Panel Mount Through Hole	Coax Signal	Polyester Thermoplastic	-55 °C	125 °C	Combo D-Sub	Copper Alloy
EDAC Inc. 627-47W1624-2N5	Gold	Solder	125 VDC	5 A 20 A	Male Pins Plug	4-40 Board Side	1	47	3	0.76 Ám	30 Áin	47W1 5 (DD D)	Black	UL94 V-0	Board Lock Grounding Indents Shielded	Through Hole	Signal and Power	Polyester Thermoplastic	-55 °C	125 °C	Combo D-Sub	Copper Alloy	Nickel Plated Steel
EDAC Inc. 627-47W1622-7TA	Gold		125 VDC		Male Pins Plug	Board Side (M3)		47	3	0.76 Ám	30 Áin	47W1 5 (DD D)	Black	UL94 V-0	Grounding Indents Shielded	Free Hanging (In-Line)	Coax Signal	Polyester Thermoplastic	-55 °C	125 °C	Combo D-Sub	Copper Alloy
EDAC Inc. 627-47W1622-3T1	Gold		125 VDC	5 A 30 A	Male Pins Plug	Housing/Shell (Unthreaded)	1	47	3	0.76 Ám	30 Áin	47W1 5 (DD D)	Black	UL94 V-0	Grounding Indents Shielded	Free Hanging (In-Line)	Signal and Power	Polyester Thermoplastic	-55 °C	125 °C	Combo D-Sub	Copper Alloy
EDAC Inc. 627-47W1224-4TE	Gold	Solder	125 VDC	5 A 40 A	Male Pins Plug	M3	1	47	3			47W1 5 (DD D)	Black	UL94 V-0	Board Lock Grounding Indents Shielded	Panel Mount Through Hole	Signal and Power	Polyester Thermoplastic	-55 °C	125 °C	Combo D-Sub	Copper Alloy		Flash
EDAC Inc. 627-47W1224-5N5	Gold	Solder	125 VDC		Male Pins Plug	4-40 Board Side		47	3			47W1 5 (DD D)	Black	UL94 V-0	Board Lock Grounding Indents Shielded	Through Hole	Coax Signal	Polyester Thermoplastic	-55 °C	125 °C	Combo D-Sub	Copper Alloy	Nickel Plated Steel	Flash
EDAC Inc. 627-47W1624-3T5	Gold	Solder	125 VDC	5 A 30 A	Male Pins Plug	4-40 Board Side	1	47	3	0.76 Ám	30 Áin	47W1 5 (DD D)	Black	UL94 V-0	Board Lock Grounding Indents Shielded	Through Hole	Signal and Power	Polyester Thermoplastic	-55 °C	125 °C	Combo D-Sub	Copper Alloy
EDAC Inc. 627-47W1224-3T2	Gold	Solder	125 VDC	5 A 30 A	Male Pins Plug	4-40 Board Side	1	47	3			47W1 5 (DD D)	Black	UL94 V-0	Grounding Indents Shielded	Panel Mount Through Hole	Signal and Power	Polyester Thermoplastic	-55 °C	125 °C	Combo D-Sub	Copper Alloy		Flash
EDAC Inc. 627-47W1624-1TD	Gold	Solder	125 VDC		Male Pins Plug	Board Side (M3)	1	47	3	0.76 Ám	30 Áin	47W1 5 (DD D)	Black	UL94 V-0	Board Lock Grounding Indents Shielded	Through Hole	Signal and Power	Polyester Thermoplastic	-55 °C	125 °C	Combo D-Sub	Copper Alloy			10A 5A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	400	$ 34.79

Description

General part information

627-47W Series

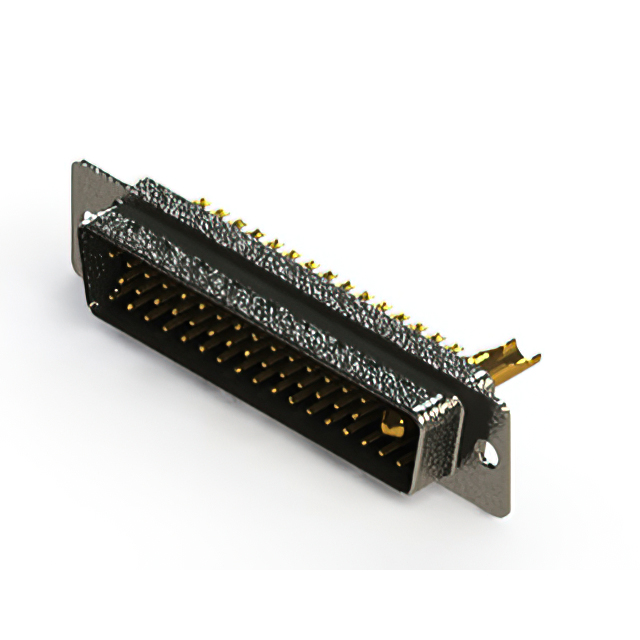

47 (46 + 1 Power) Position D-Sub, Combo Plug, Male Pins Connector
