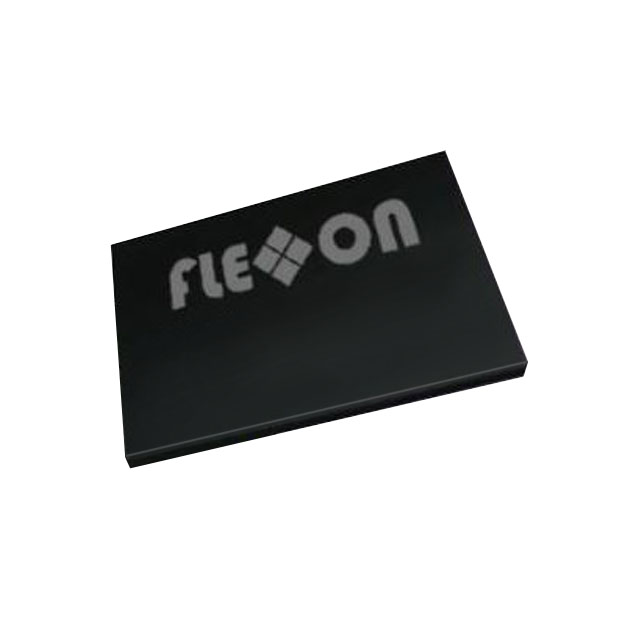

FEMC032GTTE7-T13-26

Active

Flexxon Pte Ltd

IC FLASH 256GBIT EMMC 100FBGA

Search across all available documentation for this part.

Active

Flexxon Pte Ltd

IC FLASH 256GBIT EMMC 100FBGA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 65.62

General part information

FLASH - NAND (MLC) Memory IC 256Gbit eMMC 200 MHz 100-FBGA (14x18)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	FEMC032GTTE7-T13-26	FEMC032 Series

Clock Frequency	200 MHz	200 MHz
Memory Format	FLASH	FLASH
Memory Interface	eMMC	eMMC_5.1, eMMC
Memory Organization	32 G	32 G
Memory Size	256 Gbit	256 Gbit
Memory Type	Non-Volatile	Non-Volatile
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 - 105 °C
Operating Temperature [Min]	-40 °C	-40 - -25 °C
Package / Case	100-LBGA	153-VFBGA, 100-LBGA
Supplier Device Package	-	11.5
Supplier Device Package	-	153-FBGA
Supplier Device Package	-	13
Technology	FLASH - NAND (MLC)	FLASH - NAND (TLC), FLASH - NAND (pSLC), FLASH - NAND (MLC)
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	2.7 V	2.7 V

IC FLSH 256GBIT EMMC 5.1 153FBGA

Part	Technology	Memory Interface	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Memory Organization	Package / Case	Memory Format	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Memory Size	Clock Frequency	Memory Type	Voltage - Supply [Min]	Voltage - Supply [Max]
Flexxon Pte Ltd FEMC032GBA-T740	FLASH - NAND (TLC)	eMMC_5.1	11.5	153-FBGA	13	32 G	153-VFBGA	FLASH	85 °C	-40 °C	Surface Mount	256 Gbit	200 MHz	Non-Volatile	2.7 V	3.6 V
Flexxon Pte Ltd FEMC032GBE-T740	FLASH - NAND (TLC)	eMMC_5.1	11.5	153-FBGA	13	32 G	153-VFBGA	FLASH	85 °C	-40 °C	Surface Mount	256 Gbit	200 MHz	Non-Volatile	2.7 V	3.6 V
Flexxon Pte Ltd FEMC032GCG-T340	FLASH - NAND (pSLC)	eMMC	11.5	153-FBGA	13	32 G	153-VFBGA	FLASH	85 °C	-25 °C	Surface Mount	256 Gbit	200 MHz	Non-Volatile	2.7 V	3.6 V
Flexxon Pte Ltd FEMC032G-M10	FLASH - NAND (TLC)	eMMC_5.1	11.5	153-FBGA	13	32 G	153-VFBGA	FLASH	85 °C	-25 °C	Surface Mount	256 Gbit	200 MHz	Non-Volatile	2.7 V	3.6 V
Flexxon Pte Ltd FEMC032GBE-TC40	FLASH - NAND (TLC)	eMMC	11.5	153-FBGA	13	32 G	153-VFBGA	FLASH	85 °C	-40 °C	Surface Mount	256 Gbit	200 MHz	Non-Volatile	2.7 V	3.6 V
Flexxon Pte Ltd FEMC032GBB-T740	FLASH - NAND (TLC)	eMMC_5.1	11.5	153-FBGA	13	32 G	153-VFBGA	FLASH	105 ░C	-40 °C	Surface Mount	256 Gbit	200 MHz	Non-Volatile	2.7 V	3.6 V
Flexxon Pte Ltd FEMC032GBG-T340	FLASH - NAND (TLC)	eMMC	11.5	153-FBGA	13	32 G	153-VFBGA	FLASH	85 °C	-25 °C	Surface Mount	256 Gbit	200 MHz	Non-Volatile	2.7 V	3.6 V
Flexxon Pte Ltd FEMC032GTTE7-T13-26	FLASH - NAND (MLC)	eMMC				32 G	100-LBGA	FLASH	85 °C	-40 °C	Surface Mount	256 Gbit	200 MHz	Non-Volatile	2.7 V	3.6 V
