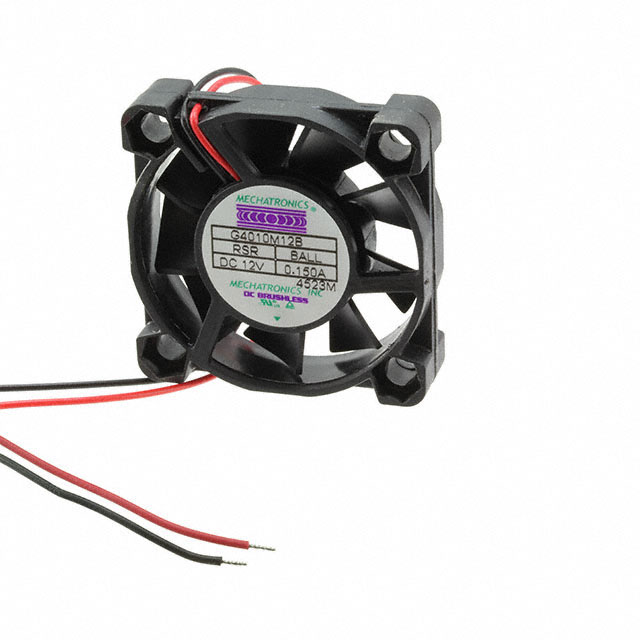

G4010M12B-RSR

Active

Mechatronics Fan Group

FAN AXIAL 40X10.3MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDC Lead Wire Specs Datasheet +1

G4010M12B-RSR

Active

Mechatronics Fan Group

FAN AXIAL 40X10.3MM 12VDC WIRE

Deep-Dive with AI

DocumentsDC Lead Wire Specs Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.80
		10	$ 9.63
		25	$ 9.20
		50	$ 8.89
		200	$ 8.29
		400	$ 8.01
		600	$ 7.85

Description

General part information

G4010 Series

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 7.0 CFM (0.196m³/min) 2 Wire Leads

Documents

Technical documentation and resources

DC Lead Wire Specs

Datasheet

AC/DC Fans & Blowers Catalog

Datasheet

Specification	G4010M12B-RSR	G4010 Series

Air Flow	7 CFM	5 - 9 CFM
Air Flow	0.196 mł/min	0.14 - 0.252 m³/min
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball, Sleeve
Current Rating (Amps)	150 mA	0.09 - 400 mA
Fan Type	Tubeaxial	Tubeaxial
Features	Thermal Overload Protector (TOP)	Thermal Overload Protector (TOP), Locked Rotor Sensor, Alarm Sensor, Speed Sensor (Tach)
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Noise	28 dB	21 - 41 dB(A)
RPM	6000 RPM	4000 - 10000 RPM
Size / Dimension	Square	Square
Size / Dimension [x]	40 mm	40 mm
Size / Dimension [z]	40 mm	40 mm
Static Pressure	-	0.07 - 0.39 in H2O
Static Pressure	-	17.4 - 97.1 Pa
Termination	2 Wire Leads	2 Wire Leads, 4 Wire Leads, 3 Wire Leads
Voltage - Rated	12 VDC	5 - 24 VDC
Weight	11.79 g	11.79 g
Weight	0.026 lb	0.026 lb
Width [y]	10.3 mm	10.3 mm

Part

Noise

Termination

Fan Type

Size / Dimension [z]

Size / Dimension

Size / Dimension [x]

Material - Blade

Weight

Width [y]

Approval Agency

RPM

Current Rating (Amps)

Bearing Type

Air Flow

Voltage - Rated

Features

Static Pressure

Mechatronics Fan Group

G4010L12B-RSR

22 dB(A)

2 Wire Leads

Tubeaxial

40 mm

Square

40 mm

Polybutylene Terephthalate (PBT)

11.79 g

0.026 lb

10.3 mm

CE, cUL, TUV, UL

5000 RPM

100 mA

Ball

6 CFM

0.168 m³/min

12 VDC

Thermal Overload Protector (TOP)

0.11 in H2O

27.4 Pa

Mechatronics Fan Group

G4010M05B2-RSR-WS

28 dB

4 Wire Leads

Tubeaxial

40 mm

Square

40 mm

Polybutylene Terephthalate (PBT)

11.79 g

0.026 lb

10.3 mm

CE, cUL, TUV, UL

6000 RPM

0.24 A

Ball

7 CFM

0.196 mł/min

5 V

Alarm Sensor, Locked Rotor Sensor, Thermal Overload Protector (TOP)

Mechatronics Fan Group

G4010E24B-RSR

41 dB

2 Wire Leads

Tubeaxial

40 mm

Square

40 mm

Polybutylene Terephthalate (PBT)

11.79 g

0.026 lb

10.3 mm

CE, cUL, TUV, UL

10000 RPM

0.25 A

Ball

24 VDC

Thermal Overload Protector (TOP)

0.39 in H2O

97.1 Pa

Mechatronics Fan Group

G4010H05B-RSR

35 dB

2 Wire Leads

Tubeaxial

40 mm

Square

40 mm

Polybutylene Terephthalate (PBT)

11.79 g

0.026 lb

10.3 mm

CE, cUL, TUV, UL

8000 RPM

0.22 A

Ball

9 CFM

0.252 mł/min

5 V

Thermal Overload Protector (TOP)

0.25 in H2O

62.3 Pa

Mechatronics Fan Group

G4010M05B-RSR

28 dB

2 Wire Leads

Tubeaxial

40 mm

Square

40 mm

Polybutylene Terephthalate (PBT)

11.79 g

0.026 lb

10.3 mm

CE, cUL, TUV, UL

6000 RPM

0.24 A

Ball

7 CFM

0.196 mł/min

5 V

Thermal Overload Protector (TOP)

Mechatronics Fan Group

G4010M12B-RSR

28 dB

2 Wire Leads

Tubeaxial

40 mm

Square

40 mm

Polybutylene Terephthalate (PBT)

11.79 g

0.026 lb

10.3 mm

CE, cUL, TUV, UL

6000 RPM

150 mA

Ball

7 CFM

0.196 mł/min

12 VDC

Thermal Overload Protector (TOP)

Mechatronics Fan Group

G4010E12B1-RSR-WS-S

41 dB

3 Wire Leads

Tubeaxial

40 mm

Square

40 mm

Polybutylene Terephthalate (PBT)

11.79 g

0.026 lb

10.3 mm

CE, cUL, TUV, UL

10000 RPM

0.35 A

Ball

12 VDC

Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)

0.39 in H2O

97.1 Pa

Mechatronics Fan Group

G4010L24B-RSR

22 dB(A)

2 Wire Leads

Tubeaxial

40 mm

Square

40 mm

Polybutylene Terephthalate (PBT)

11.79 g

0.026 lb

10.3 mm

CE, cUL, TUV, UL

5000 RPM

70 mA

Ball

24 VDC

Thermal Overload Protector (TOP)

0.11 in H2O

27.4 Pa

Mechatronics Fan Group

G4010S05B-RSR

21 dB(A)

2 Wire Leads

Tubeaxial

40 mm

Square

40 mm

Polybutylene Terephthalate (PBT)

11.79 g

0.026 lb

10.3 mm

CE, cUL, TUV, UL

4000 RPM

0.09 A

Ball

5 CFM

0.14 mł/min

5 V

Thermal Overload Protector (TOP)

0.07 in H2O

17.4 Pa

Mechatronics Fan Group

G4010H05B1-RSR-WS-S

35 dB

4 Wire Leads

Tubeaxial

40 mm

Square

40 mm

Polybutylene Terephthalate (PBT)

11.79 g

0.026 lb

10.3 mm

CE, cUL, TUV, UL

8000 RPM

400 mA

Ball

9 CFM

0.252 mł/min

5 V

Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)

0.25 in H2O

62.3 Pa

Part	Noise	Termination	Fan Type	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Material - Blade	Weight	Weight	Width [y]	Approval Agency	RPM	Current Rating (Amps)	Bearing Type	Air Flow	Air Flow	Voltage - Rated	Features	Static Pressure	Static Pressure
Mechatronics Fan Group G4010L12B-RSR	22 dB(A)	2 Wire Leads	Tubeaxial	40 mm	Square	40 mm	Polybutylene Terephthalate (PBT)	11.79 g	0.026 lb	10.3 mm	CE, cUL, TUV, UL	5000 RPM	100 mA	Ball	6 CFM	0.168 m³/min	12 VDC	Thermal Overload Protector (TOP)	0.11 in H2O	27.4 Pa
Mechatronics Fan Group G4010M05B2-RSR-WS	28 dB	4 Wire Leads	Tubeaxial	40 mm	Square	40 mm	Polybutylene Terephthalate (PBT)	11.79 g	0.026 lb	10.3 mm	CE, cUL, TUV, UL	6000 RPM	0.24 A	Ball	7 CFM	0.196 mł/min	5 V	Alarm Sensor, Locked Rotor Sensor, Thermal Overload Protector (TOP)
Mechatronics Fan Group G4010E24B-RSR	41 dB	2 Wire Leads	Tubeaxial	40 mm	Square	40 mm	Polybutylene Terephthalate (PBT)	11.79 g	0.026 lb	10.3 mm	CE, cUL, TUV, UL	10000 RPM	0.25 A	Ball			24 VDC	Thermal Overload Protector (TOP)	0.39 in H2O	97.1 Pa
Mechatronics Fan Group G4010H05B-RSR	35 dB	2 Wire Leads	Tubeaxial	40 mm	Square	40 mm	Polybutylene Terephthalate (PBT)	11.79 g	0.026 lb	10.3 mm	CE, cUL, TUV, UL	8000 RPM	0.22 A	Ball	9 CFM	0.252 mł/min	5 V	Thermal Overload Protector (TOP)	0.25 in H2O	62.3 Pa
Mechatronics Fan Group G4010M05B-RSR	28 dB	2 Wire Leads	Tubeaxial	40 mm	Square	40 mm	Polybutylene Terephthalate (PBT)	11.79 g	0.026 lb	10.3 mm	CE, cUL, TUV, UL	6000 RPM	0.24 A	Ball	7 CFM	0.196 mł/min	5 V	Thermal Overload Protector (TOP)
Mechatronics Fan Group G4010M12B-RSR	28 dB	2 Wire Leads	Tubeaxial	40 mm	Square	40 mm	Polybutylene Terephthalate (PBT)	11.79 g	0.026 lb	10.3 mm	CE, cUL, TUV, UL	6000 RPM	150 mA	Ball	7 CFM	0.196 mł/min	12 VDC	Thermal Overload Protector (TOP)
Mechatronics Fan Group G4010E12B1-RSR-WS-S	41 dB	3 Wire Leads	Tubeaxial	40 mm	Square	40 mm	Polybutylene Terephthalate (PBT)	11.79 g	0.026 lb	10.3 mm	CE, cUL, TUV, UL	10000 RPM	0.35 A	Ball			12 VDC	Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)	0.39 in H2O	97.1 Pa
Mechatronics Fan Group G4010L24B-RSR	22 dB(A)	2 Wire Leads	Tubeaxial	40 mm	Square	40 mm	Polybutylene Terephthalate (PBT)	11.79 g	0.026 lb	10.3 mm	CE, cUL, TUV, UL	5000 RPM	70 mA	Ball			24 VDC	Thermal Overload Protector (TOP)	0.11 in H2O	27.4 Pa
Mechatronics Fan Group G4010S05B-RSR	21 dB(A)	2 Wire Leads	Tubeaxial	40 mm	Square	40 mm	Polybutylene Terephthalate (PBT)	11.79 g	0.026 lb	10.3 mm	CE, cUL, TUV, UL	4000 RPM	0.09 A	Ball	5 CFM	0.14 mł/min	5 V	Thermal Overload Protector (TOP)	0.07 in H2O	17.4 Pa
Mechatronics Fan Group G4010H05B1-RSR-WS-S	35 dB	4 Wire Leads	Tubeaxial	40 mm	Square	40 mm	Polybutylene Terephthalate (PBT)	11.79 g	0.026 lb	10.3 mm	CE, cUL, TUV, UL	8000 RPM	400 mA	Ball	9 CFM	0.252 mł/min	5 V	Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP)	0.25 in H2O	62.3 Pa
