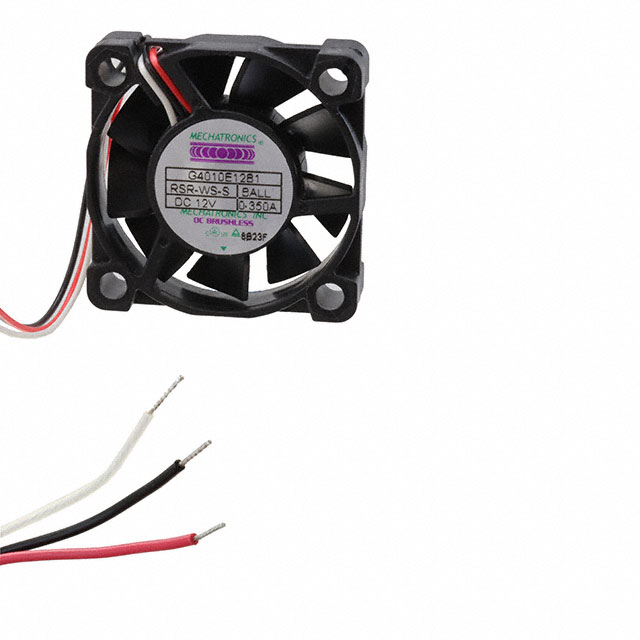

G4010E12B1-RSR-WS-S

Active

Mechatronics Bearing Group

FAN AXIAL 40X10.3MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDC Lead Wire Specs AC/DC Fans & Blowers Catalog +1

G4010E12B1-RSR-WS-S

Active

Mechatronics Bearing Group

FAN AXIAL 40X10.3MM 12VDC WIRE

Deep-Dive with AI

DocumentsDC Lead Wire Specs AC/DC Fans & Blowers Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G4010E12B1-RSR-WS-S

Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.35 A
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP), Alarm Sensor, Speed Sensor (Tach)
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	41 dB
RPM	10000 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	0.39 in H2O
Static Pressure	97.1 Pa
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Weight	11.79 g
Weight	0.026 lb
Width [y]	10.3 mm

G4010 Series

Part	Features	Material - Blade	Bearing Type	Voltage - Rated	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Noise	Termination	Current Rating (Amps)	Approval Agency	Static Pressure	Static Pressure	RPM	Width [y]	Weight	Weight	Fan Type	Air Flow	Air Flow
Mechatronics Bearing Group G4010L24B-RSR	Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	Ball	24 VDC	40 mm	Square	40 mm	22 dB(A)	2 Wire Leads	70 mA	CE cUL TUV UL	0.11 in H2O	27.4 Pa	5000 RPM	10.3 mm	11.79 g	0.026 lb	Tubeaxial
Mechatronics Bearing Group G4010M12B-RSR	Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	Ball	12 VDC	40 mm	Square	40 mm	28 dB	2 Wire Leads	150 mA	CE cUL TUV UL			6000 RPM	10.3 mm	11.79 g	0.026 lb	Tubeaxial	7 CFM	0.196 mł/min
Mechatronics Bearing Group G4010H05B1-RSR-WS-S	Alarm Sensor Speed Sensor (Tach) Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	Ball	5 V	40 mm	Square	40 mm	35 dB	4 Wire Leads	400 mA	CE cUL TUV UL	0.25 in H2O	62.3 Pa	8000 RPM	10.3 mm	11.79 g	0.026 lb	Tubeaxial	9 CFM	0.252 mł/min
Mechatronics Bearing Group G4010S05B-RSR	Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	Ball	5 V	40 mm	Square	40 mm	21 dB(A)	2 Wire Leads	0.09 A	CE cUL TUV UL	0.07 in H2O	17.4 Pa	4000 RPM	10.3 mm	11.79 g	0.026 lb	Tubeaxial	5 CFM	0.14 mł/min
Mechatronics Bearing Group G4010L12B-RSR	Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	Ball	12 VDC	40 mm	Square	40 mm	22 dB(A)	2 Wire Leads	100 mA	CE cUL TUV UL	0.11 in H2O	27.4 Pa	5000 RPM	10.3 mm	11.79 g	0.026 lb	Tubeaxial	6 CFM	0.168 m³/min
Mechatronics Bearing Group G4010H12B1-RSR-WS	Alarm Sensor Speed Sensor (Tach) Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	Ball	12 VDC	40 mm	Square	40 mm	35 dB	4 Wire Leads	0.22 A	CE cUL TUV UL	0.25 in H2O	62.3 Pa	8000 RPM	10.3 mm	11.79 g	0.026 lb	Tubeaxial	9 CFM	0.252 mł/min
Mechatronics Bearing Group G4010H05B-RSR	Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	Ball	5 V	40 mm	Square	40 mm	35 dB	2 Wire Leads	0.22 A	CE cUL TUV UL	0.25 in H2O	62.3 Pa	8000 RPM	10.3 mm	11.79 g	0.026 lb	Tubeaxial	9 CFM	0.252 mł/min
Mechatronics Bearing Group G4010H24B-RSR	Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	Ball	24 VDC	40 mm	Square	40 mm	35 dB	2 Wire Leads		CE cUL TUV UL	0.25 in H2O	62.3 Pa	8000 RPM	10.3 mm	11.79 g	0.026 lb	Tubeaxial	9 CFM	0.252 mł/min
Mechatronics Bearing Group G4010M05D-RSR	Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	Sleeve	5 V	40 mm	Square	40 mm	28 dB	2 Wire Leads	0.24 A	CE cUL TUV UL			6000 RPM	10.3 mm	11.79 g	0.026 lb	Tubeaxial	7 CFM	0.196 mł/min
Mechatronics Bearing Group G4010L12D-RSR	Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	Sleeve	12 VDC	40 mm	Square	40 mm	22 dB(A)	2 Wire Leads	100 mA	CE cUL TUV UL	0.11 in H2O	27.4 Pa	5000 RPM	10.3 mm	11.79 g	0.026 lb	Tubeaxial	6 CFM	0.168 m³/min

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.17
		10	$ 11.61
		25	$ 10.92
		50	$ 10.51
		100	$ 9.68
		250	$ 9.05
		500	$ 8.92

Description

General part information

G4010 Series

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 11.0 CFM (0.308m³/min) 3 Wire Leads
