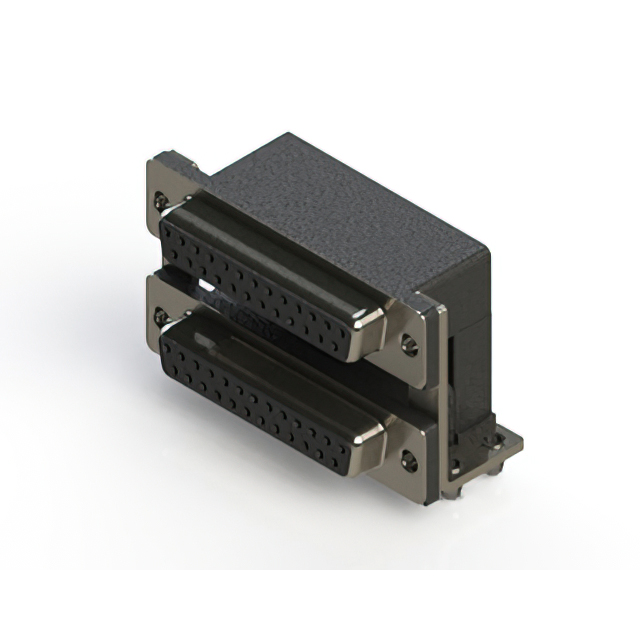

662-025-364-047

Active

EDAC Inc.

662 SERIES RIGHT ANGLE DUAL D-SU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

662-025-364-047

Active

EDAC Inc.

662 SERIES RIGHT ANGLE DUAL D-SU

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	662-025-364-047

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Mounting Brackets, Shielded, Board Lock
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	25
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	3 (DB, B)
Termination	Solder

662-025 Series

...

Part	Connector Style	Number of Positions	Material Flammability Rating	Shell Material, Finish	Dielectric Material	Features	Number of Rows	Contact Type	Color	Connector Type	Shell Size, Connector Layout	Backset Spacing	Backset Spacing	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Contact Finish Thickness	Flange Feature	Contact Finish	Mounting Type	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 662-025-264-056	D-Sub - Stacked	25	UL94 V-0	Nickel Plated Steel	Polyester Thermoplastic	Mounting Brackets Shielded	2	Signal	Black	Receptacle Female Sockets	3 (DB B)	8.08 mm	0.318 "	Solder	85 °C	-55 °C	3 A	Flash	Female Screwlock (4-40) Mating Side	Gold	Through Hole Right Angle
EDAC Inc. 662-025-264-048	D-Sub - Stacked	25	UL94 V-0	Nickel Plated Steel	Polyester Thermoplastic	Board Lock Mounting Brackets Shielded	2	Signal	Black	Receptacle Female Sockets	3 (DB B)	8.08 mm	0.318 "	Solder	85 °C	-55 °C	3 A	Flash	Housing/Shell (4-40)	Gold	Through Hole Right Angle
EDAC Inc. 662-025-264-00C	D-Sub - Stacked	25	UL94 V-0	Nickel Plated Steel	Polyester Thermoplastic	Mounting Brackets Shielded	2	Signal	Black	Receptacle Female Sockets	3 (DB B)	8.08 mm	0.318 "	Solder	85 °C	-55 °C	3 A	Flash	Housing/Shell (M3)	Gold	Through Hole Right Angle
EDAC Inc. 662-025-664-048	D-Sub - Stacked	25	UL94 V-0	Nickel Plated Steel	Polyester Thermoplastic	Board Lock Mounting Brackets Shielded	2	Signal	Black	Receptacle Female Sockets	3 (DB B)	8.08 mm	0.318 "	Solder	85 °C	-55 °C	3 A		Housing/Shell (4-40)	Gold	Through Hole Right Angle	0.76 Ám	30 Áin
EDAC Inc. 662-025-364-033	D-Sub - Stacked	25	UL94 V-0	Nickel Plated Steel	Polyester Thermoplastic	Board Lock Mounting Brackets Shielded	2	Signal	Black	Receptacle Female Sockets	3 (DB B)	8.08 mm	0.318 "	Solder	85 °C	-55 °C	3 A		Female Screwlock (4-40) Mating Side	Gold	Through Hole Right Angle	0.38 µm	15 µin
EDAC Inc. 662-025-664-050	D-Sub - Stacked	25	UL94 V-0	Nickel Plated Steel	Polyester Thermoplastic	Mounting Brackets Shielded	2	Signal	Black	Receptacle Female Sockets	3 (DB B)	8.08 mm	0.318 "	Solder	85 °C	-55 °C	3 A		Housing/Shell (Unthreaded)	Gold	Through Hole Right Angle	0.76 Ám	30 Áin
EDAC Inc. 662-025-364-047	D-Sub - Stacked	25	UL94 V-0	Nickel Plated Steel	Polyester Thermoplastic	Board Lock Mounting Brackets Shielded	2	Signal	Black	Receptacle Female Sockets	3 (DB B)	8.08 mm	0.318 "	Solder	85 °C	-55 °C	3 A		Housing/Shell (Unthreaded)	Gold	Through Hole Right Angle	0.38 µm	15 µin
EDAC Inc. 662-025-364-039	D-Sub - Stacked	25	UL94 V-0	Nickel Plated Steel	Polyester Thermoplastic	Board Lock Mounting Brackets Shielded	2	Signal	Black	Receptacle Female Sockets	3 (DB B)	8.08 mm	0.318 "	Solder	85 °C	-55 °C	3 A		Female Screwlock (4-40) Mating Side	Gold	Through Hole Right Angle	0.38 µm	15 µin
EDAC Inc. 662-025-664-040	D-Sub - Stacked	25	UL94 V-0	Nickel Plated Steel	Polyester Thermoplastic	Board Lock Mounting Brackets Shielded	2	Signal	Black	Receptacle Female Sockets	3 (DB B)	8.08 mm	0.318 "	Solder	85 °C	-55 °C	3 A		Housing/Shell (Unthreaded)	Gold	Through Hole Right Angle	0.76 Ám	30 Áin
EDAC Inc. 662-025-264-055	D-Sub - Stacked	25	UL94 V-0	Nickel Plated Steel	Polyester Thermoplastic	Mounting Brackets Shielded	2	Signal	Black	Receptacle Female Sockets	3 (DB B)	8.08 mm	0.318 "	Solder	85 °C	-55 °C	3 A	Flash	Housing/Shell (4-40)	Gold	Through Hole Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 10.15

Description

General part information

662-025 Series

25, 25 Position D-Sub - Stacked Receptacle, Female Sockets Connector
