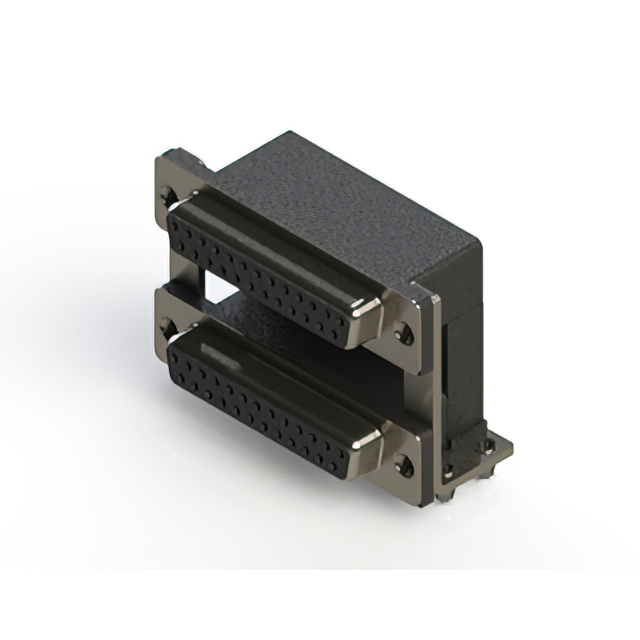

662-025-264-048

Active

EDAC Inc.

662 SERIES RIGHT ANGLE DUAL D-SU

Description Specifications Series Pricing CAD Documents

Description

General part information

662-025 Series

25, 25 Position D-Sub - Stacked Receptacle, Female Sockets Connector

Technical Specifications

Parameters and characteristics for this part

Specification	662-025-264-048

Backset Spacing	0.318 in
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Type	Signal
Current Rating (Per Contact)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded, Board Lock, Mounting Brackets
Finish	Nickel Plated
Flange Feature	Shell (4-40), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	25
Number of Positions	25
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size, Connector Layout	3 (DB, B)
Termination	Solder

662-025 Series

...

Part	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Current Rating (Per Contact)	Contact Type	Features	Contact Finish	Shell Material	Finish	Number of Positions	Number of Positions	Termination	Connector Style	Backset Spacing	Connector Type	Shell Size, Connector Layout	Flange Feature	Material Flammability Rating	Number of Rows	Mounting Type	Color	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)
EDAC Inc. 662-025-264-056	0	Flash	Flash	3 A	Signal	Mounting Brackets Shielded	Gold	Steel	Nickel Plated	25	25	Solder	D-Sub - Stacked	0.318 in	Female Sockets Receptacle	3 (DB B)	Female Screwlock (4-40) Mating Side	UL94 V-0	2	Right Angle Through Hole	Black	Polyester Thermoplastic	-55 °C	85 °C
EDAC Inc. 662-025-264-048	0	Flash	Flash	3 A	Signal	Board Lock Mounting Brackets Shielded	Gold	Steel	Nickel Plated	25	25	Solder	D-Sub - Stacked	0.318 in	Female Sockets Receptacle	3 (DB B)	Housing Shell (4-40)	UL94 V-0	2	Right Angle Through Hole	Black	Polyester Thermoplastic	-55 °C	85 °C
EDAC Inc. 662-025-264-00C	0	Flash	Flash	3 A	Signal	Mounting Brackets Shielded	Gold	Steel	Nickel Plated	25	25	Solder	D-Sub - Stacked	0.318 in	Female Sockets Receptacle	3 (DB B)	Housing Shell (M3)	UL94 V-0	2	Right Angle Through Hole	Black	Polyester Thermoplastic	-55 °C	85 °C
EDAC Inc. 662-025-664-048	30 µin			3 A	Signal	Board Lock Mounting Brackets Shielded	Gold	Steel	Nickel Plated	25	25	Solder	D-Sub - Stacked	0.318 in	Female Sockets Receptacle	3 (DB B)	Housing Shell (4-40)	UL94 V-0	2	Right Angle Through Hole	Black	Polyester Thermoplastic	-55 °C	85 °C
EDAC Inc. 662-025-364-033	15 µin			3 A	Signal	Board Lock Mounting Brackets Shielded	Gold	Steel	Nickel Plated	25	25	Solder	D-Sub - Stacked	0.318 in	Female Sockets Receptacle	3 (DB B)	Female Screwlock (4-40) Mating Side	UL94 V-0	2	Right Angle Through Hole	Black	Polyester Thermoplastic	-55 °C	85 °C
EDAC Inc. 662-025-364-053	15 µin			3 A	Signal	Mounting Brackets Shielded	Gold	Steel	Nickel Plated	25	25	Solder	D-Sub - Stacked	0.318 in	Female Sockets Receptacle	3 (DB B)	Female Screwlock (4-40) Mating Side	UL94 V-0	2	Right Angle Through Hole	Black	Polyester Thermoplastic	-55 °C	85 °C
EDAC Inc. 662-025-664-037	30 µin			3 A	Signal	Board Lock Mounting Brackets Shielded	Gold	Steel	Nickel Plated	25	25	Solder	D-Sub - Stacked	0.318 in	Female Sockets Receptacle	3 (DB B)	Housing Shell (Unthreaded)	UL94 V-0	2	Right Angle Through Hole	Black	Polyester Thermoplastic	-55 °C	85 °C
EDAC Inc. 662-025-664-050	30 µin			3 A	Signal	Mounting Brackets Shielded	Gold	Steel	Nickel Plated	25	25	Solder	D-Sub - Stacked	0.318 in	Female Sockets Receptacle	3 (DB B)	Housing Shell (Unthreaded)	UL94 V-0	2	Right Angle Through Hole	Black	Polyester Thermoplastic	-55 °C	85 °C
EDAC Inc. 662-025-364-047	15 µin			3 A	Signal	Board Lock Mounting Brackets Shielded	Gold	Steel	Nickel Plated	25	25	Solder	D-Sub - Stacked	0.318 in	Female Sockets Receptacle	3 (DB B)	Housing Shell (Unthreaded)	UL94 V-0	2	Right Angle Through Hole	Black	Polyester Thermoplastic	-55 °C	85 °C
EDAC Inc. 662-025-364-039	15 µin			3 A	Signal	Board Lock Mounting Brackets Shielded	Gold	Steel	Nickel Plated	25	25	Solder	D-Sub - Stacked	0.318 in	Female Sockets Receptacle	3 (DB B)	Female Screwlock (4-40) Mating Side	UL94 V-0	2	Right Angle Through Hole	Black	Polyester Thermoplastic	-55 °C	85 °C
