012528WF018

Active

Essentra Components

MACH SCREW PAN PHILLIPS 1/4"-28

Search across all available documentation for this part.

Active

Essentra Components

MACH SCREW PAN PHILLIPS 1/4"-28

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 0.07

General part information

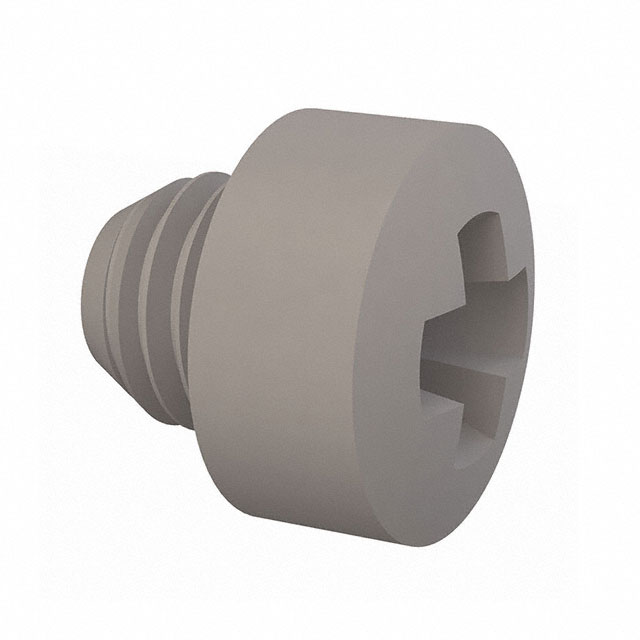

1/4"-28 Pan Head Machine Screw Phillips Drive Nylon

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

MACH SCREW PAN PHILLIPS 1/4"-28

Part	Type	Length - Below Head [x]	Length - Below Head [x]	Material	Screw Head Type	Drive Type	Thread Size	Length - Below Head	Length - Below Head	Length - Below Head	Length - Overall [x]	Length - Overall [x]	Length - Overall	Length - Overall
Essentra Components 012528WF018	Machine Screw	4.76 mm	0.188 in	Nylon	Pan Head	Phillips	1/4"-28
Essentra Components 012528WF075	Machine Screw			Nylon	Pan Head	Phillips	1/4"-28	0.75 "	19.05 mm	0.75 "	1.158 in	29.41 mm
Essentra Components 012528WF037	Machine Screw			Nylon	Pan Head	Phillips	1/4"-28	9.53 mm	0.375 "	0.375 "	0.783 in	19.89 mm
Essentra Components 012528WF025	Machine Screw			Nylon	Pan Head	Phillips	1/4"-28	0.25 in	6.35 mm	0.25 in	0.658 in	16.71 mm
Essentra Components 012528WF062	Machine Screw			Nylon	Pan Head	Phillips	1/4"-28	0.625 in	15.88 mm	0.625 in			26.24 mm	1.033 in
