012528WF062

Active

Essentra Components

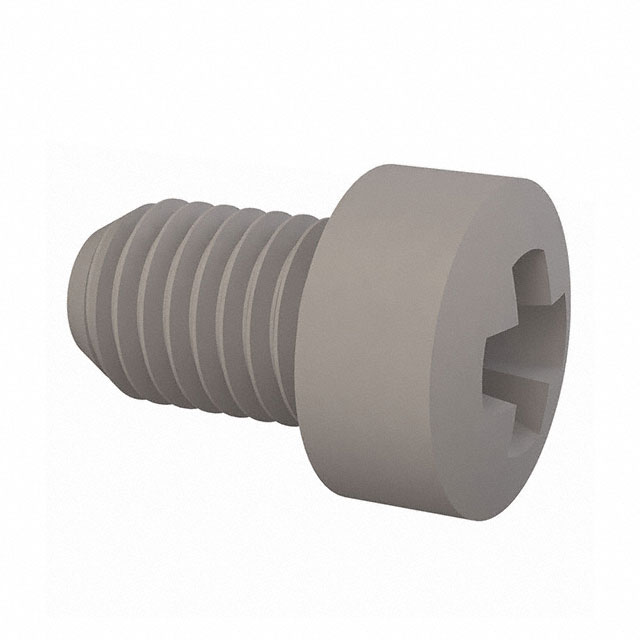

FILLISTER PHILLIPS SCREW 1/4-28

Search across all available documentation for this part.

Active

Essentra Components

FILLISTER PHILLIPS SCREW 1/4-28

Technical Specifications

Parameters and characteristics commom to parts in this series

MACH SCREW PAN PHILLIPS 1/4"-28

Part	Type	Length - Below Head [x]	Length - Below Head [x]	Material	Screw Head Type	Drive Type	Thread Size	Length - Below Head	Length - Below Head	Length - Below Head	Length - Overall [x]	Length - Overall [x]	Length - Overall	Length - Overall
Essentra Components 012528WF018	Machine Screw	4.76 mm	0.188 in	Nylon	Pan Head	Phillips	1/4"-28
Essentra Components 012528WF075	Machine Screw			Nylon	Pan Head	Phillips	1/4"-28	0.75 "	19.05 mm	0.75 "	1.158 in	29.41 mm
Essentra Components 012528WF037	Machine Screw			Nylon	Pan Head	Phillips	1/4"-28	9.53 mm	0.375 "	0.375 "	0.783 in	19.89 mm
Essentra Components 012528WF025	Machine Screw			Nylon	Pan Head	Phillips	1/4"-28	0.25 in	6.35 mm	0.25 in	0.658 in	16.71 mm
Essentra Components 012528WF062	Machine Screw			Nylon	Pan Head	Phillips	1/4"-28	0.625 in	15.88 mm	0.625 in			26.24 mm	1.033 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 0.08

General part information

1/4"-28 Pan Head Machine Screw Phillips Drive Nylon

Technical documentation and resources

No documents available
