| 1st Connector Mounting Type | - | Free Hanging (In-Line) |
| 1st Connector Type | - | WECo Male, Mini-WECo Male |
| 2nd Connector Mounting Type | - | Free Hanging (In-Line) |
| 2nd Connector Type | - | Mini-WECo Male |
| Accessory Type | - | Shorting, Cap (Cover), Sleeve |

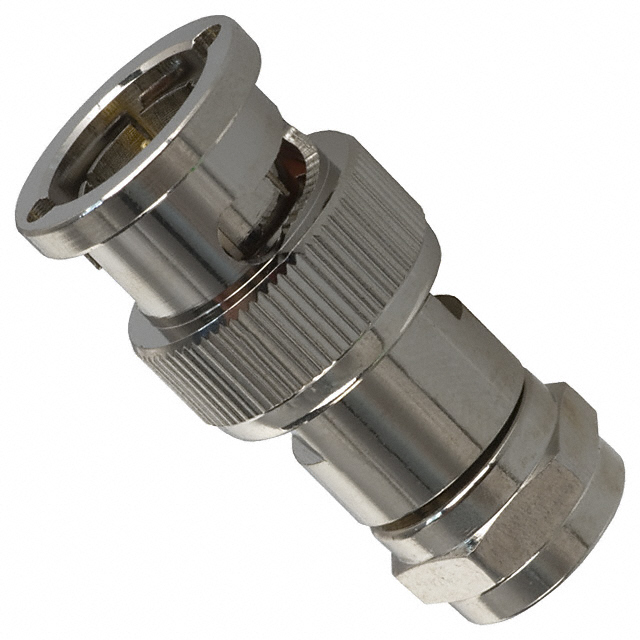

| Adapter Series | BNC to F | N to N, SMA to TNC, BNC to F, N to TNC, BNC to BNC Triaxial, BNC to WECo, SMA to RP-SMA, BNC to SMA, SMA to SMA, F to F, BNC to N, BNC to BNC, Dual, N to UHF, N to N, Dual, TNC to TNC, BNC to TNC, BNC Triaxial to BNC Triaxial, SMA to SMB, N to 7/16 DIN, UHF to UHF, SMA to SMA, Dual |
| Adapter Type | Plug to Plug | Jack to Jack, Plug to Plug, Plug to Jack |
| Body Finish | Nickel | Nickel, Gold, Black Nickel, White Bronze, Silver |
| Body Material | Brass | Brass, Beryllium Copper, Stainless Steel, Steel |
| Cable Group | - | Belden 1694A, RG-6, RG-178, 225, 214, 165, 144, 216, 9, 213, RG-8, RG-174, 316, 11, 63, 87A, Belden 9272, 108A, RG-108, 188, 188A, RG-179, 142, 55A, 223, 142A, RG-55, 400, RG-141, 187, RG-142, RG-59A, 210, 62, 59B, 179, RG-59B, RG-59, 62A, 62B, 62C, 59A, RG-58, 141, 58, 55B, 141A, 142B, 58C, RG-188, 179A, 187A, 179B, Belden 9222, RG-58C, 58A, RG-405 (.085" Semi Rigid), Belden 1505A, Belden 1855A, RG-214, 393 |
| Cable Group | - | 141 - 400 |
| Cable Type | - | Round |
| Center Contact Finish | - | Gold |
| Center Contact Material | Brass | Phosphor Bronze, Beryllium Copper, Brass, Steel |
| Center Contact Plating | Gold | Gold, Nickel, Silver |
| Center Gender | Male to Male | Female to Female, Male to Male |
| Color | - | Black, Silver, Gold, Multiple, Red |
| Connector Style | - | SMA, BNC, MCX, N Type, MMCX, SMB, F Type, UHF, Twinaxial, Triaxial, Standard, RP-SMA, TNC |
| Connector Type | - | Receptacle, Female Socket, Male Pin, Plug, Receptacle, Female Sockets, Jack, Female Sockets, Male Pins |
| Contact Finish | - | Gold |
| Contact Finish - Mating | - | Silver, Gold, Nickel |
| Contact Material | - | Brass, Beryllium Copper |
| Contact Termination | - | Solder, Crimp, Push On, Solder Cup, Solder Eyelet |
| Conversion Type | Between Series | Same Series, Between Series |
| Convert From (Adapter End) | BNC Plug, Male Pin | N Jack, Female Socket, SMA Jack, BNC Plug, Male Pin, N Plug, Male Pin, BNC Triaxial Plug, Male Pin, BNC Jack, SMA Plug, Male Pin, F Plug, Male Pin, UHF Plug, Male Pin, BNC Triaxial Jack, Female Socket, Female Sockets, SMB Plug, F Jack, TNC Jack, Female Socket |
| Convert To (Adapter End) | Male Pin, F Plug | Female Socket, N Jack, TNC Jack, Male Pin, F Plug, BNC Jack, WECo, Mini Plug, RP-SMA Plug, BNC Triaxial Jack, Female Socket, SMA Jack, TNC Plug, F Jack, Female Socket (2), N Plug, Female Sockets, SMB Jack, UHF Jack, 7/16 Plug, SMA Plug, BNC Plug, 7/16 Jack |
| Current Rating (Amps) | - | 15 A |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE), Polybutylene Terephthalate (PBT), Polystyrene (PS), Polyoxymethylene (POM) Acetal, Polypropylene (PP) |
| Fastening Type | Bayonet Lock, Threaded | Bayonet Lock, Threaded, Latch Lock, Snap-On, Push-Pull, Detent Lock |
| Features | - | Extended Insulation, Isolated, Strain Relief, Cable Clamp, Three Lug, Chain, Field Installable, Color Coded, Filter |
| For Use With/Related Products | - | BNC Jacks, SMA Jacks, BNC Plugs |
| Frequency - Max [Max] | 1.5 GHz | 1 - 6000 GHz |
| Housing Color | - | Gold, Black, Silver, White |
| Housing Finish | - | Nickel |
| Housing Material | - | Zinc Die Cast |
| Impedance | 75 Ohms | 50 - 75 Ohms |
| Impedance | - | Non-Constant |
| Includes | - | 1 Nut, 1 Connector, 1 Lockwasher, 1 Ferrule, 1 Contact, Ferrule, Insulator, Connector, End Cap, 1 Braid Clamp, 1 Washer, 1 Gasket, 1 Clamp, 2 Ferrules, 2 Insulators, 1 Bushing, 2 Contacts, 1 Heat Shrink, 1 End Cap, 1 Connector, Contact, 3 Insulators, 2 Gaskets, 1 Sleeve, 2 Braid Clamps, 2 Retainers, Contact, 7 pcs, 1 Spacer, 2 Washers, 1 Retainer, Washer, Nut, 1 Outer Contact, 2 Sleeves, 1 Insulator, 1 Solder Tag |
| Includes | - | 1 - 6 |
| Insertion Loss | - | 0.01 - 0.2 dB |
| Length | - | 2.44 m |
| Length | - | 8 ft |
| Mating Cycles | 500 | 500 |
| Mounting Feature | - | Bulkhead, Flange, Bulkhead - Rear Side Nut, Bulkhead - Front Side Nut |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle, Board Edge, Through Hole, End Launch, Through Hole, Right Angle, Surface Mount, Panel Mount, Free Hanging, Cap |
| Number of Ports | - | 1 - 2 |
| Number of Positions (Convert From) | - | 3 |
| Operating Temperature [Max] | 65 °C | 55 - 200 °C |
| Operating Temperature [Min] | -40 °C | -65 - -25 ░C |
| Orientation | - | Keyed |
| Primary Material | - | Metal |
| Shell Finish | - | Nickel, Polyester |
| Shell Material | - | Zinc Die Cast |
| Shell Size - Insert | - | XLR |
| Shell Size - Insert (Convert From) | - | XLR |
| Shell Size - Insert (Convert To) | - | XLR |
| Shield Termination | - | Solder, Crimp, Clamp, Push On |
| Shielding | - | Unshielded |
| Style | Straight | Straight, Right Angle, U-Shape, T-Shape |
| Termination | - | Solder |
| Usage | - | Patch |
| Voltage Rating | - | 70 - 1000 V |
