72961

Active

Pomona Electronics

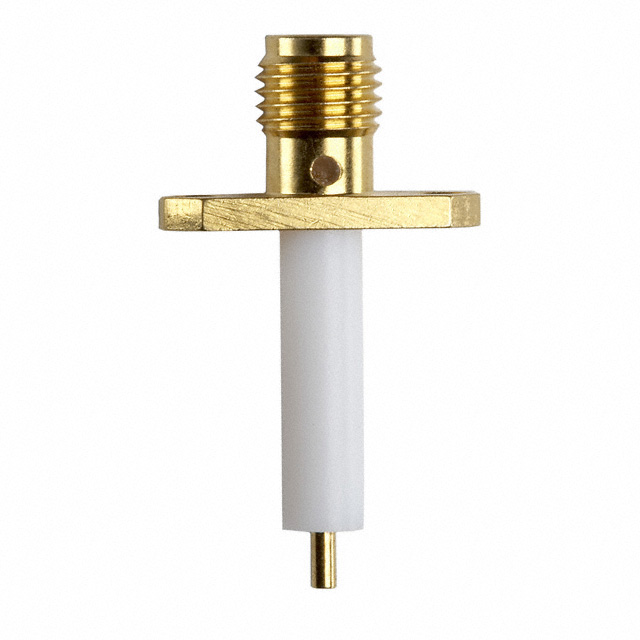

RF / COAXIAL CONNECTOR, SMA COAXIAL, STRAIGHT FLANGED JACK, CRIMP, 50 OHM, BERYLLIUM COPPER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

72961

Active

Pomona Electronics

RF / COAXIAL CONNECTOR, SMA COAXIAL, STRAIGHT FLANGED JACK, CRIMP, 50 OHM, BERYLLIUM COPPER

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	72961

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

- Series

...

Part	Contact Termination	Center Contact Plating	Connector Type	Dielectric Material	Fastening Type	Body Material	Connector Style	Mounting Feature	Body Finish	Housing Color	Impedance	Shield Termination	Includes	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Number of Ports	Convert From (Adapter End)	Frequency - Max [Max]	Convert To (Adapter End)	Conversion Type	Mounting Type	Mating Cycles	Center Gender	Adapter Series	Style	Adapter Type	Voltage Rating	Cable Group	Primary Material	Shell Material	Orientation	Shell Finish	Shell Size - Insert	Contact Finish - Mating	Termination	Color	Features
Pomona Electronics 3580	Solder Cup	Gold	Female Socket Receptacle	Polytetrafluoroethylene (PTFE)	Bayonet Lock	Brass	BNC Triaxial	Bulkhead - Front Side Nut	Nickel	Silver	50 Ohms	Solder	1 Connector 1 Lockwasher 1 Nut	-65 ░C	165 °C	Beryllium Copper	1
Pomona Electronics 72964		Gold		Polytetrafluoroethylene (PTFE)		Brass			Gold		50 Ohms			-65 ░C	165 °C	Brass		SMA Plug Male Pin	6000 MHz	Male Pin SMA Plug	Same Series	Free Hanging (In-Line)	500	Male to Male	SMA to SMA	Straight	Plug to Plug
Pomona Electronics 73012	Push On	Gold	Female Socket Jack	Polytetrafluoroethylene (PTFE)	Snap-On	Brass	MCX		Gold	Gold	75 Ohms	Crimp	1 Connector 1 Ferrule 1 Heat Shrink	-55 °C	155 °C	Beryllium Copper	1		2 GHz			Free Hanging (In-Line)	500					170 V	RG-179
Pomona Electronics 72946	Crimp Solder	Gold	Male Pin Plug	Polytetrafluoroethylene (PTFE)		Brass	SMA		Gold	Gold	50 Ohms	Crimp	1 Connector 1 Contact 1 Ferrule	-65 ░C	165 °C	Brass	1		12.4 GHz			Free Hanging (In-Line)	500					375 V	187 316 RG-174
Pomona Electronics 6851			Male Pins Plug		Latch Lock																	Free Hanging (In-Line)								Metal	Zinc Die Cast	Keyed	Nickel	XLR	Gold	Solder	Black	Cable Clamp
Pomona Electronics 6738		Gold		Polytetrafluoroethylene (PTFE)	Bayonet Lock	Brass			Nickel		75 Ohms			-65 ░C	155 °C	Beryllium Copper		BNC Jack Female Socket	3 GHz	BNC Jack Female Socket (2)	Same Series	Free Hanging (In-Line)	500	Female to Female	BNC to BNC Dual	T-Shape	Jack to Jack
Pomona Electronics 73053		Gold		Polytetrafluoroethylene (PTFE)		Brass			Nickel		50 Ohms					Brass Phosphor Bronze			4 GHz	Female Socket TNC Jack	Same Series	Free Hanging (In-Line) Right Angle	500		TNC to TNC	Right Angle	Plug to Jack
Pomona Electronics 73062	Crimp	Gold	Male Pin Plug	Polytetrafluoroethylene (PTFE)		Brass	N Type		Nickel	Silver	50 Ohms	Clamp	1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket 1 Washer			Brass	1		11 GHz			Free Hanging (In-Line)	500					1000 VDC	144 165 213 214 216 225 9 RG-8
Pomona Electronics 72998	Solder	Gold	Male Pin Receptacle	Polytetrafluoroethylene (PTFE)	Snap-On	Brass	SMB		Gold	Gold	50 Ohms	Solder		-65 ░C	165 °C	Beryllium Copper	1		3 GHz			Through Hole Right Angle	500					250 VDC
Pomona Electronics 6782		Gold		Polytetrafluoroethylene (PTFE)	Bayonet Lock Threaded	Brass			Nickel		75 Ohms			-40 °C	65 °C	Brass		BNC Plug Male Pin	1.5 GHz	F Plug Male Pin	Between Series	Free Hanging (In-Line)	500	Male to Male	BNC to F	Straight	Plug to Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.79
Newark	Each	1	$ 7.99

Description

General part information

- Series

The 72961 is a 2-hole crimp SMA Straight Jack made of gold-plated brass body with gold-plated centre contact and a PTFE insulator.
