72946

Active

Pomona Electronics

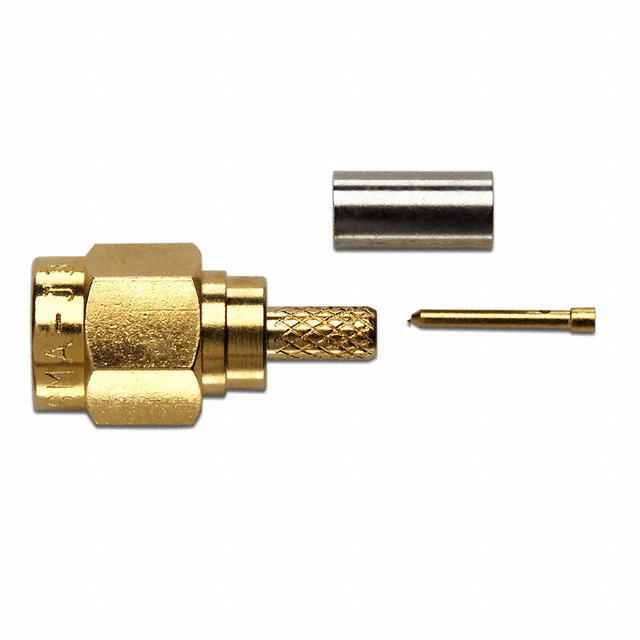

CONN SMA PLUG STR 50 OHM CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

72946

Active

Pomona Electronics

CONN SMA PLUG STR 50 OHM CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	72946

Body Finish	Gold
Body Material	Brass
Cable Group	RG-174, 316, 187
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	375 V

- Series

...

Part	Contact Termination	Center Contact Plating	Connector Type	Dielectric Material	Fastening Type	Body Material	Connector Style	Mounting Feature	Body Finish	Housing Color	Impedance	Shield Termination	Includes	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Number of Ports	Convert From (Adapter End)	Frequency - Max [Max]	Convert To (Adapter End)	Conversion Type	Mounting Type	Mating Cycles	Center Gender	Adapter Series	Style	Adapter Type	Voltage Rating	Cable Group	Primary Material	Shell Material	Orientation	Shell Finish	Shell Size - Insert	Contact Finish - Mating	Termination	Color	Features
Pomona Electronics 3580	Solder Cup	Gold	Female Socket Receptacle	Polytetrafluoroethylene (PTFE)	Bayonet Lock	Brass	BNC Triaxial	Bulkhead - Front Side Nut	Nickel	Silver	50 Ohms	Solder	1 Connector 1 Lockwasher 1 Nut	-65 ░C	165 °C	Beryllium Copper	1
Pomona Electronics 72964		Gold		Polytetrafluoroethylene (PTFE)		Brass			Gold		50 Ohms			-65 ░C	165 °C	Brass		SMA Plug Male Pin	6000 MHz	Male Pin SMA Plug	Same Series	Free Hanging (In-Line)	500	Male to Male	SMA to SMA	Straight	Plug to Plug
Pomona Electronics 73012	Push On	Gold	Female Socket Jack	Polytetrafluoroethylene (PTFE)	Snap-On	Brass	MCX		Gold	Gold	75 Ohms	Crimp	1 Connector 1 Ferrule 1 Heat Shrink	-55 °C	155 °C	Beryllium Copper	1		2 GHz			Free Hanging (In-Line)	500					170 V	RG-179
Pomona Electronics 72946	Crimp Solder	Gold	Male Pin Plug	Polytetrafluoroethylene (PTFE)		Brass	SMA		Gold	Gold	50 Ohms	Crimp	1 Connector 1 Contact 1 Ferrule	-65 ░C	165 °C	Brass	1		12.4 GHz			Free Hanging (In-Line)	500					375 V	187 316 RG-174
Pomona Electronics 6851			Male Pins Plug		Latch Lock																	Free Hanging (In-Line)								Metal	Zinc Die Cast	Keyed	Nickel	XLR	Gold	Solder	Black	Cable Clamp
Pomona Electronics 6738		Gold		Polytetrafluoroethylene (PTFE)	Bayonet Lock	Brass			Nickel		75 Ohms			-65 ░C	155 °C	Beryllium Copper		BNC Jack Female Socket	3 GHz	BNC Jack Female Socket (2)	Same Series	Free Hanging (In-Line)	500	Female to Female	BNC to BNC Dual	T-Shape	Jack to Jack
Pomona Electronics 73053		Gold		Polytetrafluoroethylene (PTFE)		Brass			Nickel		50 Ohms					Brass Phosphor Bronze			4 GHz	Female Socket TNC Jack	Same Series	Free Hanging (In-Line) Right Angle	500		TNC to TNC	Right Angle	Plug to Jack
Pomona Electronics 73062	Crimp	Gold	Male Pin Plug	Polytetrafluoroethylene (PTFE)		Brass	N Type		Nickel	Silver	50 Ohms	Clamp	1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket 1 Washer			Brass	1		11 GHz			Free Hanging (In-Line)	500					1000 VDC	144 165 213 214 216 225 9 RG-8
Pomona Electronics 72998	Solder	Gold	Male Pin Receptacle	Polytetrafluoroethylene (PTFE)	Snap-On	Brass	SMB		Gold	Gold	50 Ohms	Solder		-65 ░C	165 °C	Beryllium Copper	1		3 GHz			Through Hole Right Angle	500					250 VDC
Pomona Electronics 6782		Gold		Polytetrafluoroethylene (PTFE)	Bayonet Lock Threaded	Brass			Nickel		75 Ohms			-40 °C	65 °C	Brass		BNC Plug Male Pin	1.5 GHz	F Plug Male Pin	Between Series	Free Hanging (In-Line)	500	Male to Male	BNC to F	Straight	Plug to Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.64

Description

General part information

- Series

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp or Solder
