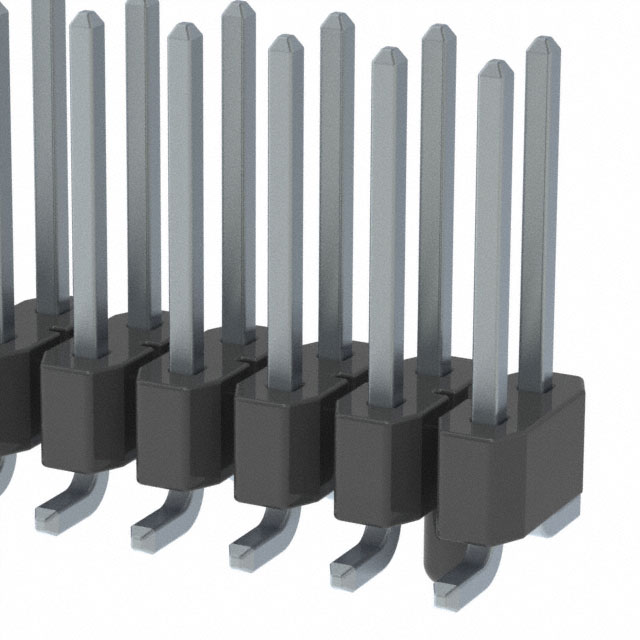

TSM-114-02-T-DV-A

Active

Samtec Inc.

CONN HEADER SMD 28POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TSM-114-02-T-DV-A

Active

Samtec Inc.

CONN HEADER SMD 28POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSM-114-02-T-DV-A

Connector Type	Cuttable, Header
Contact Finish - Post	Tin
Contact Length - Mating	8.13 mm
Contact Length - Mating	0.32 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	28
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TSM-114 Series

...

Part	Contact Shape	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish - Post	Mounting Type	Contact Length - Mating [x]	Contact Length - Mating	Insulation Height	Insulation Height	Shrouding	Insulation Material	Termination	Connector Type	Number of Positions Loaded	Fastening Type	Contact Type	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Number of Positions	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Style	Contact Length - Mating	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating [x]
Samtec Inc. TSM-114-01-L-DV-TR	Square	Black	2.54 mm	0.1 in	-55 °C	125 °C	Phosphor Bronze	Tin	Surface Mount	0.23 in	5.84 mm	0.1 in	2.54 mm	Unshrouded	Liquid Crystal Polymer (LCP)	Solder	Cuttable Header	All	Push-Pull	Male Pin	Gold	0.1 in	2.54 mm	28	UL94 V-0	10 çin	0.25 çm	2	Board to Board Cable
Samtec Inc. TSM-114-02-TL-DV	Square	Black	2.54 mm	0.1 in	-55 °C	105 ░C	Phosphor Bronze	Tin	Surface Mount		8.13 mm	0.1 in	2.54 mm	Unshrouded	Liquid Crystal Polymer (LCP)	Solder	Cuttable Header	All	Push-Pull	Male Pin		0.1 in	2.54 mm	28	UL94 V-0			2	Board to Board Cable	0.32 in
Samtec Inc. TSM-114-02-T-DV	Square	Black	2.54 mm	0.1 in	-55 °C	105 ░C	Phosphor Bronze	Tin	Surface Mount		8.13 mm	0.1 in	2.54 mm	Unshrouded	Liquid Crystal Polymer (LCP)	Solder	Cuttable Header	All	Push-Pull	Male Pin		0.1 in	2.54 mm	28	UL94 V-0			2	Board to Board Cable	0.32 in
Samtec Inc. TSM-114-01-L-DV-A-TR	Square	Black	2.54 mm	0.1 in	-55 °C	125 °C	Phosphor Bronze	Tin	Surface Mount	0.23 in	5.84 mm	0.1 in	2.54 mm	Unshrouded	Liquid Crystal Polymer (LCP)	Solder	Cuttable Header	All	Push-Pull	Male Pin	Gold	0.1 in	2.54 mm	28	UL94 V-0	10 çin	0.25 çm	2	Board to Board Cable		Board Guide
Samtec Inc. TSM-114-01-F-DV-P	Square	Black	2.54 mm	0.1 in	-55 °C	125 °C	Phosphor Bronze	Tin	Surface Mount	0.23 in	5.84 mm	0.1 in	2.54 mm	Unshrouded	Liquid Crystal Polymer (LCP)	Solder	Cuttable Header	All	Push-Pull	Male Pin	Gold	0.1 in	2.54 mm	28	UL94 V-0	3 µin	0.076 µm	2	Board to Board Cable		Pick and Place
Samtec Inc. TSM-114-01-S-DV-P	Square	Black	2.54 mm	0.1 in	-55 °C	125 °C	Phosphor Bronze	Tin	Surface Mount	0.23 in	5.84 mm	0.1 in	2.54 mm	Unshrouded	Liquid Crystal Polymer (LCP)	Solder	Cuttable Header	All	Push-Pull	Male Pin	Gold	0.1 in	2.54 mm	28	UL94 V-0	30 Áin	0.76 Ám	2	Board to Board Cable		Pick and Place
Samtec Inc. TSM-114-02-G-EM	Square	Black	2.54 mm	0.1 in	-55 °C	125 °C	Phosphor Bronze	Gold	Board Edge Straddle Mount		8.13 mm			Unshrouded	Liquid Crystal Polymer (LCP)	Solder	Header	All	Push-Pull	Male Pin	Gold	0.1 in	2.54 mm	28	UL94 V-0	10 çin	0.25 çm	2	Board to Board Cable	0.32 in		3 µin	0.076 µm
Samtec Inc. TSM-114-02-T-DV-A	Square	Black	2.54 mm	0.1 in	-55 °C	105 ░C	Phosphor Bronze	Tin	Surface Mount		8.13 mm	0.1 in	2.54 mm	Unshrouded	Liquid Crystal Polymer (LCP)	Solder	Cuttable Header	All	Push-Pull	Male Pin		0.1 in	2.54 mm	28	UL94 V-0			2	Board to Board Cable	0.32 in	Board Guide
Samtec Inc. TSM-114-05-F-DV-A	Square	Black	2.54 mm	0.1 in	-55 °C	125 °C	Phosphor Bronze	Tin	Surface Mount	0.075 in		0.1 in	2.54 mm	Unshrouded	Liquid Crystal Polymer (LCP)	Solder	Cuttable Header	All	Push-Pull	Male Pin	Gold	0.1 in	2.54 mm	28	UL94 V-0	3 µin	0.076 µm	2	Board to Board Cable		Board Guide			1.9 mm
Samtec Inc. TSM-114-01-STL-SH-A-P-TR	Square	Black			-55 °C	125 °C	Phosphor Bronze	Tin	Surface Mount Right Angle	0.23 in	5.84 mm	0.12 in	3.05 mm	Unshrouded	Liquid Crystal Polymer (LCP)	Solder	Header	All	Push-Pull	Male Pin	Gold	0.1 in	2.54 mm	14	UL94 V-0	30 Áin	0.76 Ám	1	Board to Board Cable		Board Guide Pick and Place

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	16	$ 2.64

Description

General part information

TSM-114 Series

Connector Header Surface Mount 28 position 0.100" (2.54mm)
