1825011-2

Active

TE Connectivity Raychem Cable Protection

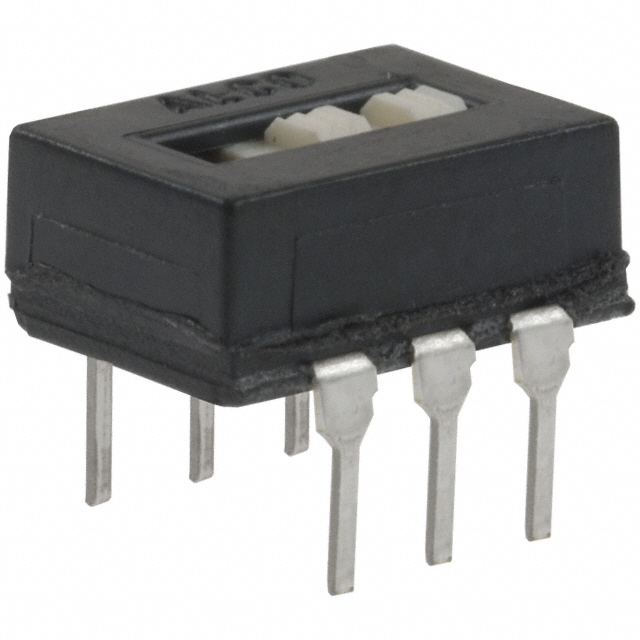

SWITCH SLIDE DPDT 0.4VA 20V

Deep-Dive with AI

Search across all available documentation for this part.

1825011-2

Active

TE Connectivity Raychem Cable Protection

SWITCH SLIDE DPDT 0.4VA 20V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1825011-2

Actuator Length	Flush
Actuator Material	Polyamide (PA46), Nylon 4/6
Actuator Type	Screwdriver Slot
Circuit	DPDT
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Timing	Shorting
Current Rating (Amps)	0.4 VA
Electrical Life	15000 Cycles
Features	Tape Seal
Mechanical Life	15000 Cycles
Mounting Type	Through Hole
Operating Force	950 gf
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Switch Function	On-On
Switch Travel	2.79 mm
Termination Style	PC Pin
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

ALCOSWITCH ASE/F Series

Part	Switch Travel	Contact Timing	Mechanical Life	Termination Style	Actuator Type	Mounting Type	Contact Material	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Operating Force	Circuit	Switch Function	Features	Actuator Length	Voltage Rating - AC	Electrical Life	Current Rating (Amps)	Actuator Material
TE Connectivity Raychem Cable Protection 1825011-2	2.79 mm	Shorting	15000 Cycles	PC Pin	Screwdriver Slot	Through Hole	Copper Alloy	Gold	-40 °C	80 C	20 V	950 gf	DPDT	On-On	Tape Seal	Flush	20 V	15000 Cycles	0.4 VA	Nylon 4/6 Polyamide (PA46)
TE Connectivity Raychem Cable Protection 8-1825011-1	2.79 mm	Shorting	15000 Cycles	Gull Wing	Screwdriver Slot	Surface Mount	Copper Alloy	Silver	-40 °C	80 C		950 gf	DPDT	On-On		Flush	115 V	15000 Cycles	300 mA	Nylon 4/6 Polyamide (PA46)
TE Connectivity Raychem Cable Protection 1825011-1	2.79 mm	Shorting	15000 Cycles	PC Pin	Screwdriver Slot	Through Hole	Copper Alloy	Silver	-40 °C	80 C		950 gf	DPDT	On-On	Tape Seal	Flush	115 V	15000 Cycles	300 mA	Nylon 4/6 Polyamide (PA46)
TE Connectivity Raychem Cable Protection 6-1825011-2	2.79 mm	Shorting	15000 Cycles	PC Pin	Screwdriver Slot	Through Hole	Copper Alloy	Gold	-40 °C	80 C	20 V	950 gf	6PDT	On-On	Tape Seal	Flush	20 V	15000 Cycles	0.4 VA	Nylon 4/6 Polyamide (PA46)
TE Connectivity Raychem Cable Protection 6-1825011-9	2.79 mm	Shorting	15000 Cycles	J Lead	Screwdriver Slot	Surface Mount	Copper Alloy	Gold	-40 °C	80 C	20 V	950 gf	6PDT	On-On	Tape Seal	Flush	20 V	15000 Cycles	0.4 VA	Nylon 4/6 Polyamide (PA46)
TE Connectivity Raychem Cable Protection 2-1825011-1	2.79 mm	Shorting	15000 Cycles	PC Pin	Screwdriver Slot	Through Hole	Copper Alloy	Silver	-40 °C	80 C		950 gf	4PDT	On-On	Tape Seal	Flush	115 V	15000 Cycles	300 mA	Nylon 4/6 Polyamide (PA46)
TE Connectivity Raychem Cable Protection 1-1825011-2	2.79 mm	Shorting	15000 Cycles	J Lead	Screwdriver Slot	Surface Mount	Copper Alloy	Silver	-40 °C	80 C		950 gf	DPDT	On-On	Tape Seal	Flush	115 V	15000 Cycles	300 mA	Nylon 4/6 Polyamide (PA46)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2400	$ 4.51

Description

General part information

ALCOSWITCH ASE/F Series

Slide Switch DPDT Through Hole

Documents

Technical documentation and resources

No documents available
