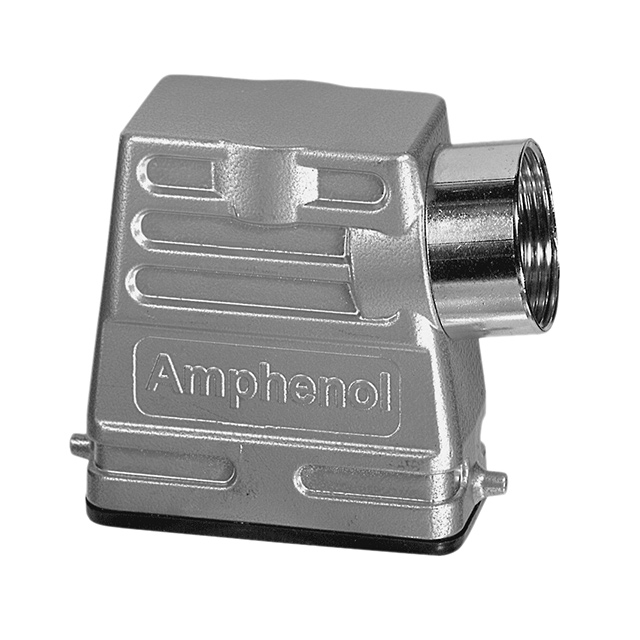

Specification	C146 10R025 500 2

Connector Type	Hood
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Size	A16
Size / Dimension Height	2.776 in
Size / Dimension Length	3.11 in
Size / Dimension Width	1.161 in
Style	Side Entry
Thread Size	M25

C146 10R025 Series

Part	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Size	Lock Location	Ingress Protection IP Rating	Ingress Protection Description	Style	Thread Size	Operating Temperature (Max)	Operating Temperature (Min)	Connector Type	Housing Material
Amphenol Tuchel Industrial C146 10R025 500 2	2.776 in	3.11 in	1.161 in	A16	Locking Clip (1) on Base Bottom	IP65	Dust Tight Water Resistant	Side Entry	M25	100 °C	-40 °C	Hood	Aluminum Alloy Die Cast
Amphenol Tuchel Industrial C146 10R025 600 2	2.776 in	3.11 in	1.161 in	A16	Locking Clip (1) on Base Bottom	IP65	Dust Tight Water Resistant	Top Entry	M25	100 °C	-40 °C	Hood	Aluminum Alloy Die Cast
