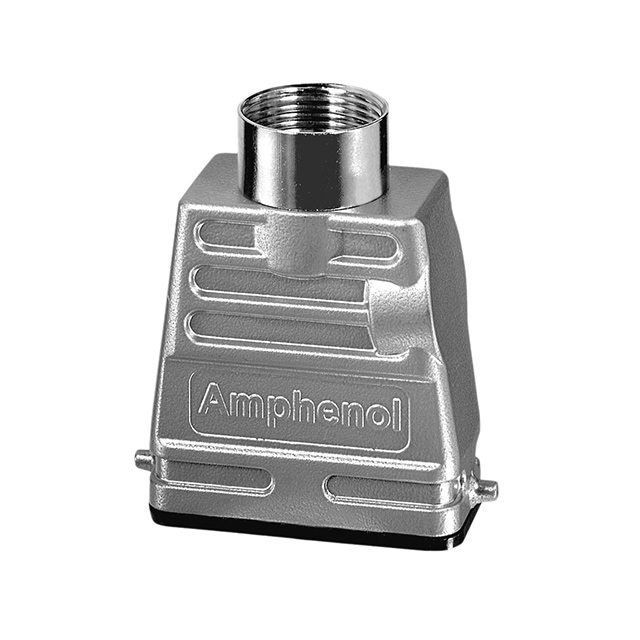

C146 10R025 600 2

Active

Amphenol Tuchel Industrial

CONN HOOD TOP ENTRY SZA16 M25

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN HOOD TOP ENTRY SZA16 M25

Technical Specifications

Parameters and characteristics for this part

Specification	C146 10R025 600 2

Connector Type	Hood
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	A16
Size / Dimension [x]	3.11 in
Size / Dimension [x]	79 mm
Size / Dimension [y]	29.5 mm
Size / Dimension [y]	1.161 "
Size / Dimension [z]	70.5 mm
Size / Dimension [z]	2.776 in
Style	Top Entry
Thread Size	M25

Part	Housing Material	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Connector Type	Lock Location	Size	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Style	Ingress Protection
Amphenol Tuchel Industrial C146 10R025 500 2	Aluminum Alloy Die Cast	29.5 mm	70.5 mm	3.11 in	2.776 in	79 mm	1.161 "	Hood	Locking Clip (1) on Base Bottom	A16	100 °C	-40 °C	M25	Side Entry	IP65 - Dust Tight Water Resistant
Amphenol Tuchel Industrial C146 10R025 600 2	Aluminum Alloy Die Cast	29.5 mm	70.5 mm	3.11 in	2.776 in	79 mm	1.161 "	Hood	Locking Clip (1) on Base Bottom	A16	100 °C	-40 °C	M25	Top Entry	IP65 - Dust Tight Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	35	$ 21.76

General part information

Hood Connector Top Entry M25 A16 IP65 - Dust Tight, Water Resistant

Technical documentation and resources

No documents available
