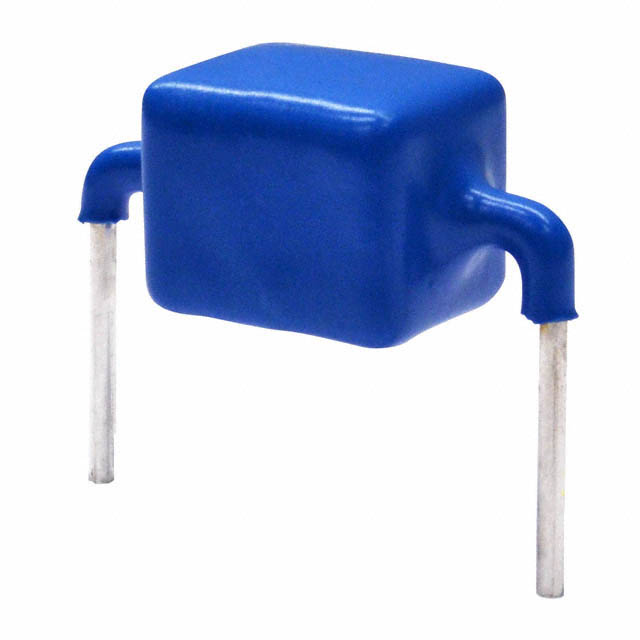

PTVS3-058C

Obsolete

Bourns Inc.

TVS DIODE 58VWM 100VC AXIAL

Search across all available documentation for this part.

Obsolete

Bourns Inc.

TVS DIODE 58VWM 100VC AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	PTVS3-058C

Applications	General Purpose
Bidirectional Channels [custom]	1
Capacitance @ Frequency	2300 pF
Current - Peak Pulse (10/1000µs)	3 kA
Current - Peak Pulse (10/1000µs)	3000 A
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial, Right Angle Bend
Package / Case	24.15 mm
Power Line Protection	False
Supplier Device Package	Axial
Type	Zener
Voltage - Breakdown (Min) [Min]	64 V
Voltage - Clamping (Max) @ Ipp	110 V
Voltage - Reverse Standoff (Typ)	58 V

Part	Mounting Type	Package / Case	Package / Case	Bidirectional Channels [custom]	Supplier Device Package	Voltage - Reverse Standoff (Typ)	Voltage - Breakdown (Min) [Min]	Voltage - Clamping (Max) @ Ipp [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Current - Peak Pulse (10/1000µs)	Current - Peak Pulse (10/1000µs)	Capacitance @ Frequency	Applications	Voltage - Clamping (Max) @ Ipp
Bourns Inc. PTVS3-076C	Through Hole	Axial Right Angle Bend	24.15 mm	1	Axial	76 V	85 V	140 V	-55 °C	150 °C	Zener	3 kA	3000 A	1700 pF	General Purpose
Bourns Inc. PTVS3-058C	Through Hole	Axial Right Angle Bend	24.15 mm	1	Axial	58 V	64 V		-55 °C	150 °C	Zener	3 kA	3000 A	2300 pF	General Purpose	110 V
Bourns Inc. PTVS3-076C-M	Surface Mount	2-SMD Flat Leads		1	2-SMD	76 V	85 V		-55 °C	125 ¯C	Zener	3 kA	3000 A	1700 pF	General Purpose	135 V
Bourns Inc. PTVS3-058C-SH	Surface Mount	2-SMD		1	2-SMD	58 V	64 V		-55 °C	125 ¯C	Zener	3 kA	3000 A	2300 pF	General Purpose	110 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

110V Clamp 3000A (3kA) (8/20µs) Ipp Tvs Diode Through Hole Axial
