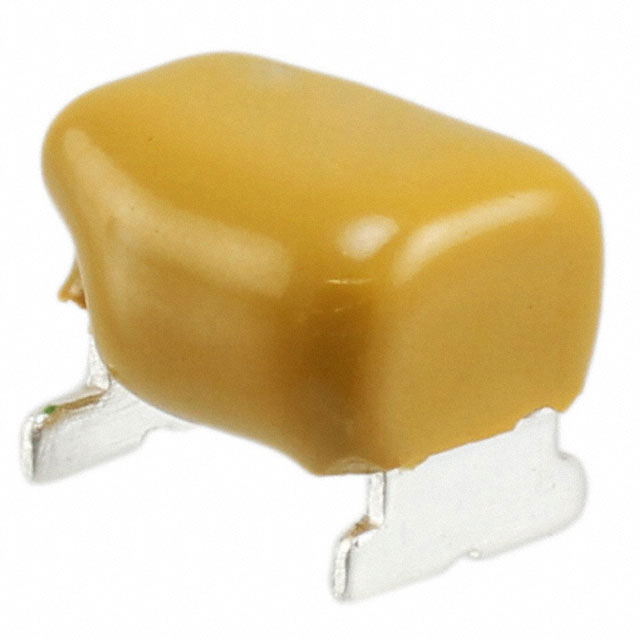

PTVS3-058C-SH

Active

Bourns Inc.

TVS DIODE 58VWM 110VC SMD

Search across all available documentation for this part.

Active

Bourns Inc.

TVS DIODE 58VWM 110VC SMD

Technical Specifications

Parameters and characteristics for this part

Specification	PTVS3-058C-SH

Applications	General Purpose
Bidirectional Channels [custom]	1
Capacitance @ Frequency	2300 pF
Current - Peak Pulse (10/1000µs)	3 kA
Current - Peak Pulse (10/1000µs)	3000 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Package / Case	2-SMD
Power Line Protection	False
Supplier Device Package	2-SMD
Type	Zener
Voltage - Breakdown (Min) [Min]	64 V
Voltage - Clamping (Max) @ Ipp	110 V
Voltage - Reverse Standoff (Typ)	58 V

Part	Mounting Type	Package / Case	Package / Case	Bidirectional Channels [custom]	Supplier Device Package	Voltage - Reverse Standoff (Typ)	Voltage - Breakdown (Min) [Min]	Voltage - Clamping (Max) @ Ipp [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Type	Current - Peak Pulse (10/1000µs)	Current - Peak Pulse (10/1000µs)	Capacitance @ Frequency	Applications	Voltage - Clamping (Max) @ Ipp
Bourns Inc. PTVS3-076C	Through Hole	Axial Right Angle Bend	24.15 mm	1	Axial	76 V	85 V	140 V	-55 °C	150 °C	Zener	3 kA	3000 A	1700 pF	General Purpose
Bourns Inc. PTVS3-058C	Through Hole	Axial Right Angle Bend	24.15 mm	1	Axial	58 V	64 V		-55 °C	150 °C	Zener	3 kA	3000 A	2300 pF	General Purpose	110 V
Bourns Inc. PTVS3-076C-M	Surface Mount	2-SMD Flat Leads		1	2-SMD	76 V	85 V		-55 °C	125 ¯C	Zener	3 kA	3000 A	1700 pF	General Purpose	135 V
Bourns Inc. PTVS3-058C-SH	Surface Mount	2-SMD		1	2-SMD	58 V	64 V		-55 °C	125 ¯C	Zener	3 kA	3000 A	2300 pF	General Purpose	110 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

110V Clamp 3000A (3kA) (8/20µs) Ipp Tvs Diode Surface Mount 2-SMD
