TMM-120-01-SM-D-RA

Active

Samtec Inc.

2MM TERMINAL STRIP

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TMM-120-01-SM-D-RA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 µin
Contact Length - Mating	0.126 in
Contact Length - Post	0.12 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Per Contact)	3.2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.155 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole, Right Angle
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.079 in
Row Spacing - Mating	0.079 in
Shrouding	Unshrouded
Style	Board, Board or Cable
Termination	Solder

TMM-120 Series

...

Part	Shrouding	Insulation Color	Number of Positions Loaded	Fastening Type	Style	Contact Finish Thickness - Mating	Material Flammability Rating	Insulation Material	Contact Type	Contact Length - Mating	Contact Shape	Number of Positions	Connector Type	Insulation Height	Mounting Type	Number of Rows	Current Rating (Per Contact)	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish - Mating	Pitch - Mating	Termination	Contact Material	Contact Finish - Post	Contact Finish Thickness - Post	Features	Row Spacing - Mating	Contact Length - Post	Overall Contact Length
Samtec Inc. TMM-120-01-G-S-SM	Unshrouded	Black	All	Push-Pull	Board Board or Cable	20 Ąin	UL94 V-0	Liquid Crystal Polymer (LCP)	Male Pin	0.126 in	Square	20	Header	0.059 in	Surface Mount	1	3.2 A	125 °C	-55 °C	Gold	0.079 in	Solder	Phosphor Bronze	Gold	3 µin
Samtec Inc. TMM-120-06-L-D-SM-A-P-TR	Unshrouded	Black	All	Push-Pull	Board Board or Cable	10 µin	UL94 V-0	Liquid Crystal Polymer (LCP)	Male Pin	0.168 in	Square	40	Header	0.059 in	Surface Mount	2	3.2 A	125 °C	-55 °C	Gold	0.079 in	Solder	Phosphor Bronze	Tin		Board Guide Pick and Place	0.079 in
Samtec Inc. TMM-120-01-G-D-SM-TR	Unshrouded	Black	All	Push-Pull	Board Board or Cable	20 Ąin	UL94 V-0	Liquid Crystal Polymer (LCP)	Male Pin	0.126 in	Square	40	Header	0.059 in	Surface Mount	2	3.2 A	125 °C	-55 °C	Gold	0.079 in	Solder	Phosphor Bronze	Gold	3 µin		0.079 in
Samtec Inc. TMM-120-06-TM-D-SM	Unshrouded	Black	All	Push-Pull	Board Board or Cable		UL94 V-0	Liquid Crystal Polymer (LCP)	Male Pin	0.168 in	Square	40	Header	0.059 in	Surface Mount	2	3.2 A	105 °C	-55 °C	Tin	0.079 in	Solder	Phosphor Bronze	Tin			0.079 in
Samtec Inc. TMM-120-04-T-D-SM-P	Unshrouded	Black	All	Push-Pull	Board Board or Cable		UL94 V-0	Liquid Crystal Polymer (LCP)	Male Pin	0.075 in	Square	40	Header	0.059 in	Surface Mount	2	3.2 A	105 °C	-55 °C	Tin	0.079 in	Solder	Phosphor Bronze	Tin		Pick and Place	0.079 in
Samtec Inc. TMM-120-06-T-D	Unshrouded	Black	All	Push-Pull	Board Board or Cable			Liquid Crystal Polymer (LCP)	Male Pin	0.126 in	Square	40	Header	0.059 in	Through Hole	2	3.2 A	105 °C	-55 °C	Tin	0.079 in	Solder	Phosphor Bronze	Tin			0.079 in	0.192 in	0.377 in
Samtec Inc. TMM-120-01-L-D-SM	Unshrouded	Black	All	Push-Pull	Board Board or Cable	10 µin	UL94 V-0	Liquid Crystal Polymer (LCP)	Male Pin	0.126 in	Square	40	Header	0.059 in	Surface Mount	2	3.2 A	125 °C	-55 °C	Gold	0.079 in	Solder	Phosphor Bronze	Tin			0.079 in
Samtec Inc. TMM-120-01-SM-D-RA	Unshrouded	Black	All	Push-Pull	Board Board or Cable	30 µin		Liquid Crystal Polymer (LCP)	Male Pin	0.126 in	Square	40	Header	0.155 in	Right Angle Through Hole	2	3.2 A	125 °C	-55 °C	Gold	0.079 in	Solder	Phosphor Bronze	Tin			0.079 in	0.12 in
Samtec Inc. TMM-120-01-SM-D-SM	Unshrouded	Black	All	Push-Pull	Board Board or Cable	30 µin	UL94 V-0	Liquid Crystal Polymer (LCP)	Male Pin	0.126 in	Square	40	Header	0.059 in	Surface Mount	2	3.2 A	125 °C	-55 °C	Gold	0.079 in	Solder	Phosphor Bronze	Tin			0.079 in
Samtec Inc. TMM-120-01-L-D-SM-A-M	Unshrouded	Black	All	Push-Pull	Board Board or Cable	10 µin	UL94 V-0	Liquid Crystal Polymer (LCP)	Male Pin	0.126 in	Square	40	Header	0.059 in	Surface Mount	2	3.2 A	125 °C	-55 °C	Gold	0.079 in	Solder	Phosphor Bronze	Tin		Board Guide Pick and Place	0.079 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$	Updated

Digikey	Bulk	1	$ 5.97	<6d
		3	$ 63.16
		15	$ 61.90
		30	$ 60.66
		60	$ 59.45
		120	$ 58.26
Samtec Inc.	N/A	1	$ 6.40	<1d
		10	$ 6.15
		25	$ 5.89
		50	$ 5.46
		100	$ 4.37
		500	$ 3.58
		1000	$ 2.75
		2000	$ 1.89

CAD

3D models and CAD resources for this part

Description

General part information

TMM-120 Series

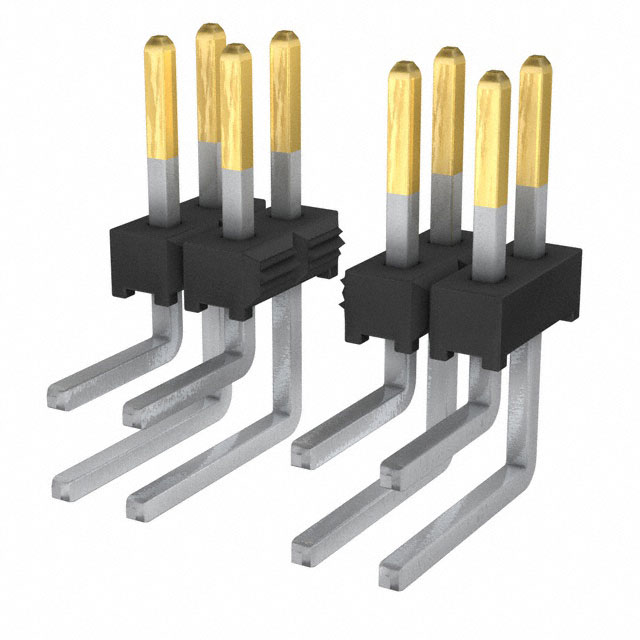

Connector Header Through Hole, Right Angle 40 position 0.079" (2.00mm)
