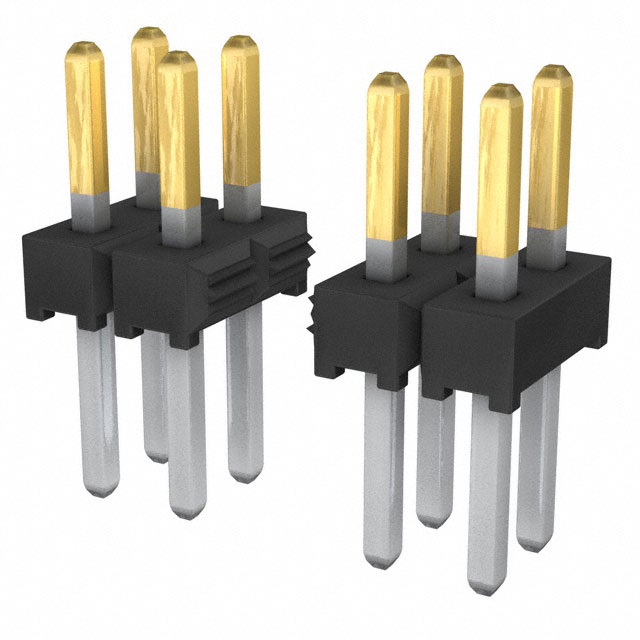

TMM-120-06-T-D

Active

Samtec Inc.

2MM TERMINAL STRIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TMM-120-06-T-D

Active

Samtec Inc.

2MM TERMINAL STRIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TMM-120-06-T-D

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	3.2 mm
Contact Length - Mating	0.126 "
Contact Length - Post	4.88 mm
Contact Length - Post	0.192 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.377 in
Overall Contact Length	9.58 mm
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TMM-120 Series

...

Part	Insulation Height	Insulation Height	Material Flammability Rating	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Mounting Type	Number of Positions	Contact Length - Mating	Contact Length - Mating	Connector Type	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Style	Number of Rows	Fastening Type	Pitch - Mating [x]	Pitch - Mating [x]	Termination	Insulation Color	Current Rating (Amps)	Contact Finish - Post	Insulation Material	Features	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. TMM-120-01-G-S-SM	1.5 mm	0.059 "	UL94 V-0	Phosphor Bronze	-55 °C	125 °C	Gold	Surface Mount	20	3.2 mm	0.126 "	Header	Unshrouded	0.51 µm	20 µin	Square	Male Pin	3 µin	0.076 µm	All	Board to Board Cable	1	Push-Pull	0.079 in	2 mm	Solder	Black	3.2 A	Gold	Liquid Crystal Polymer (LCP)
Samtec Inc. TMM-120-06-L-D-SM-A-P-TR	1.5 mm	0.059 "	UL94 V-0	Phosphor Bronze	-55 °C	125 °C	Gold	Surface Mount	40	4.27 mm	0.168 in	Header	Unshrouded	0.25 çm	10 çin	Square	Male Pin			All	Board to Board Cable	2	Push-Pull	0.079 in	2 mm	Solder	Black	3.2 A	Tin	Liquid Crystal Polymer (LCP)	Board Guide Pick and Place	0.079 in	2 mm
Samtec Inc. TMM-120-01-G-D-SM-TR	1.5 mm	0.059 "	UL94 V-0	Phosphor Bronze	-55 °C	125 °C	Gold	Surface Mount	40	3.2 mm	0.126 "	Header	Unshrouded	0.51 µm	20 µin	Square	Male Pin	3 µin	0.076 µm	All	Board to Board Cable	2	Push-Pull	0.079 in	2 mm	Solder	Black	3.2 A	Gold	Liquid Crystal Polymer (LCP)		0.079 in	2 mm
Samtec Inc. TMM-120-06-TM-D-SM	1.5 mm	0.059 "	UL94 V-0	Phosphor Bronze	-55 °C	105 ░C		Surface Mount	40	4.27 mm	0.168 in	Header	Unshrouded			Square	Male Pin			All	Board to Board Cable	2	Push-Pull	0.079 in	2 mm	Solder	Black	3.2 A	Tin	Liquid Crystal Polymer (LCP)		0.079 in	2 mm
Samtec Inc. TMM-120-04-T-D-SM-P	1.5 mm	0.059 "	UL94 V-0	Phosphor Bronze	-55 °C	105 ░C		Surface Mount	40			Header	Unshrouded			Square	Male Pin			All	Board to Board Cable	2	Push-Pull	0.079 in	2 mm	Solder	Black	3.2 A	Tin	Liquid Crystal Polymer (LCP)	Pick and Place	0.079 in	2 mm	1.9 mm	0.075 in
Samtec Inc. TMM-120-06-T-D	1.5 mm	0.059 "		Phosphor Bronze	-55 °C	105 ░C		Through Hole	40	3.2 mm	0.126 "	Header	Unshrouded			Square	Male Pin			All	Board to Board Cable	2	Push-Pull	0.079 in	2 mm	Solder	Black	3.2 A	Tin	Liquid Crystal Polymer (LCP)		0.079 in	2 mm			4.88 mm	0.192 in	0.377 in	9.58 mm
Samtec Inc. TMM-120-01-L-D-SM	1.5 mm	0.059 "	UL94 V-0	Phosphor Bronze	-55 °C	125 °C	Gold	Surface Mount	40	3.2 mm	0.126 "	Header	Unshrouded	0.25 çm	10 çin	Square	Male Pin			All	Board to Board Cable	2	Push-Pull	0.079 in	2 mm	Solder	Black	3.2 A	Tin	Liquid Crystal Polymer (LCP)		0.079 in	2 mm
Samtec Inc. TMM-120-01-SM-D-RA	3.94 mm	0.155 in		Phosphor Bronze	-55 °C	125 °C	Gold	Through Hole Right Angle	40	3.2 mm	0.126 "	Header	Unshrouded	0.76 Ám	30 Áin	Square	Male Pin			All	Board to Board Cable	2	Push-Pull	0.079 in	2 mm	Solder	Black	3.2 A	Tin	Liquid Crystal Polymer (LCP)		0.079 in	2 mm							0.12 in	3.05 mm
Samtec Inc. TMM-120-01-SM-D-SM	1.5 mm	0.059 "	UL94 V-0	Phosphor Bronze	-55 °C	125 °C	Gold	Surface Mount	40	3.2 mm	0.126 "	Header	Unshrouded	0.76 Ám	30 Áin	Square	Male Pin			All	Board to Board Cable	2	Push-Pull	0.079 in	2 mm	Solder	Black	3.2 A	Tin	Liquid Crystal Polymer (LCP)		0.079 in	2 mm
Samtec Inc. TMM-120-01-L-D-SM-A-M	1.5 mm	0.059 "	UL94 V-0	Phosphor Bronze	-55 °C	125 °C	Gold	Surface Mount	40	3.2 mm	0.126 "	Header	Unshrouded	0.25 çm	10 çin	Square	Male Pin			All	Board to Board Cable	2	Push-Pull	0.079 in	2 mm	Solder	Black	3.2 A	Tin	Liquid Crystal Polymer (LCP)	Board Guide Pick and Place	0.079 in	2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.90

Description

General part information

TMM-120 Series

Connector Header Through Hole 40 position 0.079" (2.00mm)
