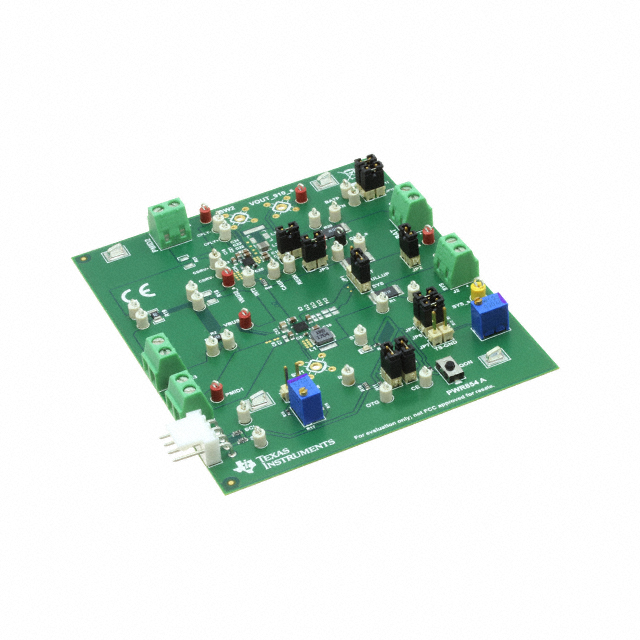

BQ25910EVM-854
ActiveEVALUATION MODULE
Deep-Dive with AI
Search across all available documentation for this part.
BQ25910EVM-854
ActiveEVALUATION MODULE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ25910EVM-854 | BQ25910 Series |
|---|---|---|
| Battery Chemistry | - | Multi-Chemistry |
| Battery Pack Voltage | - | 4.775 V |
| Charge Current - Max | - | 6 A |
| Current - Charging | - | Constant |
| Fault Protection | - | Over Voltage, Short Circuit |
| Function | Battery Charger | Battery Charger |
| Interface | - | I2C |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | DSBGA, 36-UFBGA |
| Primary Attributes | Li-Ion / Li-Pol (1 Cell) | Li-Ion / Li-Pol (1 Cell) |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 36-DSBGA (2.63x2.46) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ25910 | BQ25910 |
| Voltage - Supply (Max) | - | 14 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| DigiKey | Bulk | 1 | $ 118.80 | |
| Digikey | Bulk | 1 | $ 118.80 | |
| Mouser Electronics | N/A | 1 | $ 118.80 | |
BQ25910 Series
I2C 1cell 6A Three-Level buck battery charger for Parallel Charging Applications
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Current - Charging | Supplier Device Package | Interface | Mounting Type | Battery Chemistry | Voltage - Supply (Max) [Max] | Charge Current - Max [Max] | Package / Case | Number of Cells | Battery Pack Voltage | Fault Protection | Supplied Contents | Utilized IC / Part | Primary Attributes | Function | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ25910YFFR | 85 °C | -40 °C | Constant | 36-DSBGA (2.63x2.46) | I2C | Surface Mount | Multi-Chemistry | 14 V | 6 A | 36-UFBGA, DSBGA | 1 | 4.775 V | Over Voltage, Short Circuit | |||||
Texas Instruments BQ25910EVM-854 | Board(s) | BQ25910 | Li-Ion / Li-Pol (1 Cell) | Battery Charger | Power Management | |||||||||||||
Texas Instruments BQ25910YFFT | 85 °C | -40 °C | Constant | 36-DSBGA (2.63x2.46) | I2C | Surface Mount | Multi-Chemistry | 14 V | 6 A | 36-UFBGA, DSBGA | 1 | 4.775 V | Over Voltage, Short Circuit |
Description
General part information
BQ25910 Series
The BQ25910 is an integrated three-level switch-mode parallel battery charge management device for single cell Li-ion and Li-polymer batteries. Utilization of the three-level converter maintains highest switch-mode operation efficiency while reducing solution footprint and increasing power density. The device supports fast charging with high input voltage for a wide range of portable devices. The solution integrates reverse-blocking FET (QBLK), and four switching FETs (QHSA, QHSB, QLSB, QLSA). The I2C serial interface with charging and system settings makes the device a truly flexible solution.
The BQ25910 is an integrated three-level switch-mode parallel battery charge management device for single cell Li-ion and Li-polymer batteries. Utilization of the three-level converter maintains highest switch-mode operation efficiency while reducing solution footprint and increasing power density. The device supports fast charging with high input voltage for a wide range of portable devices. The solution integrates reverse-blocking FET (QBLK), and four switching FETs (QHSA, QHSB, QLSB, QLSA). The I2C serial interface with charging and system settings makes the device a truly flexible solution.
