346-010-526-104
ActiveEDAC Inc.

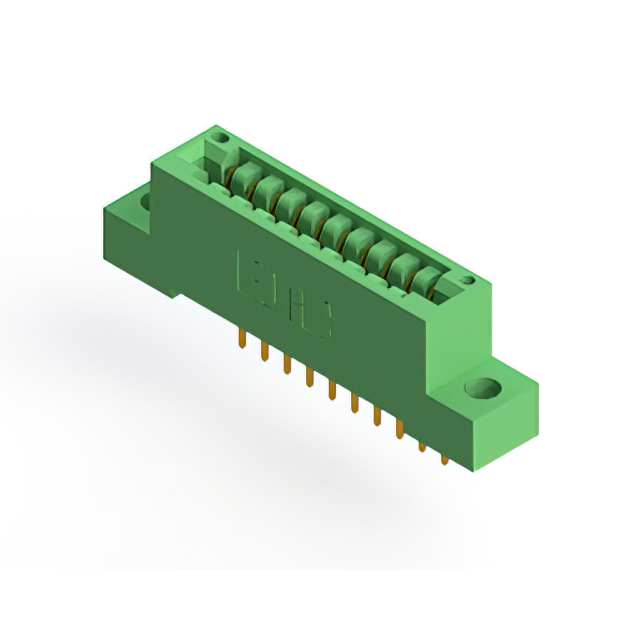

CONN EDGE SGL FMALE 10POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
346-010-526-104
ActiveEDAC Inc.
CONN EDGE SGL FMALE 10POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-010-526-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Number of Positions/Bay/Row [custom] | 10 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
346-010 Series
...
| Part | Features | Number of Positions/Bay/Row [custom] | Mounting Type | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Pitch [x] | Pitch [x] | Termination Rows | Card Type | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Color | Termination | Material - Insulation | Flange Feature | Contact Finish | Number of Rows | Read Out | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Card Extender | 5 | Board Edge Straddle Mount | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 0.125 in | 3.18 mm | 2 | Non Specified - Dual Edge | Cantilever | -40 °C | 105 ░C | Green | Solder | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 2 | Dual | 10 | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 10 | Through Hole | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 0.125 in | 3.18 mm | 1 | Non Specified - Single Edge | Cantilever | -40 °C | 105 ░C | Green | Wire Wrap | Polyester Thermoplastic | Flush Mount Top Opening Unthreaded | Gold | 1 | Single | 10 | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 " | |
EDAC Inc. | Card Guides | 5 | Through Hole | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 0.125 in | 3.18 mm | 2 | Non Specified - Dual Edge | Cantilever | -40 °C | 105 ░C | Green | Solder | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | Gold | 2 | Dual | 10 | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Card Guides | 5 | Through Hole | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 0.125 in | 3.18 mm | 2 | Non Specified - Dual Edge | Cantilever | -40 °C | 105 ░C | Green | Solder | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | Gold | 2 | Dual | 10 | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 10 | Through Hole | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 0.125 in | 3.18 mm | 1 | Non Specified - Single Edge | Cantilever | -40 °C | 105 ░C | Green | Solder | Polyester Thermoplastic | Flush Mount Top Opening Unthreaded | Gold | 1 | Single | 10 | 10 Áin | 0.25 Ám | 3.96 mm | 0.156 in | |
EDAC Inc. | 10 | Through Hole | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 0.125 in | 3.18 mm | 1 | Non Specified - Single Edge | Cantilever | -40 °C | 105 ░C | Green | Solder | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 1 | Single | 10 | 10 Áin | 0.25 Ám | |||
EDAC Inc. | Card Extender | 5 | Board Edge Straddle Mount | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 0.125 in | 3.18 mm | 2 | Non Specified - Dual Edge | Cantilever | -40 °C | 105 ░C | Green | Solder Eyelet(s) | Polyester Thermoplastic | Flush Mount M3 Threaded Insert Top Opening | Gold | 2 | Dual | 10 | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Card Extender | 5 | Board Edge Straddle Mount | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 0.125 in | 3.18 mm | 2 | Non Specified - Dual Edge | Cantilever | -40 °C | 105 ░C | Green | Solder | Polyester Thermoplastic | Flush Mount M3 Threaded Insert Top Opening | Gold | 2 | Dual | 10 | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 10 | Through Hole | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 0.125 in | 3.18 mm | 1 | Non Specified - Single Edge | Cantilever | -40 °C | 105 ░C | Green | Solder | Polyester Thermoplastic | Floating Bobbin Flush Mount | Gold | 1 | Single | 10 | 10 Áin | 0.25 Ám | 2.95 mm | 0.116 in | |
EDAC Inc. | 5 | Through Hole | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 0.125 in | 3.18 mm | 2 | Non Specified - Dual Edge | Cantilever | -40 °C | 105 ░C | Green | Solder Eyelet(s) | Polyester Thermoplastic | Flush Mount Side Opening Unthreaded | Gold | 2 | Dual | 10 | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 7.12 | |
Description
General part information
346-010 Series
10 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
