346-010-560-207

Active

EDAC Inc.

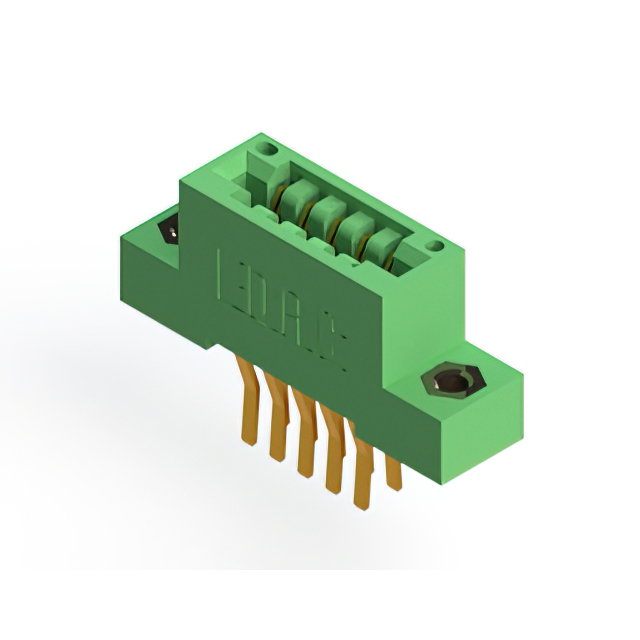

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 10 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

346-010-560-207

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 10 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Description Specifications Series Pricing CAD Documents

Description

General part information

346-010 Series

10 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green

Technical Specifications

Parameters and characteristics for this part

Specification	346-010-560-207

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	M3, Flush Mount, Top Opening, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Straddle Mount, Board Edge
Number of Positions	5, 10
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.125 in
Read Out	Dual
Termination	Solder
Termination Rows	2 rows

346-010 Series

...

Part	Number of Rows	Contact Material	Number of Positions	Contact Type	Operating Temperature (Min)	Operating Temperature (Max)	Pitch	Gender	Mounting Type	Termination	Flange Feature	Features	Contact Finish Thickness	Color	Read Out	Card Type	Contact Finish	Card Thickness (Min)	Card Thickness (Max)	Termination Rows	Material - Insulation	Flange Feature Diameter
EDAC Inc. 346-010-556-208	2	Copper Alloy	5 10	Cantilever	-40 °C	105 °C	0.125 in	Female	Board Edge Straddle Mount	Solder	4-40 Flush Mount Threaded Insert Top Opening	Card Extender	10 Ąin	Green	Dual	Dual Edge Non Specified	Gold	0.054 in	0.07 in	2 rows	Polyester Thermoplastic
EDAC Inc. 346-010-541-102	1	Copper Alloy	10	Cantilever	-40 °C	105 °C	0.125 in	Female	Through Hole	Wire Wrap	Flush Mount Top Opening Unthreaded		10 Ąin	Green	Single	Non Specified Single Edge	Gold	0.054 in	0.07 in	1 rows	Polyester Thermoplastic	0.128 in
EDAC Inc. 346-010-526-878	2	Copper Alloy	5 10	Cantilever	-40 °C	105 °C	0.125 in	Female	Through Hole	Solder	4-40 Threaded Insert Top Mount Opening	Card Guides	10 Ąin	Green	Dual	Dual Edge Non Specified	Gold	0.054 in	0.07 in	2 rows	Polyester Thermoplastic
EDAC Inc. 346-010-520-608	1	Copper Alloy	10	Cantilever	-40 °C	105 °C	0.125 in	Female	Through Hole	Solder	4-40 Threaded Insert Top Mount Opening		10 Ąin	Green	Single	Non Specified Single Edge	Gold	0.054 in	0.07 in	1 rows	Polyester Thermoplastic
EDAC Inc. 346-010-522-878	2	Copper Alloy	5 10	Cantilever	-40 °C	105 °C	0.125 in	Female	Through Hole	Solder	4-40 Threaded Insert Top Mount Opening	Card Guides	10 Ąin	Green	Dual	Dual Edge Non Specified	Gold	0.054 in	0.07 in	2 rows	Polyester Thermoplastic
EDAC Inc. 346-010-555-207	2	Copper Alloy	5 10	Cantilever	-40 °C	105 °C	0.125 in	Female	Board Edge Straddle Mount	Solder Eyelet(s)	Flush Mount M3 Threaded Insert Top Opening	Card Extender	10 Ąin	Green	Dual	Dual Edge Non Specified	Gold	0.054 in	0.07 in	2 rows	Polyester Thermoplastic
EDAC Inc. 346-010-560-207	2	Copper Alloy	5 10	Cantilever	-40 °C	105 °C	0.125 in	Female	Board Edge Straddle Mount	Solder	Flush Mount M3 Threaded Insert Top Opening	Card Extender	10 Ąin	Green	Dual	Dual Edge Non Specified	Gold	0.054 in	0.07 in	2 rows	Polyester Thermoplastic
EDAC Inc. 346-010-522-658	1	Copper Alloy	10	Cantilever	-40 °C	105 °C	0.125 in	Female	Through Hole	Solder	4-40 Threaded Insert Top Mount Opening	Card Guides	10 Ąin	Green	Single	Non Specified Single Edge	Gold	0.054 in	0.07 in	1 rows	Polyester Thermoplastic
EDAC Inc. 346-010-520-103	1	Copper Alloy	10	Cantilever	-40 °C	105 °C	0.125 in	Female	Through Hole	Solder	Floating Bobbin Flush Mount		10 Ąin	Green	Single	Non Specified Single Edge	Gold	0.054 in	0.07 in	1 rows	Polyester Thermoplastic	0.116 in
EDAC Inc. 346-010-500-212	2	Copper Alloy	5 10	Cantilever	-40 °C	105 °C	0.125 in	Female	Through Hole	Solder Eyelet(s)	Flush Mount Side Opening Unthreaded		10 Ąin	Green	Dual	Dual Edge Non Specified	Gold	0.054 in	0.07 in	2 rows	Polyester Thermoplastic	0.128 in
