3659/37 100SF
Unknown3M (TC)
CBL RIBN 37COND 0.05 BLACK 1'
Deep-Dive with AI
Search across all available documentation for this part.
3659/37 100SF
Unknown3M (TC)
CBL RIBN 37COND 0.05 BLACK 1'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3659/37 100SF |
|---|---|
| Cable Type | Round Jacket, Flat Cable |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 36 AWG |
| Features | Zippable, Splice Free |
| First Conductor Mark | Red |
| Insulation Resistance | 10 GOhm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Length | 25 ft, 1 ft, 50 ft |
| Length | 7.62 m, 304.8 mm, 15.24 m |
| Length [x] | 100 ft, 10 ft |
| Length [x] | 30.48 m, 3.05 m |
| Number of Conductors | 37 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Ribbon Width | 1.8 in |
| Ribbon Width | 45.72 mm |
| Shielding | Shielded |
| Voltage | 300 V |
| Wire Gauge | 28 AWG |
3659 Series
| Part | Length | Length | Ribbon Width [y] | Ribbon Width [y] | Wire Gauge | Jacket Color | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | First Conductor Mark | Features | Pitch [x] | Pitch [x] | Voltage | Jacket (Insulation) Material | Insulation Resistance | Conductor Material | Length [x] | Length [x] | Ribbon Width | Ribbon Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | 7.62 m 15.24 m | 25 ft 50 ft | 1.2 in | 30.48 mm | 28 AWG | Black | Flat Cable Round Jacket | 7 | 36 AWG | 25 | -20 C | 105 ░C | Shielded | Red | Splice Free Zippable | 0.05 in | 1.27 mm | 300 V | Poly-Vinyl Chloride (PVC) | 10 GOhm | Copper Tinned | ||||
3M (TC) | 7.62 m 15.24 m 304.8 mm | 1 ft 25 ft 50 ft | 28 AWG | Black | Flat Cable Round Jacket | 7 | 36 AWG | 37 | -20 C | 105 ░C | Shielded | Red | Splice Free Zippable | 0.05 in | 1.27 mm | 300 V | Poly-Vinyl Chloride (PVC) | 10 GOhm | Copper Tinned | 10 ft 100 ft | 3.05 m 30.48 m | 1.8 in | 45.72 mm | ||
3M (TC) | 304.8 mm | 1 ft | 28 AWG | Black | Flat Cable Round Jacket | 7 | 36 AWG | 16 | -20 C | 105 ░C | Shielded | Red | Zippable | 0.05 in | 1.27 mm | 300 V | Poly-Vinyl Chloride (PVC) | 10 GOhm | Copper Tinned | 100 ft | 30.48 m | 0.75 " | 19.05 mm | ||
3M (TC) | 7.62 m 304.8 mm | 1 ft 25 ft | 28 AWG | Black | Flat Cable Round Jacket | 7 | 36 AWG | 34 | -20 C | 105 ░C | Shielded | Red | Splice Free Zippable | 0.05 in | 1.27 mm | 300 V | Poly-Vinyl Chloride (PVC) | 10 GOhm | Copper Tinned | 10 ft 100 ft | 3.05 m 30.48 m | 1.65 " | 41.91 mm | ||
3M (TC) | 304.8 m | 1000 ft | 28 AWG | Black | Flat Cable Round Jacket | 7 | 36 AWG | 50 | -20 C | 105 ░C | Shielded | Red | Zippable | 0.05 in | 1.27 mm | 300 V | Poly-Vinyl Chloride (PVC) | 10 GOhm | Copper Tinned | 2.45 in | 62.23 mm | ||||
3M (TC) | 91.44 m | 300 ft | 28 AWG | Black | Flat Cable Round Jacket | 7 | 36 AWG | 20 | -20 C | 105 ░C | Shielded | Red | Splice Free Zippable | 0.05 in | 1.27 mm | 300 V | Poly-Vinyl Chloride (PVC) | 10 GOhm | Copper Tinned | 0.95 " | 24.13 mm | ||||
3M (TC) | 7.62 m 304.8 mm | 1 ft 25 ft | 28 AWG | Black | Flat Cable Round Jacket | 7 | 36 AWG | 10 | -20 C | 105 ░C | Shielded | Red | Zippable | 0.05 in | 1.27 mm | 300 V | Poly-Vinyl Chloride (PVC) | 10 GOhm | Copper Tinned | 10 ft | 3.05 m | 0.45 in | 11.43 mm | ||
3M (TC) | 15.24 m 152.4 m 304.8 m | 50 ft 1000 ft 6000 in | 28 AWG | Black | Flat Cable Round Jacket | 7 | 36 AWG | 16 | -20 C | 105 ░C | Shielded | Red | Zippable | 0.05 in | 1.27 mm | 300 V | Poly-Vinyl Chloride (PVC) | 10 GOhm | Copper Tinned | 10 ft 100 ft | 3.05 m 30.48 m | 0.75 " | 19.05 mm | ||
3M (TC) | 152.4 m | 6000 in | 28 AWG | Black | Flat Cable Round Jacket | 7 | 36 AWG | 50 | -20 C | 105 ░C | Shielded | Red | Splice Free Zippable | 0.05 in | 1.27 mm | 300 V | Poly-Vinyl Chloride (PVC) | 10 GOhm | Copper Tinned | 2.45 in | 62.23 mm | ||||
3M (TC) | 15.24 m | 50 ft | 28 AWG | Black | Flat Cable Round Jacket | 7 | 36 AWG | 9 | -20 C | 105 ░C | Shielded | Red | Splice Free Zippable | 0.05 in | 1.27 mm | 300 V | Poly-Vinyl Chloride (PVC) | 10 GOhm | Copper Tinned | 100 ft | 30.48 m | 0.402 in | 10.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 130.45 | |
| 1 | $ 61.11 | |||
| 1 | $ 230.71 | |||
| 1 | $ 9.17 | |||
| 5 | $ 7.61 | |||
| 5 | $ 50.41 | |||
| 5 | $ 107.04 | |||
| 5 | $ 188.36 | |||
| 10 | $ 98.12 | |||
| 10 | $ 7.03 | |||
| 10 | $ 172.76 | |||
| 10 | $ 46.17 | |||
| 25 | $ 152.70 | |||
| 25 | $ 41.26 | |||
| 25 | $ 86.97 | |||
| 25 | $ 6.29 | |||
| 50 | $ 5.80 | |||
| 50 | $ 37.92 | |||
| 50 | $ 148.24 | |||
| 50 | $ 79.72 | |||
| 100 | $ 74.15 | |||
| 100 | $ 34.57 | |||
| 100 | $ 5.33 | |||
| Spool | 100 | $ 3.93 | ||
| 300 | $ 3.44 | |||
| 500 | $ 3.13 | |||
| 1000 | $ 2.90 | |||
Description
General part information
3659 Series

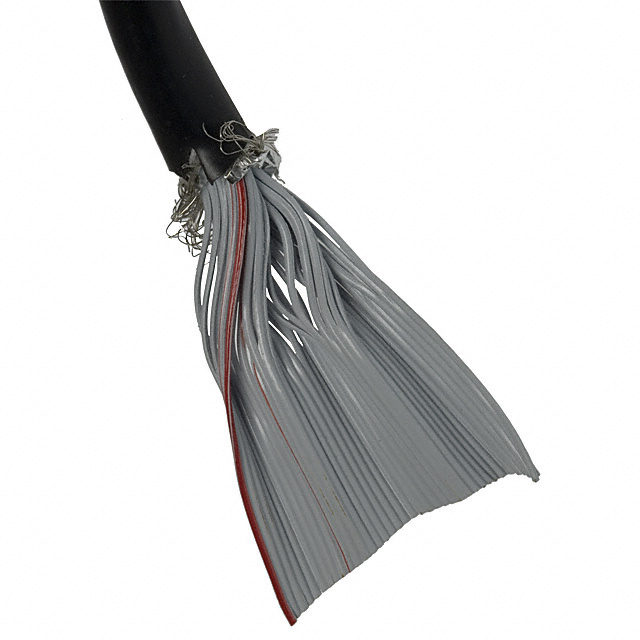

Flat Ribbon Cable Black 37 Conductors 0.050" (1.27mm) Flat Cable, Round Jacket 1.00' (304.80mm)
