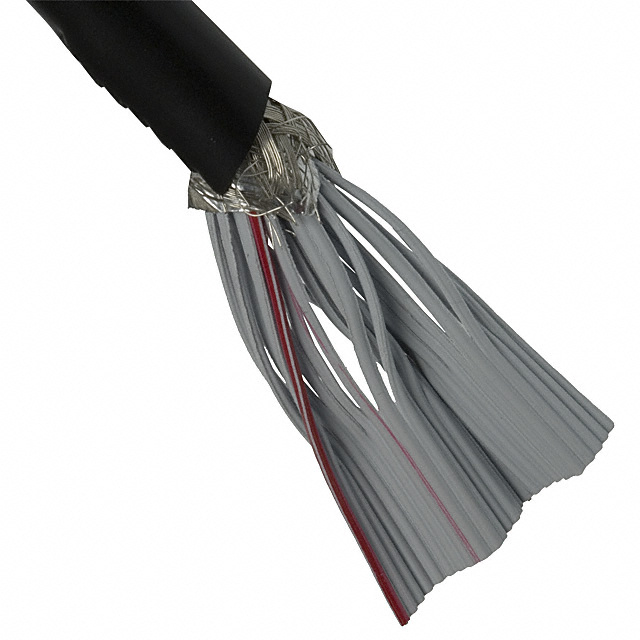

3659/25 100SF

Active

3M (TC)

CBL RIBN 25COND 0.05 BLACK 5'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3659/25 100SF

Active

3M (TC)

CBL RIBN 25COND 0.05 BLACK 5'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3659/25 100SF

Cable Type	Round Jacket, Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
Features	Zippable, Splice Free
First Conductor Mark	Red
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	15.24 m, 7.62 m
Length	50 ft, 25 ft
Number of Conductors	25
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ribbon Width [y]	1.2 in
Ribbon Width [y]	30.48 mm
Shielding	Shielded
Voltage	300 V
Wire Gauge	28 AWG

3659 Series

Part	Length	Length	Ribbon Width [y]	Ribbon Width [y]	Wire Gauge	Jacket Color	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	First Conductor Mark	Features	Pitch [x]	Pitch [x]	Voltage	Jacket (Insulation) Material	Insulation Resistance	Conductor Material	Length [x]	Length [x]	Ribbon Width	Ribbon Width
3M (TC) 3659/25 100SF	7.62 m 15.24 m	25 ft 50 ft	1.2 in	30.48 mm	28 AWG	Black	Flat Cable Round Jacket	7	36 AWG	25	-20 C	105 ░C	Shielded	Red	Splice Free Zippable	0.05 in	1.27 mm	300 V	Poly-Vinyl Chloride (PVC)	10 GOhm	Copper Tinned
3M (TC) 3659/37 100SF	7.62 m 15.24 m 304.8 mm	1 ft 25 ft 50 ft			28 AWG	Black	Flat Cable Round Jacket	7	36 AWG	37	-20 C	105 ░C	Shielded	Red	Splice Free Zippable	0.05 in	1.27 mm	300 V	Poly-Vinyl Chloride (PVC)	10 GOhm	Copper Tinned	10 ft 100 ft	3.05 m 30.48 m	1.8 in	45.72 mm
3M (TC) 3659/16 100	304.8 mm	1 ft			28 AWG	Black	Flat Cable Round Jacket	7	36 AWG	16	-20 C	105 ░C	Shielded	Red	Zippable	0.05 in	1.27 mm	300 V	Poly-Vinyl Chloride (PVC)	10 GOhm	Copper Tinned	100 ft	30.48 m	0.75 "	19.05 mm
3M (TC) 3659/34 100SF	7.62 m 304.8 mm	1 ft 25 ft			28 AWG	Black	Flat Cable Round Jacket	7	36 AWG	34	-20 C	105 ░C	Shielded	Red	Splice Free Zippable	0.05 in	1.27 mm	300 V	Poly-Vinyl Chloride (PVC)	10 GOhm	Copper Tinned	10 ft 100 ft	3.05 m 30.48 m	1.65 "	41.91 mm
3M (TC) 3659/50 1000	304.8 m	1000 ft			28 AWG	Black	Flat Cable Round Jacket	7	36 AWG	50	-20 C	105 ░C	Shielded	Red	Zippable	0.05 in	1.27 mm	300 V	Poly-Vinyl Chloride (PVC)	10 GOhm	Copper Tinned			2.45 in	62.23 mm
3M (TC) 3659/20 300SF	91.44 m	300 ft			28 AWG	Black	Flat Cable Round Jacket	7	36 AWG	20	-20 C	105 ░C	Shielded	Red	Splice Free Zippable	0.05 in	1.27 mm	300 V	Poly-Vinyl Chloride (PVC)	10 GOhm	Copper Tinned			0.95 "	24.13 mm
3M (TC) 3659/10 100	7.62 m 304.8 mm	1 ft 25 ft			28 AWG	Black	Flat Cable Round Jacket	7	36 AWG	10	-20 C	105 ░C	Shielded	Red	Zippable	0.05 in	1.27 mm	300 V	Poly-Vinyl Chloride (PVC)	10 GOhm	Copper Tinned	10 ft	3.05 m	0.45 in	11.43 mm
3M (TC) 3659/16 1000	15.24 m 152.4 m 304.8 m	50 ft 1000 ft 6000 in			28 AWG	Black	Flat Cable Round Jacket	7	36 AWG	16	-20 C	105 ░C	Shielded	Red	Zippable	0.05 in	1.27 mm	300 V	Poly-Vinyl Chloride (PVC)	10 GOhm	Copper Tinned	10 ft 100 ft	3.05 m 30.48 m	0.75 "	19.05 mm
3M (TC) 3659/50 500SF	152.4 m	6000 in			28 AWG	Black	Flat Cable Round Jacket	7	36 AWG	50	-20 C	105 ░C	Shielded	Red	Splice Free Zippable	0.05 in	1.27 mm	300 V	Poly-Vinyl Chloride (PVC)	10 GOhm	Copper Tinned			2.45 in	62.23 mm
3M (TC) 3659/09 100SF	15.24 m	50 ft			28 AWG	Black	Flat Cable Round Jacket	7	36 AWG	9	-20 C	105 ░C	Shielded	Red	Splice Free Zippable	0.05 in	1.27 mm	300 V	Poly-Vinyl Chloride (PVC)	10 GOhm	Copper Tinned	100 ft	30.48 m	0.402 in	10.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 28.13
		1	$ 109.90
		1	$ 196.57
		5	$ 160.99
		5	$ 90.32
		5	$ 23.23
		10	$ 21.36
		10	$ 147.65
		10	$ 82.75
		25	$ 73.86
		25	$ 130.75
		25	$ 19.14
		50	$ 119.19
		50	$ 67.63
		50	$ 17.54
		100	$ 61.84
		100	$ 16.11

Description

General part information

3659 Series

Flat Ribbon Cable Black 25 Conductors 0.050" (1.27mm) Flat Cable, Round Jacket 5.0' (1.52m)
