SS-114-G-21A
ActiveSamtec Inc.
SOCKET STRIPS
Deep-Dive with AI
Search across all available documentation for this part.

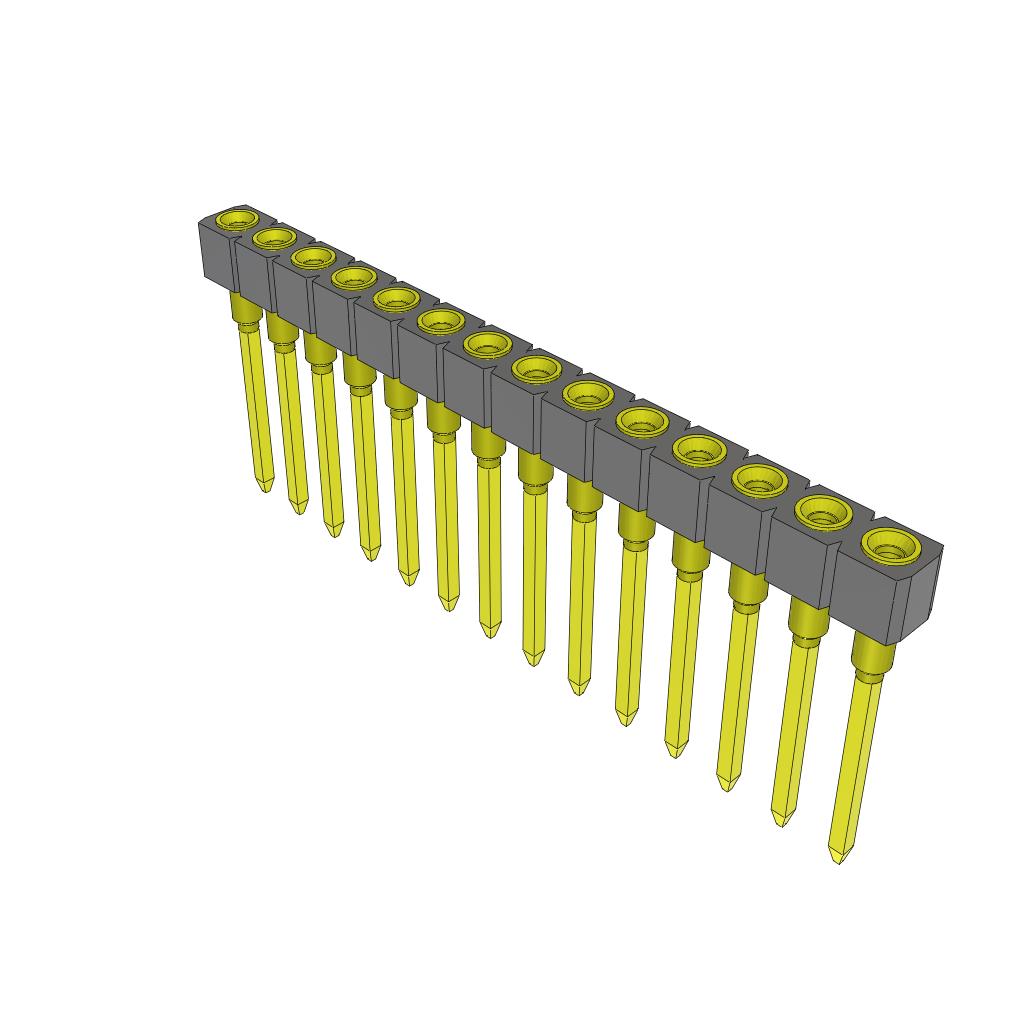

SS-114-G-21A
ActiveSamtec Inc.
SOCKET STRIPS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SS-114-G-21A |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 10 çin |
| Contact Finish Thickness - Post | 0.25 çm |
| Contact Length - Post | 9.14 mm |
| Contact Length - Post | 0.36 in |
| Contact Material | Beryllium Copper |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.1 in |
| Insulation Height | 2.54 mm |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Through Hole |
| Number of Positions | 14 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Termination | Solder |
SS-127 Series
Slide Switches SS-24E06-TG 5 (P) GA
...
| Part | Pitch - Mating | Pitch - Mating | Contact Length - Post | Contact Length - Post | Contact Finish - Mating | Insulation Material | Mounting Type | Contact Shape | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Contact Material | Fastening Type | Number of Positions Loaded | Insulation Color | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Insulation Height | Insulation Height | Contact Type | Termination | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Length - Post [x] | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | 0.1 in | 2.54 mm | 0.18 in | 4.57 mm | Gold | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Circular | Gold | 30 Áin | 0.76 Ám | Receptacle | Beryllium Copper | Push-Pull | All | Black | 1 | -55 °C | 125 °C | 12 | 0.1 in | 2.54 mm | Female Socket | Solder | 10 çin | 0.25 çm | ||
Samtec Inc. | 0.1 in | 2.54 mm | Gold | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Circular | Tin | 30 Áin | 0.76 Ám | Receptacle | Beryllium Copper | Push-Pull | All | Black | 1 | -55 °C | 125 °C | 14 | 0.1 in | 2.54 mm | Female Socket | Solder | 3.18 mm | 0.125 in | ||||
Samtec Inc. | 0.1 in | 2.54 mm | Gold | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Circular | Gold | 30 Áin | 0.76 Ám | Receptacle | Beryllium Copper | Push-Pull | All | Black | 1 | -55 °C | 125 °C | 27 | 0.1 in | 2.54 mm | Female Socket | Solder | 10 çin | 0.25 çm | 3.12 mm | 0.123 in | ||
Samtec Inc. | 0.1 in | 2.54 mm | Gold | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Circular | Gold | 30 Áin | 0.76 Ám | Receptacle | Beryllium Copper | Push-Pull | All | Black | 1 | -55 °C | 125 °C | 18 | 0.1 in | 2.54 mm | Female Socket | Solder | 10 çin | 0.25 çm | 6.6 mm | 0.26 in | ||
Samtec Inc. | 0.1 in | 2.54 mm | Gold | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Circular | Tin | 30 Áin | 0.76 Ám | Receptacle | Beryllium Copper | Push-Pull | All | Black | 1 | -55 °C | 125 °C | 28 | 0.1 in | 2.54 mm | Female Socket | Solder | 6.6 mm | 0.26 in | ||||
Samtec Inc. | 0.1 in | 2.54 mm | 0.36 in | 9.14 mm | Gold | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Circular | Gold | 30 Áin | 0.76 Ám | Receptacle | Beryllium Copper | Push-Pull | All | Black | 1 | -55 °C | 125 °C | 14 | 0.1 in | 2.54 mm | Female Socket | Solder | 10 çin | 0.25 çm | ||
Samtec Inc. | 0.1 in | 2.54 mm | 0.51 in | 12.95 mm | Gold | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Circular | Gold | 30 Áin | 0.76 Ám | Receptacle | Beryllium Copper | Push-Pull | All | Black | 1 | -55 °C | 125 °C | 12 | 0.1 in | 2.54 mm | Female Socket | Solder | 10 çin | 0.25 çm | ||
Samtec Inc. | 0.1 in | 2.54 mm | Gold | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Circular | Gold | 30 Áin | 0.76 Ám | Receptacle | Beryllium Copper | Push-Pull | All | Black | 1 | -55 °C | 125 °C | 18 | 0.1 in | 2.54 mm | Female Socket | Solder | 10 çin | 0.25 çm | 3.12 mm | 0.123 in | ||
Samtec Inc. | Gold | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Circular | Gold | 30 Áin | 0.76 Ám | Receptacle | Beryllium Copper | Push-Pull | All | Black | 1 | -55 °C | 125 °C | 1 | 0.1 in | 2.54 mm | Female Socket | Solder | 10 çin | 0.25 çm | ||||||
Samtec Inc. | 0.1 in | 2.54 mm | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Circular | Tin | Receptacle | Beryllium Copper | Push-Pull | All | Black | 1 | -55 °C | 125 °C | 22 positions | 0.1 in | 2.54 mm | Female Socket | Solder | 3.18 mm | 0.125 in |
