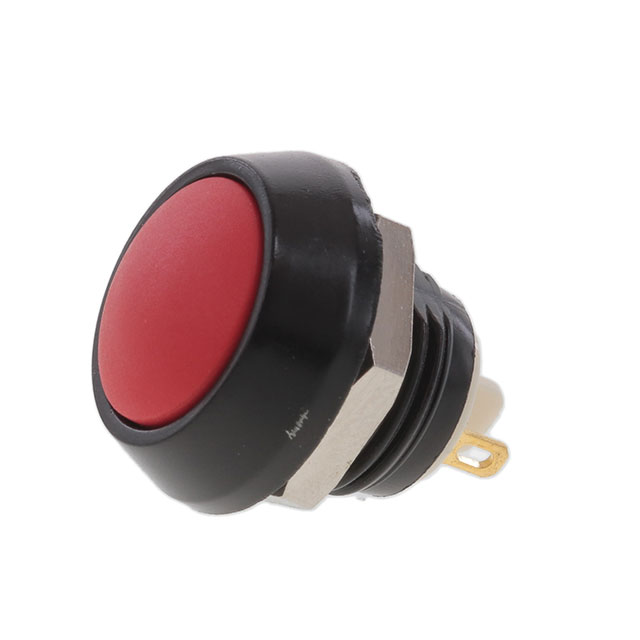

PV5S24019
ActiveE-Switch
SWITCH PUSH SPST-NO 2A 36V
Deep-Dive with AI
Search across all available documentation for this part.
PV5S24019
ActiveE-Switch
SWITCH PUSH SPST-NO 2A 36V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PV5S24019 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Domed, Round, Button |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 2 A |
| Electrical Life | 200000 Cycles |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 12 mm |
| Switch Function | Off-Mom |
| Termination Style | Solder Lug |
| Type | Anti-Vandal |
| Voltage Rating - DC | 36 VDC |
PV5S Series
| Part | Current Rating (Amps) | Mounting Type | Electrical Life | Type | Actuator Type | Switch Function | Actuator Marking | Color - Actuator/Cap | Circuit | Panel Cutout Dimensions [diameter] | Ingress Protection | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Mechanical Life | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
E-Switch | 2 A | Panel Mount Front | 200000 Cycles | Anti-Vandal | Button Domed Round | Off-Mom | No Marking | Yellow | SPST-NO | 12 mm | IP65 - Dust Tight Water Resistant | Screw Terminal | -20 C | 70 °C | 1000000 Cycles | 36 VDC |
E-Switch | 2 A | Panel Mount Front | 200000 Cycles | Anti-Vandal | Button Domed Round | Off-Mom | No Marking | Red | SPST-NO | 12 mm | IP65 - Dust Tight Water Resistant | Solder Lug | -20 C | 70 °C | 1000000 Cycles | 36 VDC |
E-Switch | 2 A | Panel Mount Front | 200000 Cycles | Anti-Vandal | Button Domed Round | Off-Mom | No Marking | Yellow | SPST-NO | 12 mm | IP65 - Dust Tight Water Resistant | Solder Lug | -20 C | 70 °C | 1000000 Cycles | 36 VDC |
E-Switch | 2 A | Panel Mount Front | 200000 Cycles | Anti-Vandal | Button Domed Round | Off-Mom | No Marking | Black | SPST-NO | 12 mm | IP65 - Dust Tight Water Resistant | Solder Lug | -20 C | 70 °C | 1000000 Cycles | 36 VDC |
E-Switch | 2 A | Panel Mount Front | 200000 Cycles | Anti-Vandal | Button Domed Round | Off-Mom | No Marking | White | SPST-NO | 12 mm | IP65 - Dust Tight Water Resistant | Screw Terminal | -20 C | 70 °C | 1000000 Cycles | 36 VDC |
E-Switch | 2 A | Panel Mount Front | 200000 Cycles | Anti-Vandal | Button Domed Round | Off-Mom | No Marking | White | SPST-NO | 12 mm | IP65 - Dust Tight Water Resistant | Screw Terminal | -20 C | 70 °C | 1000000 Cycles | 36 VDC |
E-Switch | 2 A | Panel Mount Front | 200000 Cycles | Anti-Vandal | Button Domed Round | Off-Mom | No Marking | Black | SPST-NO | 12 mm | IP65 - Dust Tight Water Resistant | Screw Terminal | -20 C | 70 °C | 1000000 Cycles | 36 VDC |
E-Switch | 2 A | Panel Mount Front | 200000 Cycles | Anti-Vandal | Button Domed Round | Off-Mom | No Marking | Black | SPST-NO | 12 mm | IP65 - Dust Tight Water Resistant | Solder Lug | -20 C | 70 °C | 1000000 Cycles | 36 VDC |
E-Switch | 2 A | Panel Mount Front | 200000 Cycles | Anti-Vandal | Button Domed Round | Off-Mom | No Marking | Silver | SPST-NO | 12 mm | IP65 - Dust Tight Water Resistant | Screw Terminal | -20 C | 70 °C | 1000000 Cycles | 36 VDC |
E-Switch | 2 A | Panel Mount Front | 200000 Cycles | Anti-Vandal | Button Domed Round | Off-Mom | No Marking | Red | SPST-NO | 12 mm | IP65 - Dust Tight Water Resistant | Screw Terminal | -20 C | 70 °C | 1000000 Cycles | 36 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.22 | |
| 10 | $ 4.65 | |||
| 25 | $ 4.40 | |||
| 50 | $ 4.25 | |||
| 100 | $ 4.04 | |||
| 250 | $ 3.86 | |||
| 500 | $ 3.52 | |||
| 1000 | $ 3.34 | |||
Description
General part information
PV5S Series
Pushbutton Switch SPST-NO Anti-Vandal Panel Mount, Front
Documents
Technical documentation and resources
No documents available
