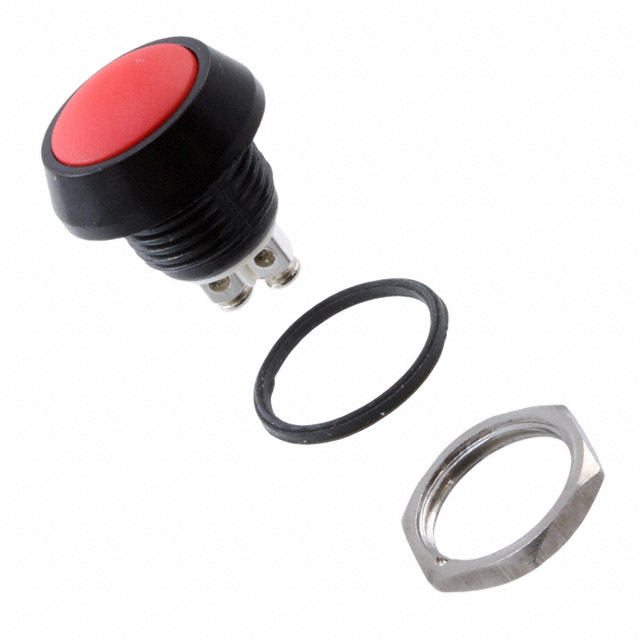

PV5S64019

Active

E-Switch

SWITCH PUSH SPST-NO 2A 36V

Deep-Dive with AI

Search across all available documentation for this part.

PV5S64019

Active

E-Switch

SWITCH PUSH SPST-NO 2A 36V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PV5S64019

Actuator Marking	No Marking
Actuator Type	Domed, Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Red
Current Rating (Amps)	2 A
Electrical Life	200000 Cycles
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	12 mm
Switch Function	Off-Mom
Termination Style	Screw Terminal
Type	Anti-Vandal
Voltage Rating - DC	36 VDC

PV5S Series

Part	Current Rating (Amps)	Mounting Type	Electrical Life	Type	Actuator Type	Switch Function	Actuator Marking	Color - Actuator/Cap	Circuit	Panel Cutout Dimensions [diameter]	Ingress Protection	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Voltage Rating - DC
E-Switch PV5S64016	2 A	Panel Mount Front	200000 Cycles	Anti-Vandal	Button Domed Round	Off-Mom	No Marking	Yellow	SPST-NO	12 mm	IP65 - Dust Tight Water Resistant	Screw Terminal	-20 C	70 °C	1000000 Cycles	36 VDC
E-Switch PV5S24019	2 A	Panel Mount Front	200000 Cycles	Anti-Vandal	Button Domed Round	Off-Mom	No Marking	Red	SPST-NO	12 mm	IP65 - Dust Tight Water Resistant	Solder Lug	-20 C	70 °C	1000000 Cycles	36 VDC
E-Switch PV5S24016	2 A	Panel Mount Front	200000 Cycles	Anti-Vandal	Button Domed Round	Off-Mom	No Marking	Yellow	SPST-NO	12 mm	IP65 - Dust Tight Water Resistant	Solder Lug	-20 C	70 °C	1000000 Cycles	36 VDC
E-Switch PV5S24011	2 A	Panel Mount Front	200000 Cycles	Anti-Vandal	Button Domed Round	Off-Mom	No Marking	Black	SPST-NO	12 mm	IP65 - Dust Tight Water Resistant	Solder Lug	-20 C	70 °C	1000000 Cycles	36 VDC
E-Switch PV5S64012	2 A	Panel Mount Front	200000 Cycles	Anti-Vandal	Button Domed Round	Off-Mom	No Marking	White	SPST-NO	12 mm	IP65 - Dust Tight Water Resistant	Screw Terminal	-20 C	70 °C	1000000 Cycles	36 VDC
E-Switch PV5S64012G	2 A	Panel Mount Front	200000 Cycles	Anti-Vandal	Button Domed Round	Off-Mom	No Marking	White	SPST-NO	12 mm	IP65 - Dust Tight Water Resistant	Screw Terminal	-20 C	70 °C	1000000 Cycles	36 VDC
E-Switch PV5S64011	2 A	Panel Mount Front	200000 Cycles	Anti-Vandal	Button Domed Round	Off-Mom	No Marking	Black	SPST-NO	12 mm	IP65 - Dust Tight Water Resistant	Screw Terminal	-20 C	70 °C	1000000 Cycles	36 VDC
E-Switch PV5S24011G	2 A	Panel Mount Front	200000 Cycles	Anti-Vandal	Button Domed Round	Off-Mom	No Marking	Black	SPST-NO	12 mm	IP65 - Dust Tight Water Resistant	Solder Lug	-20 C	70 °C	1000000 Cycles	36 VDC
E-Switch PV5S640NN	2 A	Panel Mount Front	200000 Cycles	Anti-Vandal	Button Domed Round	Off-Mom	No Marking	Silver	SPST-NO	12 mm	IP65 - Dust Tight Water Resistant	Screw Terminal	-20 C	70 °C	1000000 Cycles	36 VDC
E-Switch PV5S64019	2 A	Panel Mount Front	200000 Cycles	Anti-Vandal	Button Domed Round	Off-Mom	No Marking	Red	SPST-NO	12 mm	IP65 - Dust Tight Water Resistant	Screw Terminal	-20 C	70 °C	1000000 Cycles	36 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.83
		10	$ 5.25
		25	$ 4.99
		50	$ 4.78
		100	$ 4.62
		250	$ 4.39
		500	$ 4.04
		1000	$ 3.86

Description

General part information

PV5S Series

Pushbutton Switch SPST-NO Anti-Vandal Panel Mount, Front
