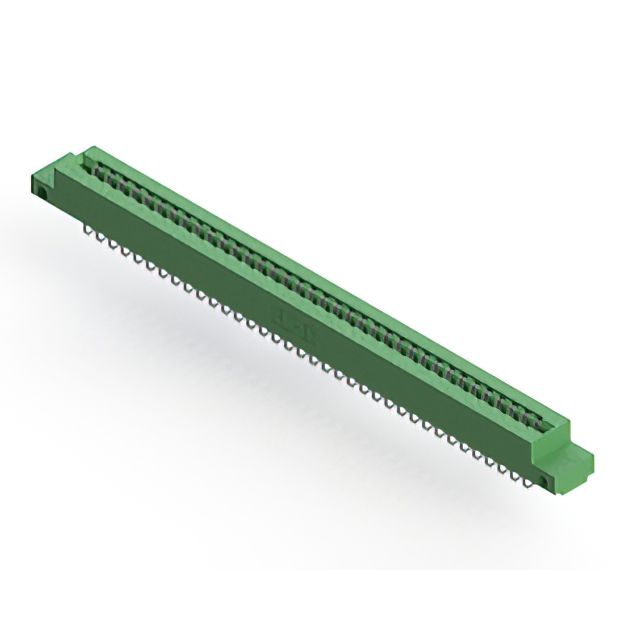

807-036-459-112

Active

EDAC Inc.

CONN EDGE SGL FML 36POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

807-036-459-112

Active

EDAC Inc.

CONN EDGE SGL FML 36POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	807-036-459-112

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Side Mount Opening, Unthreaded
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Right Angle
Number of Positions	36
Number of Positions/Bay/Row [custom]	36
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

807-036 Series

...

Part	Contact Type	Read Out	Number of Rows	Pitch [x]	Pitch [x]	Flange Feature	Mounting Type	Number of Positions/Bay/Row [custom]	Contact Finish	Card Type	Termination Rows	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Termination	Contact Material	Material - Insulation	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Gender	Color	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Flange Feature	Features
EDAC Inc. 807-036-401-107	Semi Bellows	Dual	2	0.156 in	3.96 mm	Flush Mount M3 Threaded Insert Top Opening	Through Hole	36	Tin	Non Specified - Dual Edge	1	125 °C	-40 °C	72	Solder Eyelet(s)	Copper Alloy	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Green
EDAC Inc. 807-036-401-101	Semi Bellows	Dual	2	0.156 in	3.96 mm		Through Hole	36	Tin	Non Specified - Dual Edge	1	125 °C	-40 °C	72	Solder Eyelet(s)	Copper Alloy	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Green
EDAC Inc. 807-036-527-102	Semi Bellows	Single	1	0.156 in	3.96 mm	Flush Mount Top Opening Unthreaded	Through Hole	36	Gold	Non Specified - Single Edge	1	125 °C	-40 °C	36	Solder	Copper Alloy	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Green	3.25 mm	0.128 "	10 Áin	0.25 Ám
EDAC Inc. 807-036-559-207	Semi Bellows	Single	2	0.156 in	3.96 mm	Flush Mount M3 Threaded Insert Top Opening	Through Hole Right Angle	18	Gold	Non Specified - Dual Edge	2	125 °C	-40 °C	36	Solder	Copper Alloy	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Green			10 Áin	0.25 Ám
EDAC Inc. 807-036-422-201	Semi Bellows	Dual	2	0.156 in	3.96 mm		Through Hole	18	Tin	Non Specified - Dual Edge	2	125 °C	-40 °C	36	Solder	Copper Alloy	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Green
EDAC Inc. 807-036-459-212	Semi Bellows	Single	2	0.156 in	3.96 mm	Side Mount Opening Unthreaded	Through Hole Right Angle	18	Tin	Non Specified - Dual Edge	2	125 °C	-40 °C	36	Solder	Copper Alloy	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Green					3.25 mm	0.128 in
EDAC Inc. 807-036-424-212	Semi Bellows	Dual	2	0.156 in	3.96 mm	Side Mount Opening Unthreaded	Through Hole	18	Tin	Non Specified - Dual Edge	2	125 °C	-40 °C	36	Solder	Copper Alloy	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Green					3.25 mm	0.128 in
EDAC Inc. 807-036-555-204	Semi Bellows	Dual	2	0.156 in	3.96 mm	Flush Mount Top Opening Unthreaded	Board Edge Straddle Mount	18	Gold	Non Specified - Dual Edge	2	125 °C	-40 °C	36	Solder	Copper Alloy	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Green	3.96 mm	0.156 in	10 Áin	0.25 Ám			Card Extender
EDAC Inc. 807-036-541-102	Semi Bellows	Dual	2	0.156 in	3.96 mm	Flush Mount Top Opening Unthreaded	Through Hole	36	Gold	Non Specified - Dual Edge	1	125 °C	-40 °C	72	Wire Wrap	Copper Alloy	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Green	3.25 mm	0.128 "	10 Áin	0.25 Ám
EDAC Inc. 807-036-459-112	Semi Bellows	Single	1	0.156 in	3.96 mm	Side Mount Opening Unthreaded	Through Hole Right Angle	36	Tin	Non Specified - Single Edge	1	125 °C	-40 °C	36	Solder	Copper Alloy	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Green					3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 145.67

Description

General part information

807-036 Series

36 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Green
